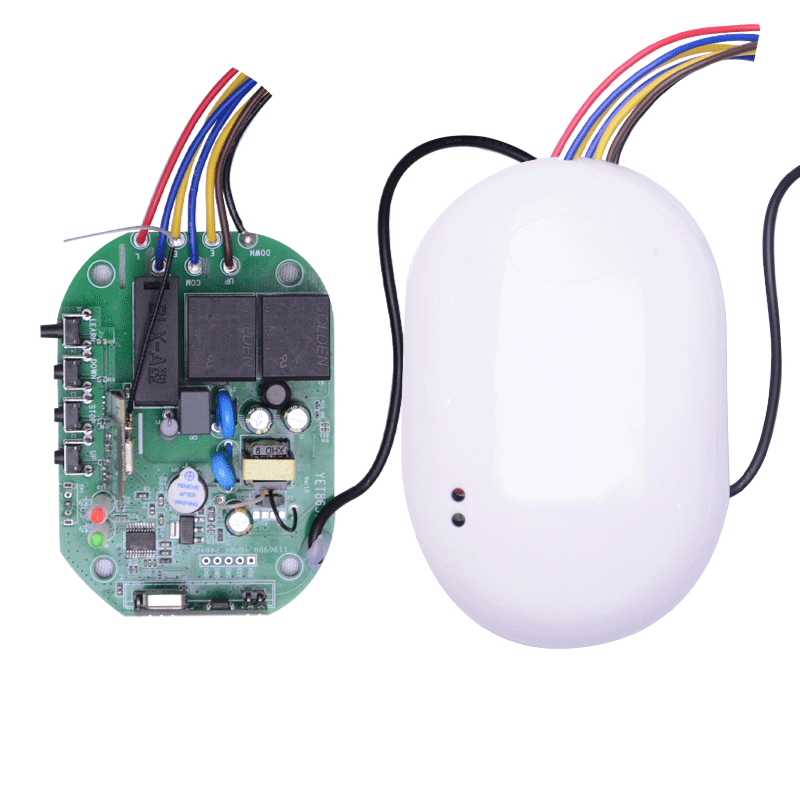

YET863WTR Tuya wifi Rolling shutter controller for tubular motor
YET863WTR is the tubular motor controller designed and produced by YET factory , this kind of wireless receiving control is high stable characteristics, low power consume and very convenient, and it can match with learning code remote control.
Features:
RF 433.92Mhz +Tuya WIFI 2.4G;
External switch;
Register remote with 2 ways： Power ON/OFF & learning button.
Main technical data:
Working voltage is wide range type,it is from 100VAC to 240VAC.
The contact current iis≤NO/NC:10A @250VAC.
Motor type is AC motor 100V AC/220V AC.
Motor power should be ≤800W @220VAC.
Receive sensitivity is≤-110dBm.
Working voltage is 433.92Mhz.
It can store 50pcs remote control.
Distance in open area is >80M.
Working Temp is from -10℃ to +60℃.
Its dimension is 109mmⅹ73mmⅹ44mm.
Function introduction:
Register and Deleting Remote control
Register/Add remote:
- Press the UP & STOP button (>1s) at the same time when power ON, you will hear beep-beep-beep and the red LED will flash simultaneous, it means register the remote control success.
- Short press the learning button on the controller, RED LED will on then off, now enter into the learning mode; press any button on the remote control, you will hear beep-beep-beep and the red LED will flash simultaneous, it means register the remote control success.
- Press the UP & DOWN button (>1s) at the same time when power ON, you will hear beep-beep-beep and the red LED will flash simultaneous, it means deleting all the remote controls.
- Long press the learning code on the controller till RED LED Turns on then off, it means deleting all the remote controls.
(Note： if deleting all information success, all the stored information will be cleared, running time will be 240S and the motor direction will be same out of factory)
Remote control function:
Press UP button, open the curtain/shutter;
Press DOWN button, close the curtain/shutter;
Press STOP button, the controller stop working.
Switch the motor direction
Press the UP+DOWN+STOP button (>3s) of the registered remote control at the same time when power ON, you will hear beep-beep-beep and the red LED will flash 3times simultaneous, it means change the motor working directio.
Mobile internet connecting
Searching “TUYA” from your mobile App store and Download and Register
Login the Tuya App
Connecting the WIFI
- By Power ON: When the power on, you should Press the STOP+DOWN button (>3s) of the registered remote control within 3s., you will hear beep-beep-beep and the red LED will flash 3times simultaneous, now the device is searching WIFI;
- By learning button: short press the learning button 3 times, green led flash quickly and now is for searching WIFI.
Green LED quick flash sustainability and it means the device are ready for connect WIFI Click the “add device” or “+” on the APP page, you will see the Enter Wi-Fi Information page.
Write down the WIFI name ( SSID) and put the password, click “Next”, you will find the device.
Click “Add”, now is connecting ; you will see device being added.
Click “Done”，then success for add the device, you will see the device on your main page.
Okay,above are some of the YET863WTR controller details,if you are interested in this Tuya wifi controller,please do not hesitate to contact us to get more information or to place an order.
