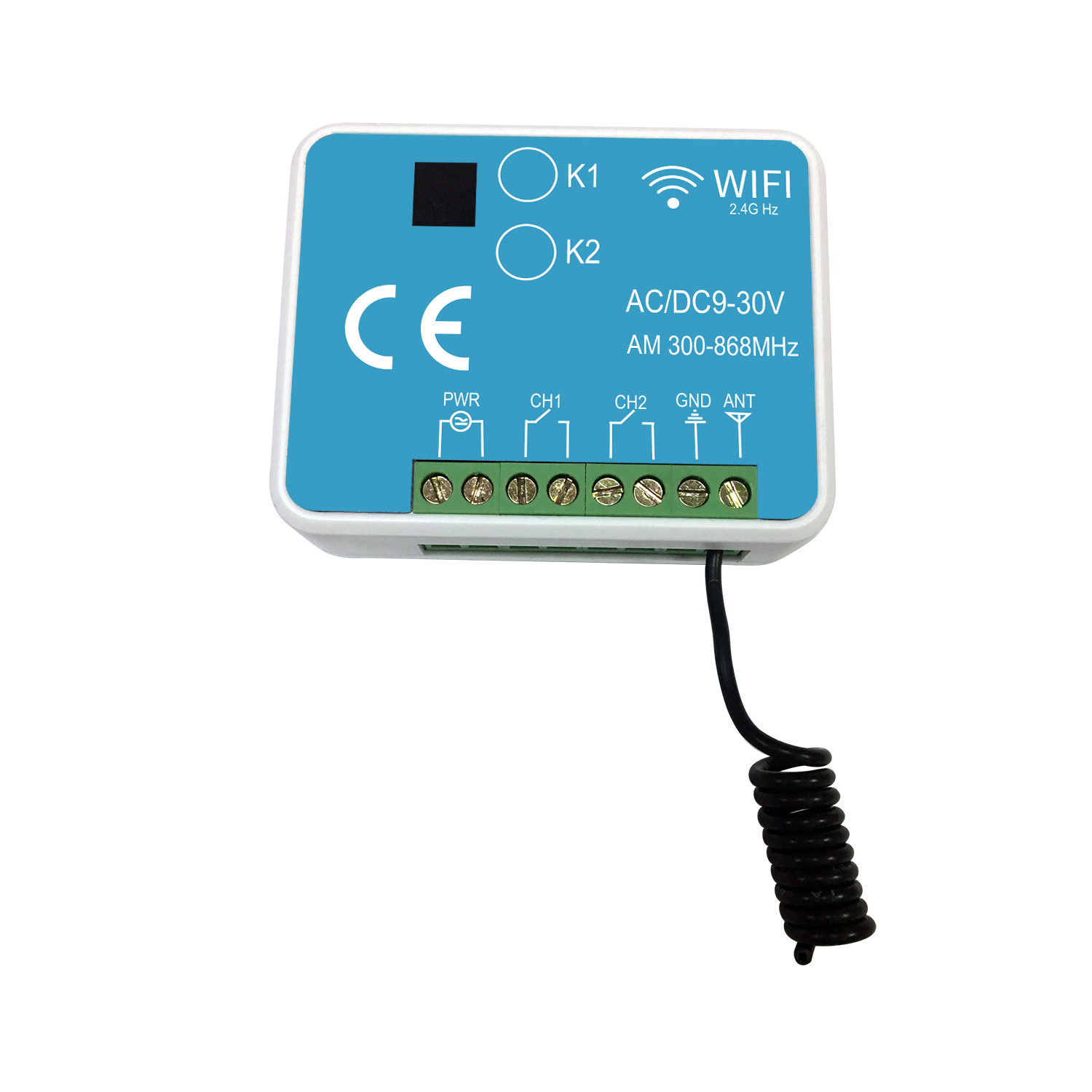

YET402WFR-MF-V3.0 Universal RX WiFi Receiver

402WFR-MF-V3.0 is 2 channel universal WiFi receiver, multi frequency 280-868mhz.

Working volts is AC/DC12-30V. It can work with fixed code remote,learning code remote and some rolling code remote. Compatible with 18 brands. The multi-frequency controller has two independent output channels, each channel has independent learning buttons K1, K2. Using the 8-bit DIP switch, users can select different brands of remote control channels, and the brand selection is shown in Table 1.

How to let the remote learn or clear all remote control commands?

1. First of all, choose the right remote control brand, and it will be entered through the DIP switch.
2. Press the learning button and the LED turns on. Press the button on the remote control, the LED flashes 2 times, and this button successfully enters the RX-Multi.
3. Repeat step 2 for the other button.
4. 2 channels are jogging working state. Clear all data from memory card: Press and hold the learning button and the LED starts to light up. Keep holding this button, Until the LED indicator goes off.All data from the memory card will be permanently deleted.
