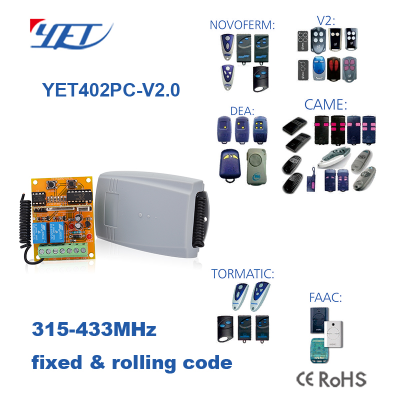

YET402PC-v2.0

Radio controllers play a key role in the barrier system, achieving remote control, automated management and safety protection through wireless communication technology, and are widely used in parking lots, residential areas, toll stations and other scenarios.

The following are its core applications and technical highlights:

1. Core functions

Remote switch control:

Trigger the gate lift through wireless signals (such as RF, Bluetooth, Wi-Fi or 4G/5G), replacing the traditional manual or wired control methods to improve efficiency.

Vehicle identification and authority management:

Linked with the license plate recognition system or IC card, automatically release after verifying the authority, supporting differentiated control of fixed users (such as owners) or temporary vehicles (such as visitors).

Multi-device collaboration:

Multiple gates can be managed at the same time, suitable for multi-lane or large parking lots, and support centralized scheduling.

2. Typical application scenarios

Smart parking lot:

The car owner triggers the gate through the remote control or mobile phone APP, and combines the ground sensor coil to prevent misoperation (such as prohibiting the gate from falling when the car has not left).

Pay parking lot can be connected to the payment system, and the gate will open automatically after payment.

Community/park access control:

Residents use wireless key fobs or Bluetooth to authorize passage, and foreign vehicles need to register and temporarily authorize.

Anti-tailgating design: prevent the following car from intruding through delayed gate drop or secondary verification.

Highway ETC:

The radio controller is combined with RFID technology to achieve fast passage without stopping.

3. Technical implementation method

1.Input voltage: 9~24V AC/DC;

2.Working current: ≦ 10mA;

3.Working frequency: 433.92MHz;

4.Working environment: temperature -20°C ~ +70°C; humidity 20% ~ 93%;

5.Storage environment: temperature -30°C ~ +80°C; humidity 20% ~ 93%;

6.Decoding type: learning code, fixed code, rolling code;

7.Remote control capacity: 400 buttons;

8.Receiving distance: ≥ 100 meters.
