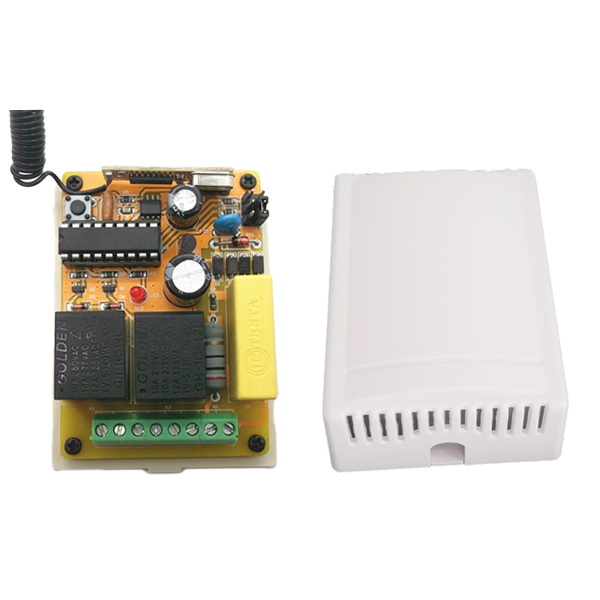

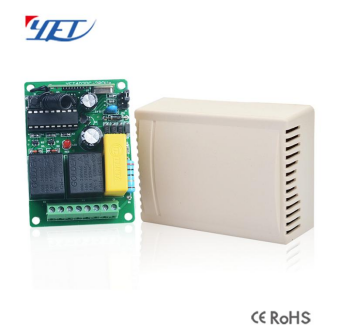

YET402PC-220V Two-channel wireless intelligent receiver controller

Introduction

YET402PC-220V(two-channel wireless intelligent receiving controller) produced by our company can output switching signals for two relays, which can make the equipment to be controlled reach the positive and reverse of the motor; Or switch on, off conversion and various special control program requirements. Mainly used in electric doors, Windows, lifting equipment, gate, elevator, industrial control and security industry and other fields.

The wireless receiving controller has the characteristics of high confidentiality, large storage capacity, stable performance and low power consumption, and is convenient to use, without the use of traditional jumper or dip switch coding, only the wireless signal transmitted by the remote control is received and stored by the receiving controller, which can be used together. If the learned remote control is lost in the process of use, just clear the information stored in the receiving controller, the lost remote control will not be able to remote control the receiving controller, to regain the right to use, must be re-learned by the owner.

The way of output

A. Signal keeps 3 seconds-- “1” connect

B. Signal Toggle    -- “2” connect

C. Signal Latched   -- “3” connect

D. Signal momentary--disconnect

（check the Circuit diagram for details）

Product features introduction

1. The product is a two-channel wireless receiving control, the output mode is the relay dry contact mode, mainly used for switching signal control applications.

2. The product can solve the standard 301 roll code, learning code, fixed code, stable performance, easy to use.

3. There are four output modes: self-locking, point action, interlocking, delay 3 seconds.

Main Technique Data
