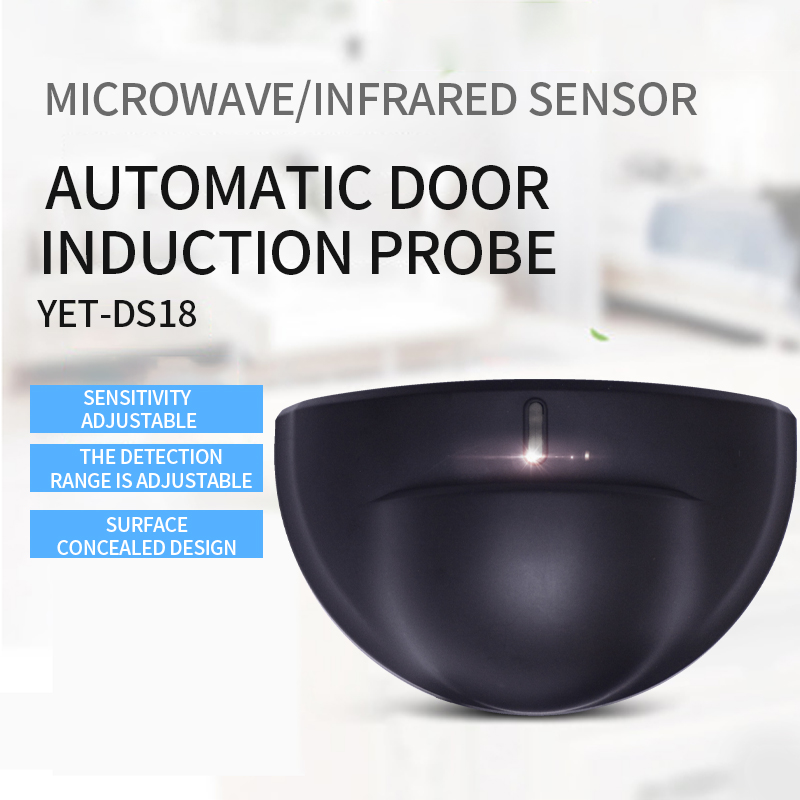

YET-DS18 Microwave Radar Sensor Exit Infrared Detector

Description:
When walk close to door, it will detect person and trigger to open lock automatically. High-sensitivity, quick and accurate response.Specially apply in commercial, industrial and demanding of automatic access area.

Features:
Microwave Sensor with Frequency of 24-24.25GHz Max
Mounting Angle: 0 to 90 degree (vertically) or -30 to +30 degree (horizontally)
Detetion Time: 2 seconds
Detection Area: 2.6meter height, 4m(W)x2m(D)
Detection Mode: movement
Connection Voltage: AC9-24V, DC12-30V

Installation of sensors:

1) Connect the cable to the corresponding terminal of the automatic door

a) Pins 1 and 2 ( brown and green ) are power inputs (DC: 12-30V AC: 9- 24V).

b) Pins 3 and 4 (white and yellow) are signal outputs (COM, NO).

2) Remove the outer cover and secure the base with the screws

3) Connecting the cable terminals to the inductor

4) Connect power to the sensor and the sensor's indicator light flashes five times

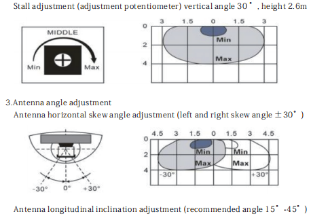

5) Adjustment of sensitivity potentiometer and sensing angle (left/right declination and longitudinal inclination)

6) Close the cover and perform a test to verify, if not, repeat step 5 until the sensing range is appropriate.

Package including:
1 x Automatic Doors Motion Sensor(Black or Silver)
1 x Cable
2 x Mounting Screws
1 x English User Manual
