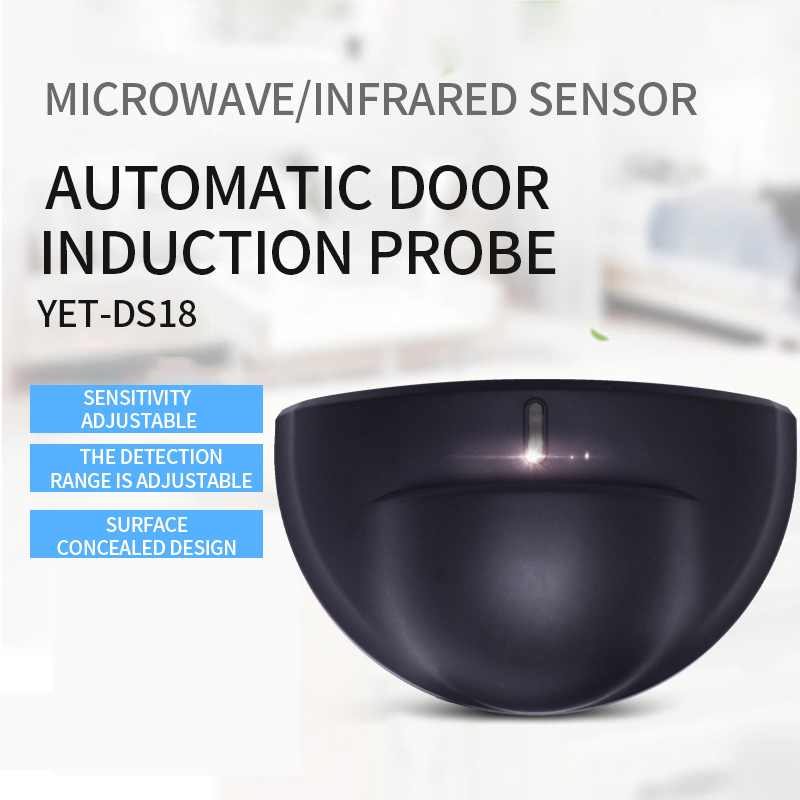

YET DS18 AC DC12-24V Microwave motion radar sensor for Automatic doors

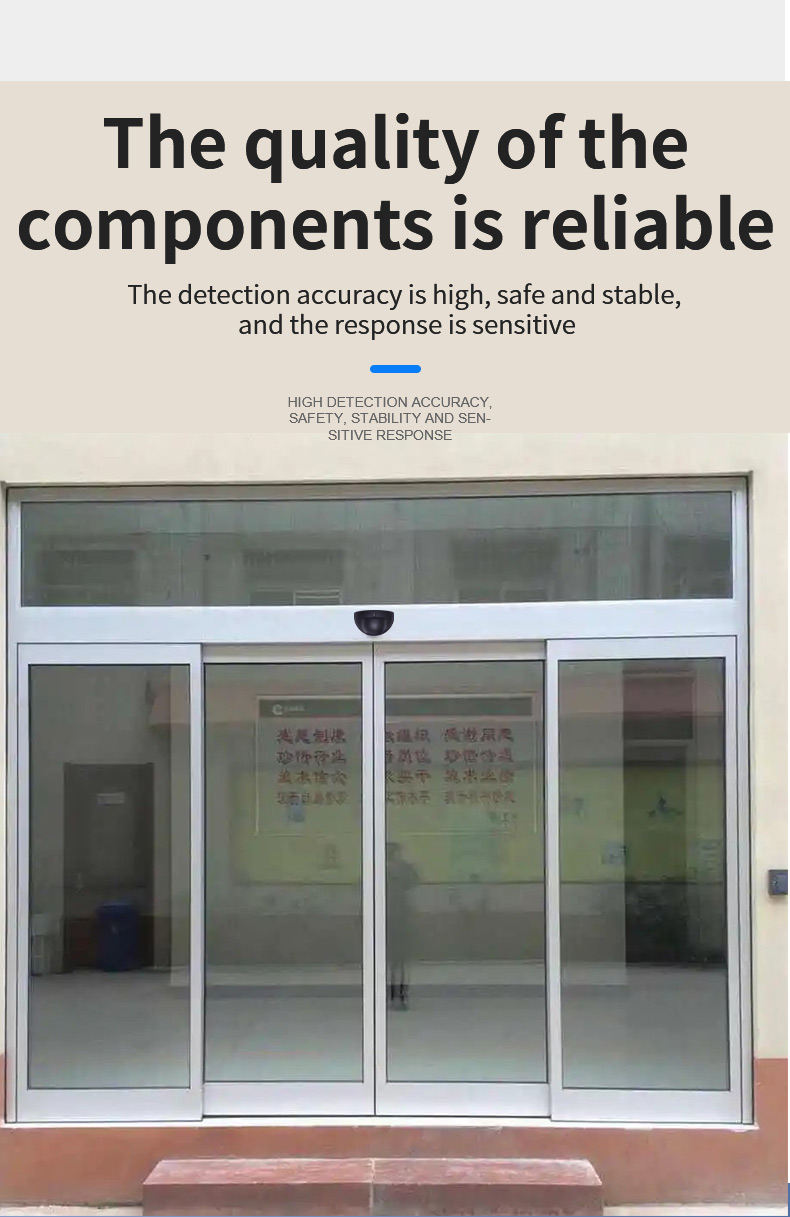

Application: for all types of automatic doors in shopping mall,office building, hotel,airports etc.

Specifications:

1) Work voltage: DC(12-30V) /AC(9- 24V)

2) Work frequency: 24.00~24.25GHz

3) Antenna detection angle: 150°(horizontal direction) / 70°(pitching direction)

4) Installation height: ≤4m

5) Detection range: wide@4m / deep@2m (Installation height 2.6m)

6) Minimum detection speed: 5cm/s (along the longitudinal axis of the sensor)

7) Detection mode: bidirectional motion

8) Shell color: Black/Silver (optional)

9) Working temperature: -20 ℃ -55 ℃

10) Product dimensions: 120mm (width) x 80mm (height) x 50mm (depth)

Features:

• [Door Motion Sensor Security Wide Sensing Range]: Our sensor and auto door motion sensor can adjust the sensor detection area in four directions (left, right, up and down); Door sensor and automatic door sensor is reliable and safe, which can accurately detect pedestrians to open and close the door.
• [Door Opening Sensor Easy to Operate and Install]: Our motion sensors and request to exit pir motion sensor are easy to install and can be successfully installed in just a few simple steps; The automatic sensor and door exit motion sensor won't take much time.
• [High Performance]: When walk close to door, the universal microwave sensor and door opening sensor for business will detect person and trigger to open lock automatically; High-sensitivity, quick and accurate response; motion sensor for door opening and motion sensor for door exit specially apply in commercial, industrial and demanding of automatic access area.
