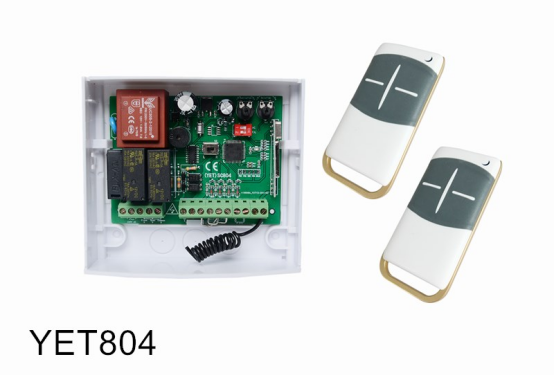

Universal RF 433mhz Control Board for rolling shutter switch controller

I. Features:

1. Remote control : 433M chipset 1527

2. Auto close delay time: 5-120S

3. running/ Journey time: 0-120s

4. hand switch: open-close-stop-open-close.. recycle

5. Photocell: auto open after checked some resistance

6. Momentary mode when close , you can choose if you want this function via the

DIP switch 2 ( ON : momentary mode open)

II. Tech data:

1.Working voltage : 220V AC

2.Output voltage: 220V AC

3.Working Freuqency: 433.92Mhz

4.Max running time: 120s

5.Memory: 30 pcs remote control

6.Controller provides a +12V DC power putput terminal VCC, All signal input is 5V.

Advantages: High security, stable performance, low power consumption and easy installation, plug and play, easy to use, safe and reliable.

Rotary switch function:

1. RJ1: running time setting with a range 0-120s; add time with the direction of clockwise otherwise to reduce the time.

2. Rj2: Auto-close delay time setting with a range 5-120s; add time with the direction of clockwise otherwise to reduce the time.
