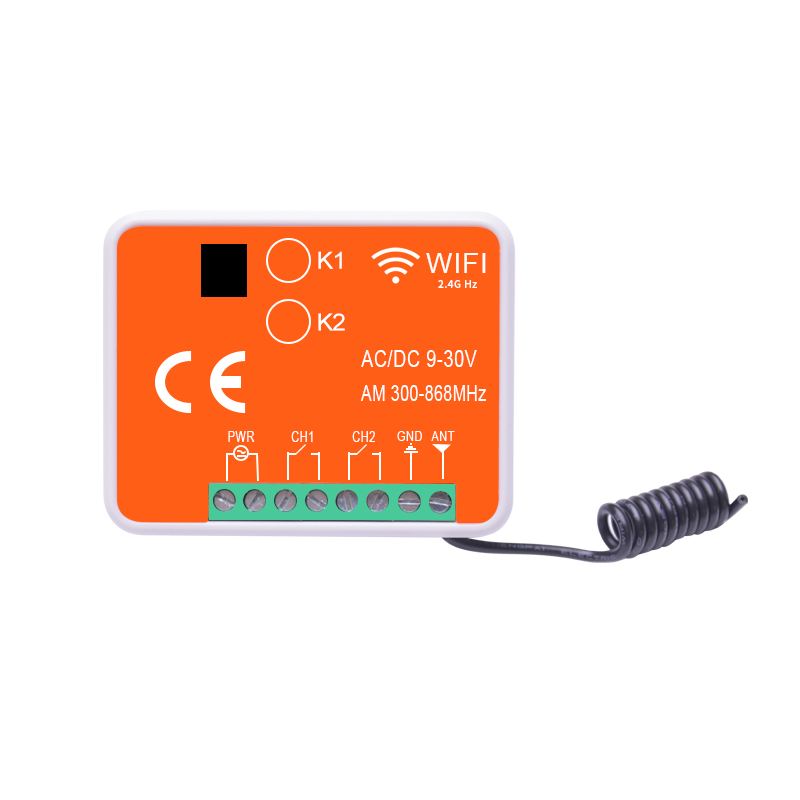

Tuya APP 300mhz-868MHz 2 channel compatible wifi receiver

2024-05-13

We released Tuya APP 2 Channel compatible wifi receiver recently.

It supports 433mhz,300mhz,310mhz,315mhz,318mhz,330mhz,390mhz and 868mhz,namely supporting multi frequency 300mhz to 868mhz.It not only supports AC9V to AC30V,but only supports DC9V to DC30v.

Brand selection

There are 8-bit DIP switch on the receiver, so users can select different brands of remote control

Channels by setting different dip switches, and the brand selection is shown in Table 1 on the instruction of this wifi receiver.Besides about 15 famous brands,this receiver also can work with universal fixed code remote control and universal rolling code remote control.For what brands can be worked with this wifi receiver,you can get the user manual from YET sales for further confirmation.

Learning remote

The multi-frequency controller has two independent output channels, each channel has independent learning buttons K1, K2.

How to let the remotes learn or clear all remote control commands:

1）First of all, choose the right brand of remotes control on this piece of paper, and it will be entered through the DIP switch.

2）Press the learning button and the LED turns on. Press the button on the remote control, the LED flashed 2 times, and this button successfully enters the RX-Multi.

3）Repeat step 2 for the other button.

4）2 channels are jogging working state.

Clear all data from memory card:

Press and hold the learning button and the LED starts to light up.

Keep holding this button, until the LED indicator light off. All data in the memory card will

be permanently deleted.

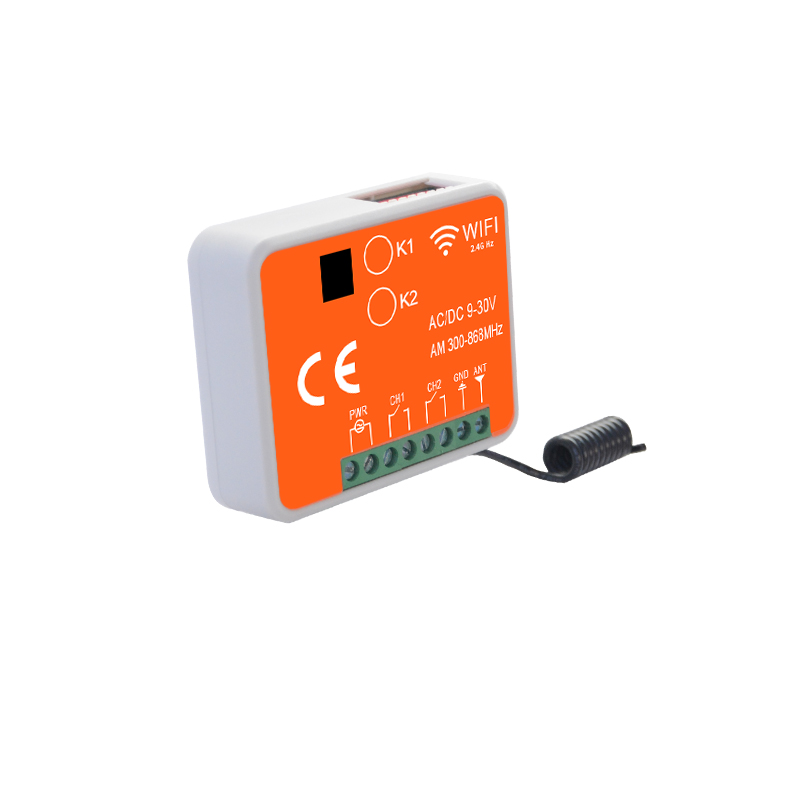

compatible wifi receiver

WIFI distribution network:

Search and download the APP “Tuya Smart”,and fill in your basic information to finish registration.Turn on WIFI on mobile phone.

1）Press and hold the K1 and K2 buttons at the same time, and the controller digital tube will display "a".

2) Keep pressing the K1 and K2, after 5S, when you see the controller digital tube display "-" and flashing quickly, Release K1 and K2, and the WIFI module enters the configuration state.

3）Click “Add Device”on APP to find available devices,choose this Receiver and input WIFI passwords,click next step and give seconds until the device added successfully.

In general,this Tuya APP receiver is packed with white box. If you want to pack it with customized colored box,it is also available.As long as you provide your colored box design for us,we can make samples for you to confirm, and once the samples are approved, we can carry out formal production.

Above are the details for the new released Tuya APP wifi receiver I would like to share with you.If you are interested in this 2 channel wifi receiver,please do not hesitate to contact us to get more information.

Besides Tuya APP,we provide our own APP Safemate for your choice,too.And in addition to the WiFi version, we also have an RF version available.So as long as you are interested in compatible receiver, please feel free to contact us and ask for more information of them.
