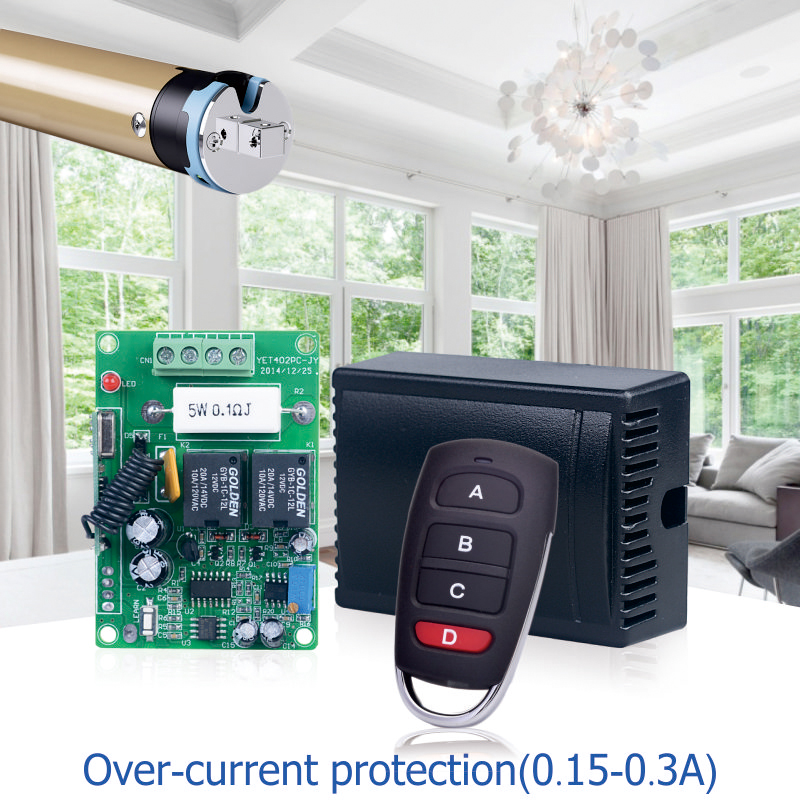

The YET402PC-JY 2-channel DC12V/DC24V controller is specifically designed for gate systems

It uses wireless communication to achieve remote control, automated management, and overload protection for DC motors. It is suitable for electric gates and gates in parking lots, residential areas, toll booths, and other locations, replacing traditional manual/wired methods to improve efficiency and safety.

I.Core Features：

It supports forward and reverse rotation of DC motors, monitors current in real time, and automatically shuts down the motor in the event of an overload, protecting both equipment and personnel. A lost remote control can be cleared and re-learned for safe operation, ensuring strong security.

II.Key Specifications：

1. Power Supply: Requires a DC 12V or 24V power supply.

2. Wireless Signal: The default reception frequency is 433.92MHz, but 315MHz can be selected as needed. The signal reception range is at least 50 meters in open air environments.

3. Remote Control Management: Up to 30 remote controls can be paired. If this limit is exceeded, newly learned remote controls will automatically overwrite the oldest registered ones, facilitating batch management.

4. Safety Protection: Customizable adjustments based on actual motor requirements prevent motor overload and damage.

5. Environmental Adaptability: Operates normally in temperatures ranging from -40°C to 80°C and humidity levels of 5% to 80%.

6. Dimensions: 73mm long, 53mm wide, and 28mm high, making it compact and space-saving.

III.Precautions：

1. Drives DC motors only; AC motors are prohibited.

2. The input voltage must match the controller specifications. Disconnect the power supply during installation and wiring to avoid operating with power on.

3. Install in a dry location free from strong electromagnetic interference, away from rain, snow, and high temperatures.
