Product Promotion Hot selling Photocell Beam Sensor YET607

2024-05-27

About our company:

Yaoertai manufacturer, specialized in the field of manufacture about RF remote control, receiver, photocell, module, alarm light and other accessories in china since 2005. YET factory guarantees you high quality and attractive price, CE & RoHS are approved, OEM & ODM are accepted.

Good news about this Product Promotion price of YET607:

Product Price: $2.80 ~ $4.00/set (Based on your quantity);

Sample Delivery Date: 3-5 working days.

Products Size (LxWxH)：49.2* 76* 21.6 mm

Input voltage : AC/ DC: 12V~24V

Here are it’s attractive advantages:

Anti-strong light and anti-nightlight;
Classic egg shaped, lightweight;
Also neutral color box packaging available;
Cheap prices;
Range: max 15m.

When you place an order, it will come to you like this:Packed in color box, one sent of photocell is in one color box. When you open the color box, you will see the following images: TX and RX photocell, one manual, install accessories.

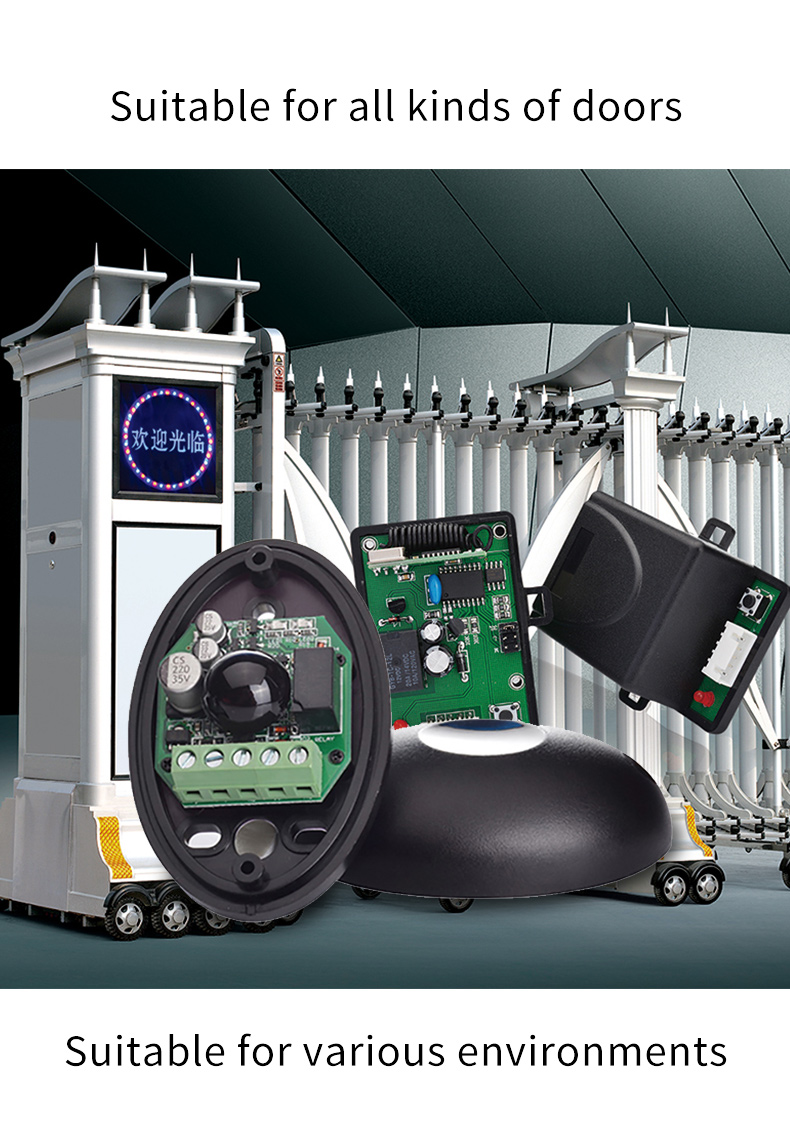

Product Application: lifting doors, wall security protection, window and balcony security, warehouse security, garage door, gate barrier system, parking guidance system, vehicle Identification, access control system, parking lots and other outdoor security sites.

Installation

The best install height should big in 20 cm, install distance to be no smaller than 2 meters. Install should make red outside the protection equip perpendicularity to place,and is on-line at same level. Install should install first to receive part, install blast-off part again. When together at always line,receive the OFF light in the machine in order to put out, then flx, connect the line to install complelion namely.

Attention:

Because this product shoot power compare big, so when shoot machine with receive the machine distance loo near hour will appear have no the phenomenon of the reaction, at this time should draw back them one meter at least behind again try. When install distance very near, discover not intelligent phenomenon, can shoot and receive medlum of the condensing lens remove, can immediately raise an intelligent degree.

Special Note：

1. RX photocell have 5 pin, TX photocell have 2 pin;

2. Classic egg shaped, shared color box for 607 and 609.

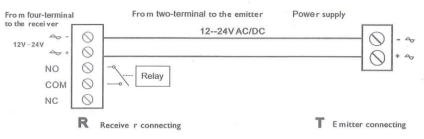

The following image is the product electrical interface:

In the manual, it will provide detailed instructions on how to install it. If you don't know how to operate, install, and use this product. Don’t worry, we can send you a video to show you how to use. Also online teach you to use is ok too.
