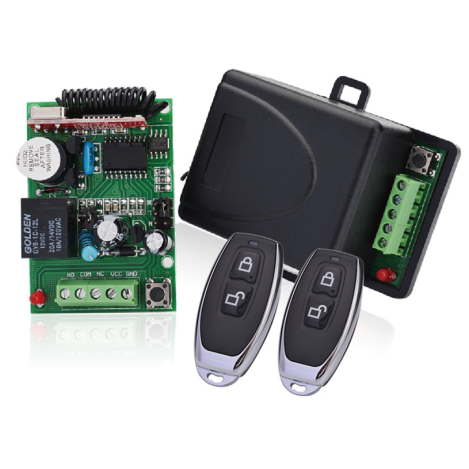

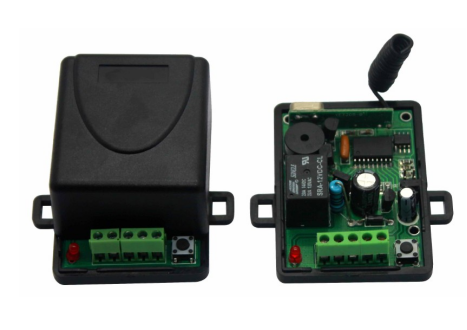

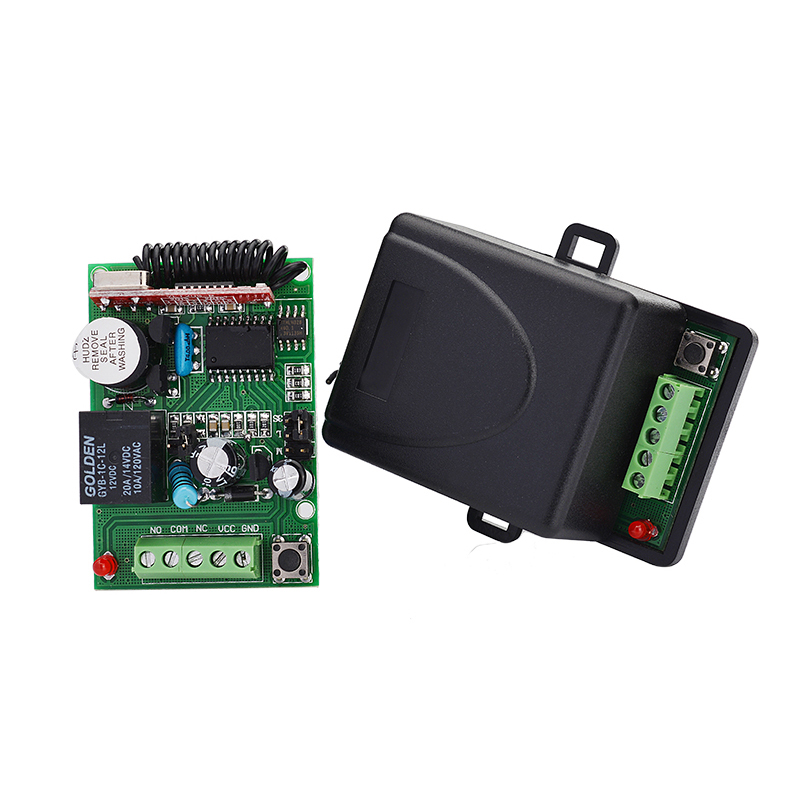

One Channel Wireless Receiver Controller YET401PC-HCS301

Hello everyone, Have a good day, this is Penny from YET company which is located in Shenzhen. Manufactured RF remote control, wireless receiver, photocell sensor, and other accessories for more than 19 years.

I'm writing to share the new arrival Long Distance 1 channel wireless receiver controller YET401PC-HCS301 for you.

Product specifications and parameters

1. Working voltage: DC12V, DC24V (optional)

2. Static working current: ≤ 7mA

3. Working temperature: -40℃ -+80 ℃

4. Receiving sensitivity: ≥ -105dBm

5. Frequency: 315MHz, 433MHz (optional)

6. Contact current: ≤ 10A

7. Remote control capacity: Learning code, fixed code ,Rolling/Hoping code

8. Size (L * W * H): 62mm x 43.5mm x 30mm

The way of output

A. Signal keeps 3 seconds-- “1” connect

B. Signal self-locking -- “2” connect

C. Signal interlock -- “3” connect

D. Signal point start -- disconnect

E. Work voltage 12V – “4” connect; Work voltage 24V – “4” disconnect

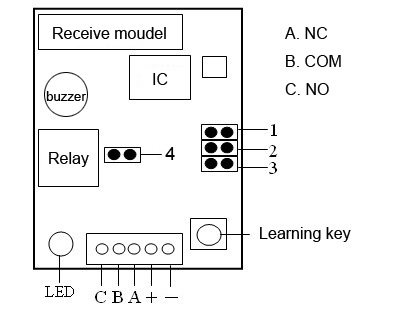

（check the Circuit diagram for details）

Learning way and steps

Learning fixed code & learning code:

1. Press learning key of receiver—the pilot lamp light—release learning key and pilot lamp extinguish , indicate enter into the status of learning.

2. Press any button of the remote control, indicate learning success as the pilot lamp flash 5 times and automatically exit learning state. Receiver automatically exit learning state if you do nothing in 32 seconds.

Learning rolling code:

Press learning key of receiver—the pilot lamp light—release learning key and pilot lamp extinguish , indicate enter into the status of learning first time.

Hold on pressing any button of the remote control, indicate first time learning success as the pilot lamp flash 5 time slowly.

Repeat the operation of step 1, enter into the status of learning second time.

Press the same button in step 2, the pilot lamp flash 5 times, learning successful.

Delete memory message
