One channel intelligent wifi + rf receiver compatible with Tuya APP

2022-10-21

– product overview

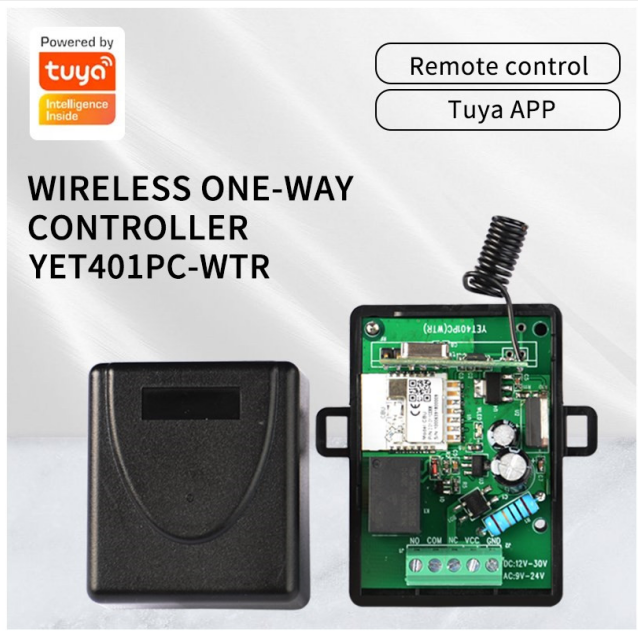

YET401PC-WTR(wireless intelligent 1-Channel receiver ) is a dual-system controller integrating with RF 433mhz and WIFI rf receiver compatible with Tuya APP, the product interface output is two-way relays switch’s signal, which can achieve forward and reverse rotation of motor,and also achieve on and offff conversion of the switch as well as control requirements of various special equipment.

rf receiver compatible with Tuya APP main specifications data

Working voltage:AC: 9~24V DC: 12~24V

Contact current:<20A@14VDC

Wlan Standard: IEEE802.11b/g/n

Working Frequency:2.4G ～2.5G(2400M ～ 2483.5M)Hz/433Mhz

Encryption type: WEP/TKIP/AES

Security regime: WPA/WPA2

Receiving Sensitivity:

802.11 b: -91 dbm (11 Mbps)

802.11 g: -75 dbm (54 Mbps)

433 : -109 dbm

Static current: <100mA

Working environment: -20℃～ +80℃

Storage environment: -40℃～ +70℃

Remote Control Capacity: <30

Outputs mode: Momentary\inter-locking\ self-latching

(Momentary mode working in a settable timing control)

Decoder type:learning code 1527

Product dimension: 62*58.5*30.5mm

– product usage

Mainly used in electric doors and windows, lifting equipment, gateways, barrier, elevators, industrial control,security industries and other fields.

– product features

Support Tuya APP network connection,allow to control via mobile phone

Support 433.92Mhz radio frequency communication

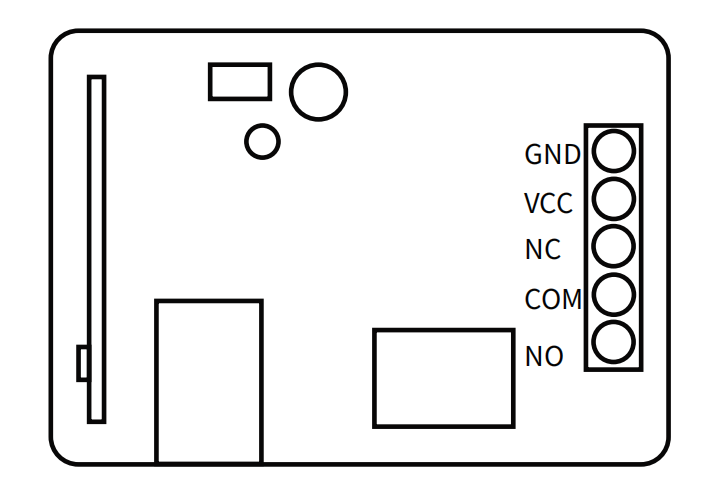

– Wiring Diagram
