No blind spots reflective photocell sensor YET611 for garage door

We released no blind spots reflective photocell sensor recently. This new released infrared photocell sensor is improved from our previous version reflective photocell. There were some customers complaining that it was a problem because of the blind spots. Now we solved this problem.Please feel free to place your order if you like this type photocell!

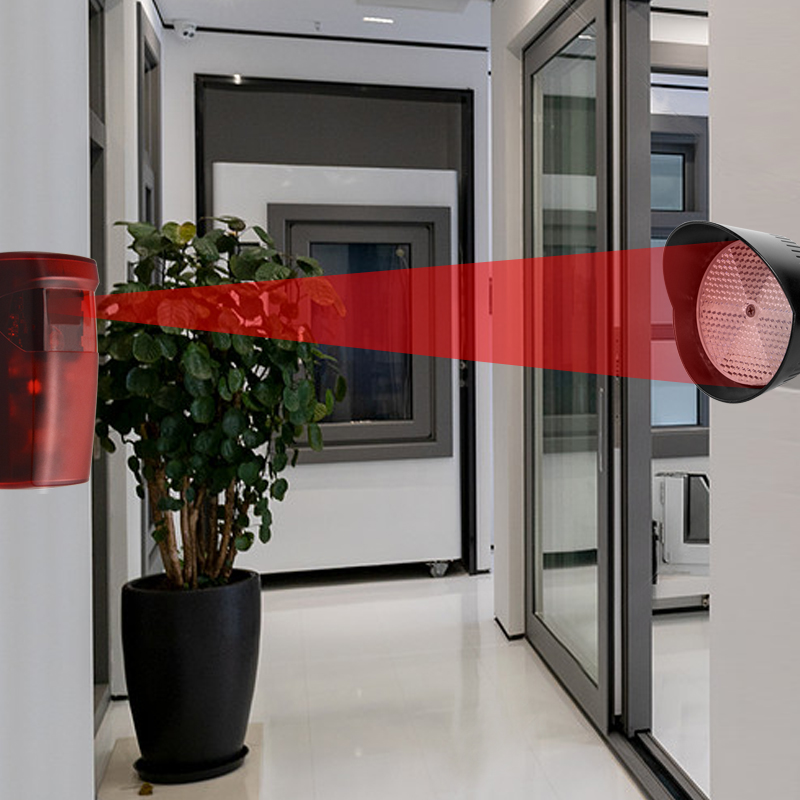

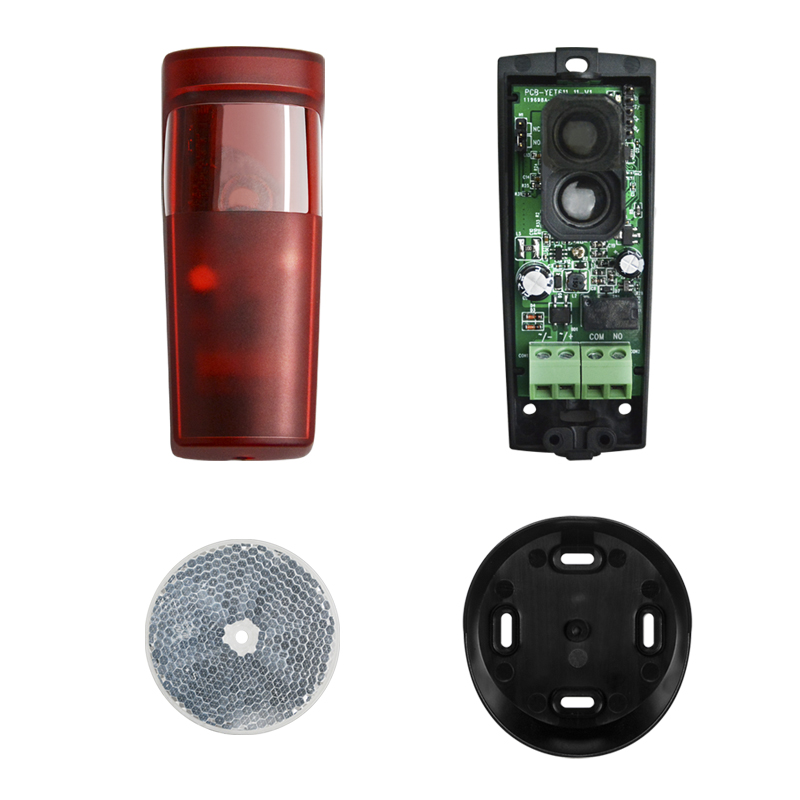

For traditional photocell, there are two parts, one is transmitter, the other is receiver, and it need connect wire for both sides. However for reflective type photocell, the transmitter and receiver are at the same part, and it reflects infrared beam by mirror. So for this YET611 photocell sensor, you just need to connect wire for one side，the other side is mirror. So it is easy to install. We provide some screws for the mirror so it is easy to install the mirror,too.

The Product Size(LxWxH) is 100 x 40 x 35mm. The Lens size is D82 x H8.3mm. And it is about 80g for each set.

Output port loading is AC 0.3A/120VAC and DC 0.8A/30VDC. Its input voltage is AC9V to AC24V (AC Frequency: 50HZ/60HZ, Imax =35mA) and DC12V to DC24V (Imax =35mA). Its working current is 1) <35mA@12VDC; 2) <19mA@24VDC. The Detect distance is about 12meters.

LED indication introduction,

If the green LED is lit,it means power on. If the green LED is off,that means power off .If the green Led is flashing, it indicates the signal is weak. The yellow LED shows the working status Signal. If it is On , the working signal is invalid. If it is off, the working signal is valid.

The same as other type photocell, this photocell also supports AC12V to AC24V and DC12V to DC24V.This photocell is applied for garage door, lifting doors, revolving doors, sliding doors, wall security protection, window and balcony security, warehouse security, parking lots and other outdoor security.

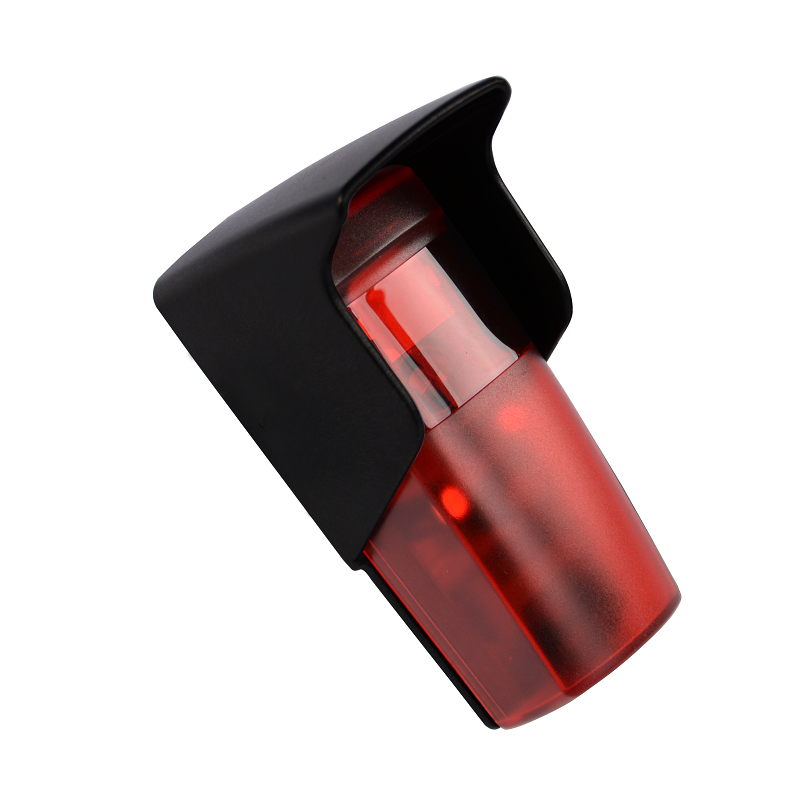

We provide protective cap for both photocell and mirror. They can protect sunlight and rain to some extent. So if you have high requirement of waterproof,please do not miss this type photocell sensor.

About Product Installation and Note,

1）Please install and test the product within Max detect range. Otherwise even though the rest installation steps are all ok，this photocell wont work.

2）Install the reflector in a suitable position and the reflector should face the sensor.

3）Adjust the position of sensor according to the reflector, and point the sensor to the center of the reflector. In the initial installation and debugging, fixed the sensor firstly, the reflector is aligned with the sensor, and then move the reflector from near to far to the desired position.

4）Do not power up the sensor until all electrical wiring of the sensor is complete.

Okay,above are the details of our new design no bind spots reflective photocell sensor I would like to share with you.If you are interested in this sensor or you still have questions of this sensor after my introduction，please do not hesitate to contact us to get more related information.
