Hot selling- 4 Channel RF Receiver YET404PC-X

2024-07-29

Hello everyone, Have a good day, this is YET company which is located in Shenzhen. Manufactured RF remote control, receiver, sensor, and other accessories for more than 19 years.

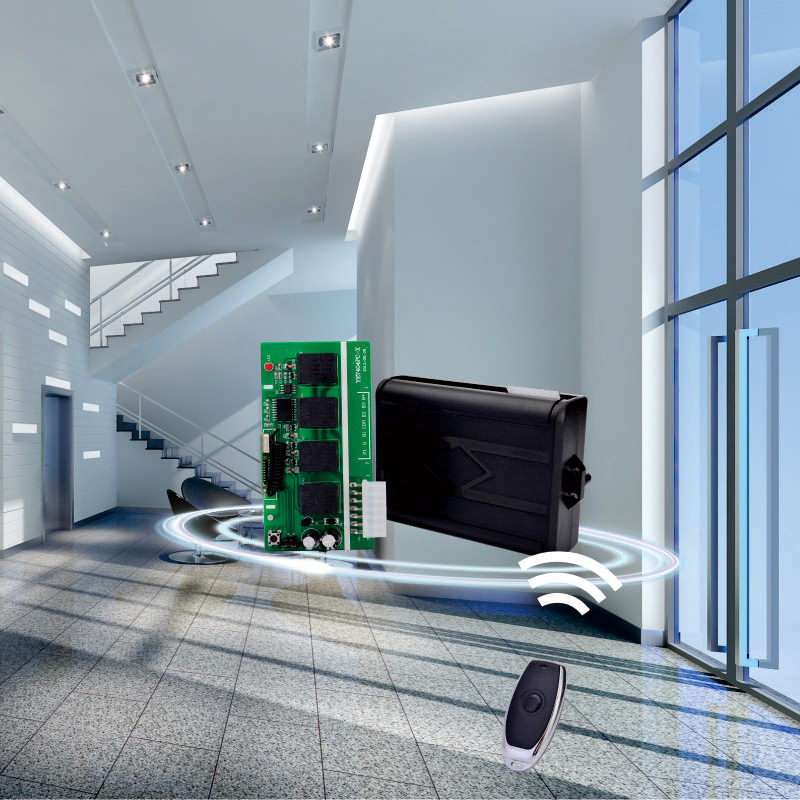

Today I would like to recommend you our hot product YET404PC-X. It is four-channel wireless intelligent receiving controller designed and manufactured by our factory can provide switching signals to twelve relays so as to satisfy a variety of requirements, such as: controlling the forward and reverse rotation of motors; switching on and off and other special control procedures.

I believe it can bring great profit to your market.Enclosed are the features and pictures of the product, please kindly check :

1.Operating voltage：DC12V/ 24V (optional)

2.Static working current: ≤7mA

3.Operating temperature: -40℃ - +80℃

4.Reception sensitivity: -105dBm

5.Operating frequency: 315MHz、433MHz (optional)

6.Relay capacity: 10A/250VAC, 10A/277VAC, 12A/125VAC

7.Remote control capacity: 30pcs of learning or fixed code; 6pcs of rolling code

8.Size: 123mmⅹ78mmⅹ31.5mm

9.Receive the type of encoding:Learning code, Fixed code, Rolling/Hoping code

Features:

1.High confidentiality, large storage space, stable characteristics, low power consumption, very easy to use, no need to use the traditional jumper wires or dip switches coding, only need to receive and store the wireless signal of the remote control.

2.If the storage information of the receiving controller is deleted, the lost learning controller will not work, but to get the right to use it, it needs to be relearned by the owner.

Pictures:

Output Methods

A. Signal point activation - jumper cap disconnected

B. Signal Self-Lock - Jumper Cap Connected ‘S’

C. Signal interlock - jumper cap connected ‘M’

Application:

Security systems, roller doors, shutters, sliding gates, barriers and household equipment ,automotive doors, curtains, lifting equipment, doorways, lifts, industrial controls and security etc.
