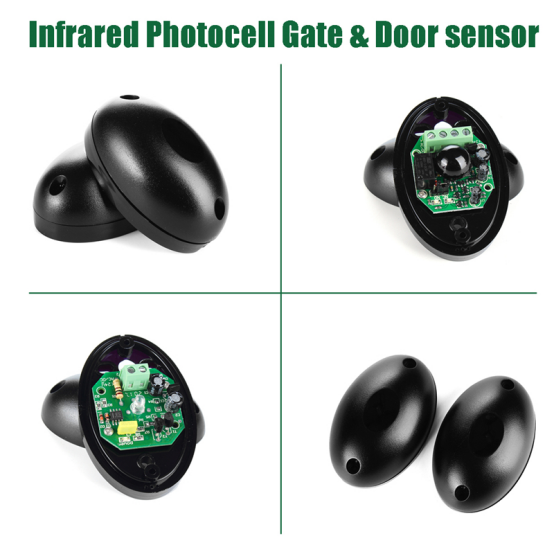

Comprehensive Applications of YET607 Photocell Beam Sensor in Automatic Door and Gate Systems

Introduction to Photocell Safety Technology

Modern automated entry systems require advanced safety solutions to prevent accidents and ensure smooth operation. The YET607 photocell beam sensor represents a significant advancement in infrared detection technology, offering reliable performance across various automatic door and gate applications. This article explores the implementation of this photoelectric safety system in garage doors, barrier gates, windows, and sunshade installations.

1.System Overview and Technical Specifications

1.1 Core Components

- High-sensitivity infrared transmitter unit

- Corresponding receiver module

- Weather-resistant housing (IP65 rated)

- Adjustable mounting brackets

- Status indicator LEDs

- 24V DC power supply compatibility

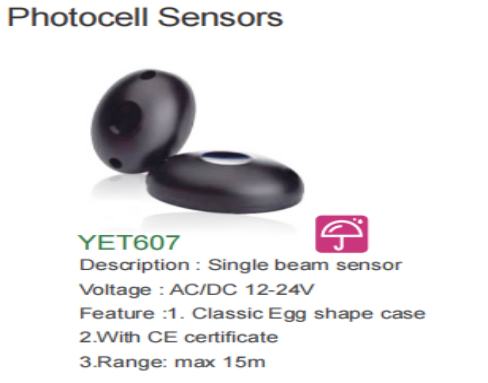

1.2 Key Performance Parameters

- Detection range: 0.1-15 meters adjustable

- Response time: <50 milliseconds

- Beam wavelength: 940nm infrared

- Operating temperature: -30°C to +70°C

- Protection class: III (according to IEC 62471)

- Alignment tolerance: ±3° horizontal/vertical

2.Installation Guidelines for Different Applications

2.1 Garage Door Systems

- Optimal mounting height: 30-50cm above ground

- Recommended spacing: 5-10cm inside door frame

- Alignment procedure using built-in indicators

- Wiring connection to door controller safety circuit

- Testing methodology with various door positions

2.2 Barrier Gate Installations

- Dual-beam configuration for enhanced security

- Mounting position relative to gate arm movement

- Integration with vehicle detection systems

- Adjustable sensitivity for different gate speeds

- Weatherproofing considerations for outdoor use

3.Advanced Safety Features

3.1 Obstruction Detection

- Instantaneous response to interrupted beam

- Multiple detection patterns (single/multi-beam)

- Adaptive sensitivity adjustment

- False trigger prevention algorithms

- Automatic self-check function

3.2 System Integration Capabilities

- Compatible with most automatic door controllers

- Relay output (NO/NC configurable)

- Fault detection signaling

- Daisy-chain capability for multiple sensors

- Remote status monitoring option

4.Maintenance and Troubleshooting

4.1 Routine Maintenance Procedures

- Quarterly lens cleaning schedule

- Annual alignment verification

- Connection integrity checks

- Power supply voltage testing

- Environmental factor assessment

4.2 Common Operational Issues

- Beam alignment drift solutions

- Sunlight interference mitigation

- Condensation prevention methods

- Wiring fault diagnosis

- Power supply problems troubleshooting

5.Specialized Applications

5.1 High-Security Installations

- Encrypted beam communication

- Tamper detection features

- Anti-jamming technology

- Fail-safe operation modes

- Backup power options

5.2 Harsh Environment Adaptations

- Extreme temperature operation

- Marine environment protection

- Dusty condition performance

- Vibrating installation solutions

- Corrosion-resistant materials

6.Compliance and Certification

The YET607 system meets international safety standards have:

- CE and RoHS compliance

7.Future Development Trends

Emerging technologies in photoelectric safety systems:

- AI-powered adaptive detection

- Wireless beam sensor networks

- 3D spatial detection capabilities

- Integrated camera verification

- Predictive maintenance features

- Solar-powered autonomous units

Conclusion

The YET607 photocell beam sensor provides a reliable, versatile safety solution for various automated entry systems. Its robust design, advanced features, and compliance with international standards make it suitable for demanding applications in garage doors, barrier gates, windows, and sunshades. As automation technology continues to evolve, such photoelectric safety systems will play an increasingly important role in ensuring safe operation while maintaining convenience and efficiency.
