YET863 Tubular Motor Wireless Controller｜Upgrade Your Electric Roller Shutter for Easy & Safe Operation

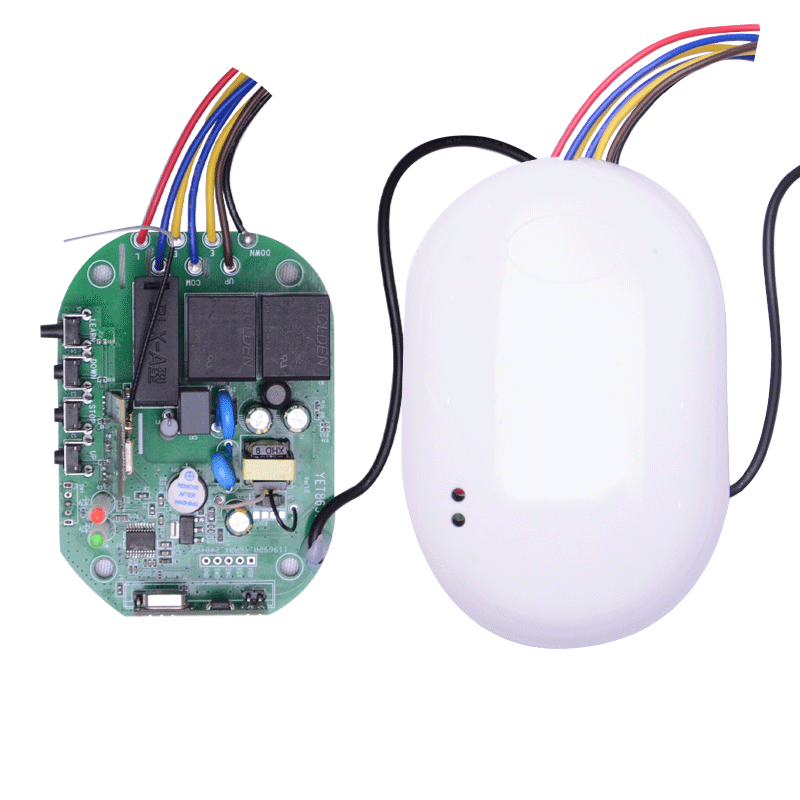

  Tired of the complicated operation and troublesome remote‑control pairing of old‑style electric roller shutters? The YET863 tubular motor wireless controller is specially designed for tubular motors. It eliminates cumbersome coding via traditional DIP switches or jumpers. Supplied with 2 rolling code remote controls, it is perfectly applicable to household, commercial and garage roller doors as well as sun‑shade roller blinds, bringing comfort and safety right to your fingertips.

  Traditional controllers usually require adjusting DIP switches or jumpers for pairing, creating a high barrier for new users. The YET863 adopts a user‑friendly rolling‑code wireless learning mode. Simply press the onboard learning button to enter pairing mode, then press any button on the remote control. A quick flash of the status indicator confirms successful pairing — no professional tools required. Besides onboard‑button‑triggered learning, learning mode can also be activated directly from the remote control. It supports memorizing up to 15 remote controls, ideal for multi‑user households and expanded scenarios. To reset, hold down the learning button for 8 seconds to clear all stored remote‑control signals for easy maintenance and replacement.

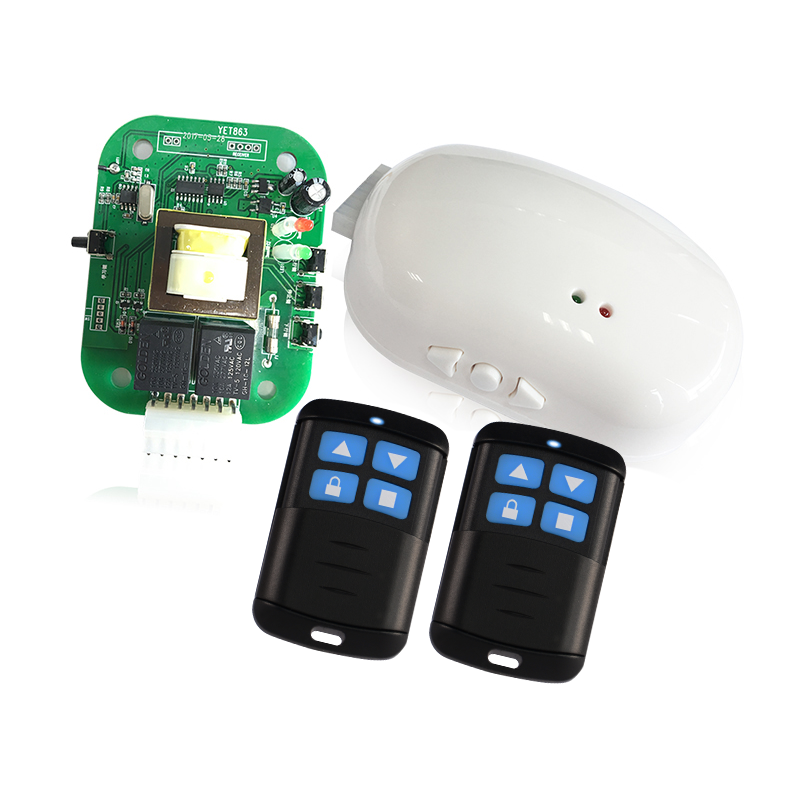

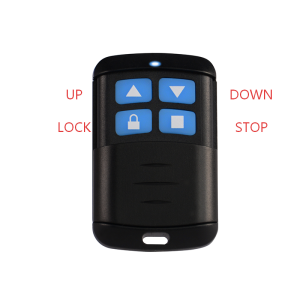

  Two 433.92 MHz rolling‑code remote controls are included: keep one at home and carry the other to avoid trouble caused by lost remotes. The remote features clearly‑labelled buttons for UP, DOWN, STOP/UNLOCK and LOCK. One‑touch UP or DOWN triggers motor rotation with a maximum 2‑minute runtime for overload protection. Press STOP midway and the shutter will halt exactly where you want it.

  It is equipped with a special lock‑protection function. Press and hold the remote’s LOCK button to lock the controller. In locked mode, neither remote‑control commands nor manual buttons on the control board work, preventing accidental operation by children or outsiders for enhanced safety at home and in stores. When motor rotation direction is reversed, no wiring modification is needed. Under standby status, hold the LOCK button for 8 seconds until the status indicator flashes to swap forward/reverse rotation for convenient commissioning and servicing.

  Built for stable performance, it runs on standard AC220V power and works reliably from ‑40℃ to +80℃ even in extreme cold or heat. Boasting receiving sensitivity ≥‑110 dBm, it delivers strong anti‑interference performance with stable signal reception to avoid unresponsive remotes. Two onboard LED indicators show device status: the power LED indicates power supply; the status LED flashes every 0.5 seconds during motor operation. Different flash patterns correspond to learning, code‑clearing and lock status, so you can read device conditions at a glance for simple troubleshooting.

• ✅ AC 220V Working Voltage
• ✅ 433.92MHz Rolling-Code
• ✅ Max 15 Remotes Supported
• ✅ Child-Safety Lock Function
• ✅ Auto stop: Max 2-min runtime
• ✅ Forward / Reverse Rotation Switch
• ✅ Temp range:-40℃ ~ +80℃

  Physical UP, STOP and DOWN buttons are reserved on the control board. You can operate the shutter manually directly on the board even if remotes are misplaced, offering dual‑mode control beyond wireless remote access. Suitable for balcony sun‑shade blinds, garage roller doors and commercial roller shutters, this low‑power‑consumption controller consumes little energy even with long‑term power‑on.

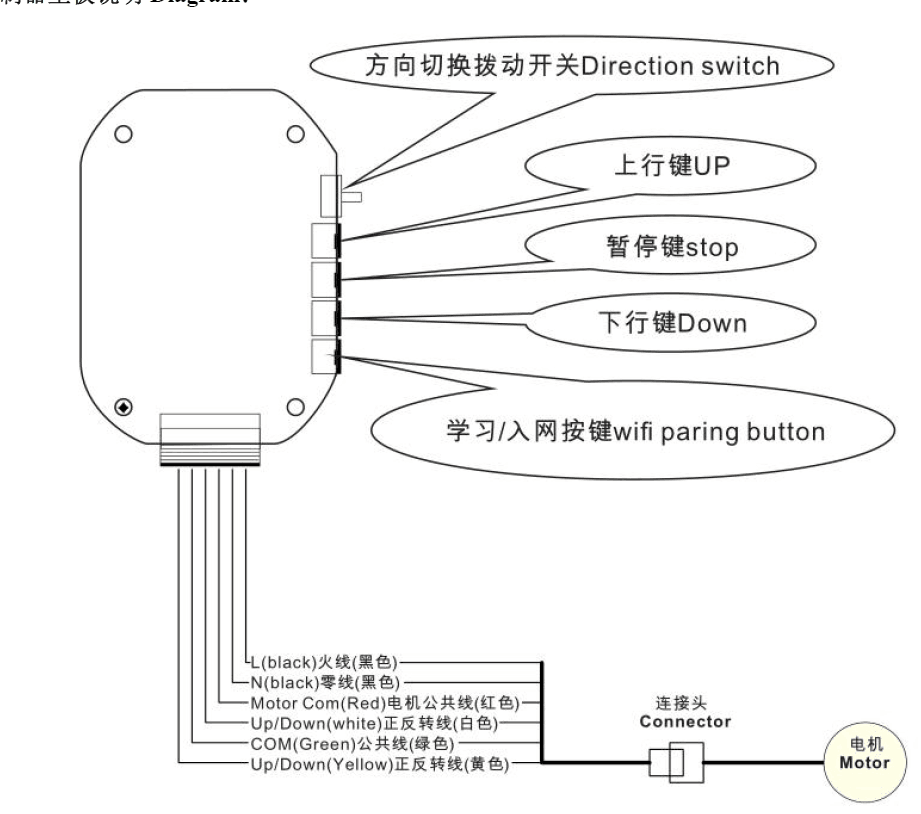

  No major rewiring is required for installation and commissioning. Manual onboard control serves as backup, two remote controls enable multi‑user access, and the anti‑accidental‑touch lock ensures safety. Choose the YET863 tubular motor controller and enjoy smarter, more convenient control over your electric roller doors and blinds.
