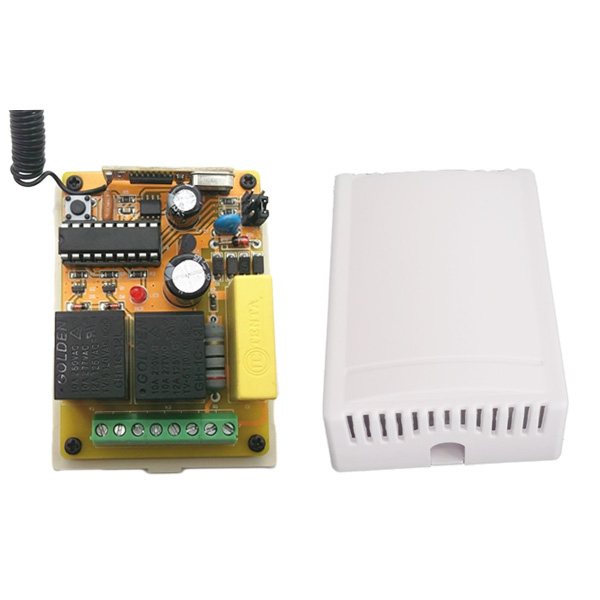

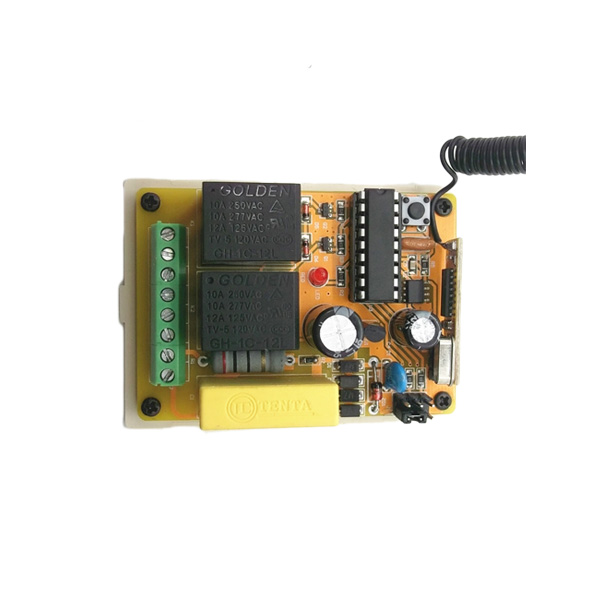

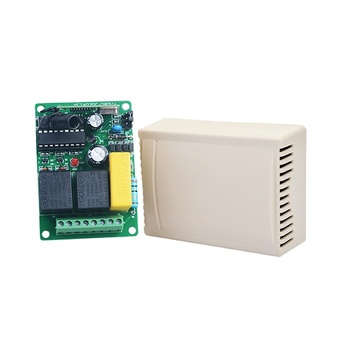

AC 220v 2 channel receiver YET402PC-220V for automatic door

YET402pc-220v is a 2 channel receiver with the voltage of AC220v and with the Contact current less than or equal to10A.The receiving sensitivity of this receiver is more than or equal to-105dBm .315mhz/ and 433mhz are available.It can store 30 pieces learning code or fixed code remote control,it also can store 6 piece rolling code remote control.Its working temperature range is -40℃- +80℃.

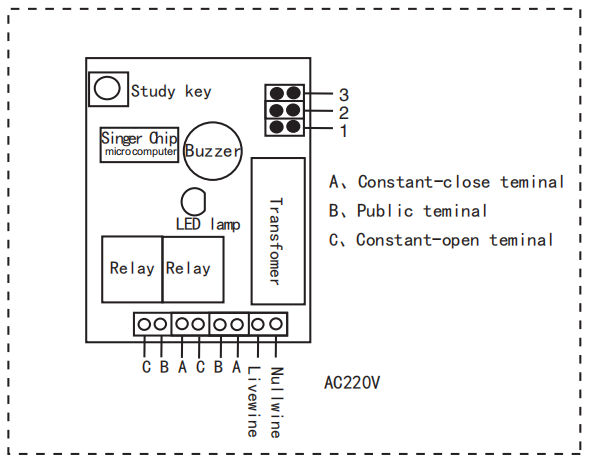

There are 4 working modes for your choice :Signal delayed 3 seconds、Signal toggle、Signal latch and Signal momentary.Please insert jumper in 1 for signal delayed 3 seconds, insert jumper in 2 for Signal toggle,insert jumper in 3 for Signal latch and insert no jumper for Signal momentary.Single toggle means it is working when you press and then release the button，it stops working when you press the same button again.Single latch means it is working when you press and then release the button，it stops working when you press other buttons.Single momentary means it is working only when you press the button but it stops working once you release the button.

The Methods and steps for learning and clearing code are as follows,

For the Learning code and fixed code:

Press the learning button on the receiver and then release it after LED lamp is lit and the receiver enters into the learning state (At this moment, LED lamp is off). After that, press the remote control button that is required to control the receiver. If LED lamp on the receiver flashes for 5 times and then is off, it indicates that the learning is success. Maximum 30pcs remote controls can be studied.

If the remote control is lost and it intends to fail the entire remote control, long press the learning button (more than 8S) until LED lamp is off and then the receiver will automatically clear the memory contents. If it is to be reused, just learn it once again.

For Rolling code

Press the learning button on the receiver and then release it after LED lamp is lit and the receiver enters into the first learning state (At this moment, LED lamp is off). After that, press the button that is subject to the control of the remote control and LED lamp flashes slowly, which indicates that the first learning is complete. Press the learning button on the receiver again and then release it after LED lamp is lit and the receiver enters into the second learning state (LED lamp is off). Press the same button on the remote control and LED lamp flashes for 5 times and then it is off, which indicates that the learning is success. Maximum 6pcs remote controls can be studied.

If the remote control is lost and it intends to fail the entire remote control, long press the learning button (more than 8S) until LED lamp is off and then the receiver will automatically clear the memory contents. If it is to be reused, just learn it once again.
