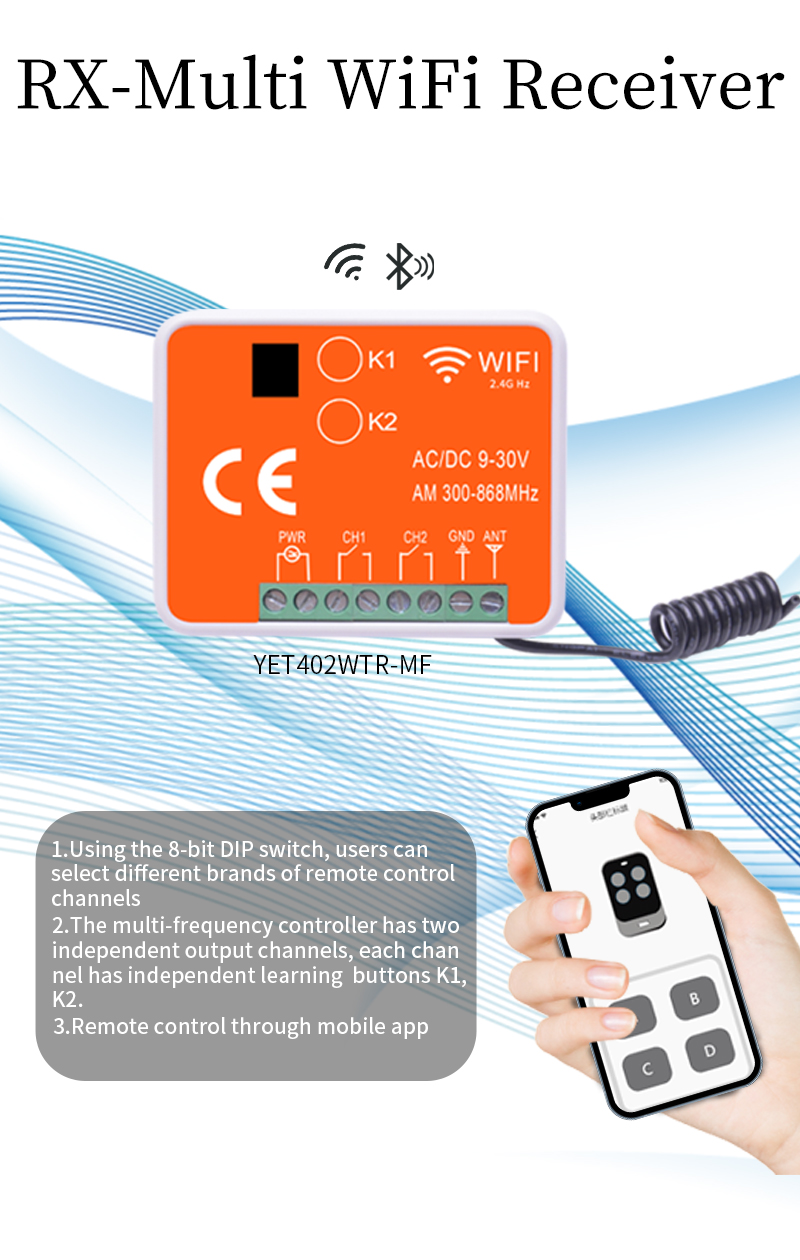

YET402WTR-MF(V3.0) Tuya App 300mhz -868mhz AC/DC 9-30V WiFi Receiver

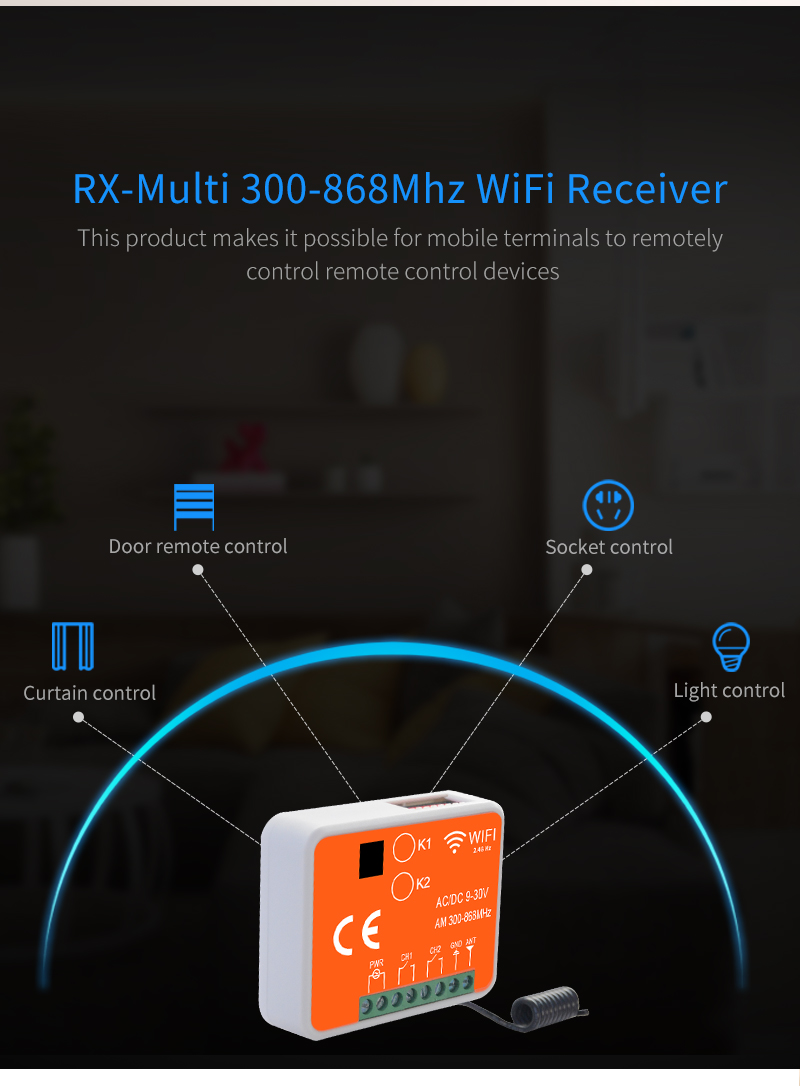

YET402WTR-MF(V3.0) is a 300mhz -868mhz AC/DC 9-30V receiver for some famous remote brands,like NICE FLORS,MARANTEC,FAAC,CODIGO,Hormann,Sommer,BFT,Beninca,KEY,Nice smilo...This model is Tuya App ,so you can use your phone to control it.

There is a 8-bit DIP switch to select different brands of remote control channels,and the brand selection is shown in brands list.

The multi-frequency controller has two independent output channels, each channel has independent learning buttons K1, K2.So get it , you can control two devices in one multi frequency AC/DC 9-30V universal receiver YET402WTR-MF(V3.0)

How to let the remotes learn or clear all remote control commands:

1.First of all, choose the right brand of remotes control on this piece of paper, and it will be entered through the DIP switch.

2.Press the learning button and the LED turns on. Press the button on the remote control,the LED flashed 2 times, and this button successfully enters the RX-Multi.

3.Repeat step 2 for the other button.

4.2 channels are jogging working state. (Momentary mode working in a settable timing control)

Clear all data from memory card:

Press and hold the learning button and the LED starts to light up. Keep holding this button, until the LED indicator light off. All data in the memory card will be permanently deleted.

Introduction for WIFI distribution network:

1.Press and hold the K1 and K2 buttons at the same time, and the controller digital tube will display "a".

2.K1 and K2 keep pressed, after 5S, when you see the controller digital tube display "-" and flashing quickly, Release K1 and K2, and the WIFI module enters the configuration state.

3.Add devices through the mobile APP and configure the network through WIFI mode.
