Why the YET6141 LED Flashing Light so popular on the market？

The YET6141 LED Flashing Light is our newly developed warning flashing light.

It supports both DC12V~220V and AC12V~220V. The working current is <350mA @12VDC. There are two operating mode for this flashing light, bright and flicker, the flicker frequency is1HZ and this mode is selected by jump cap.It has power interface and antenna interface.The operating temperature is -10℃~60℃.The flashing light is with antenna which can lengthen the remote control distance.

The whole set of this new design flashing light includes one flashing light,one set of screws and rubber sleeves,two flashing light fixing brackets crews, one piece manual.

Product installation conditions:

1. The product can be used in doors or outdoors;

2. The installation surface should be firm and free from vibration.

3. It will be installed in a place where it is easy to see.

Product wiring introduction：

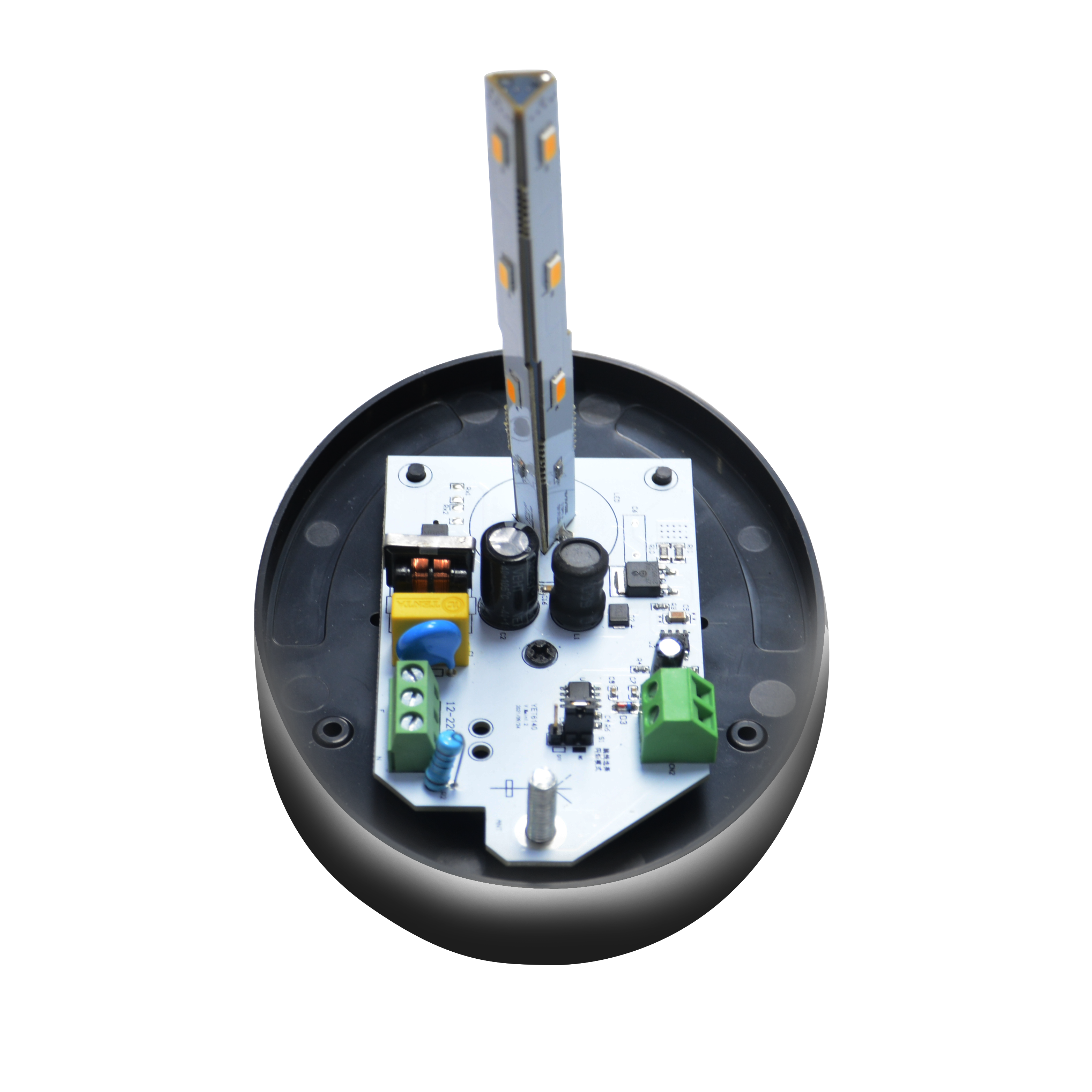

1、When wiring this flashing light, you need to unscrew the antenna on the flashing light,and use a screwdriver to unscrew the screws on the light board,and remove the light board as shown in the figure above;

2、There are two wiring terminals and one jumper terminal on the board:

(1）Antenna wiring terminal: there is an RF antenna on this product, which is mainly an external antenna configured for the user controller. When in use, connect the antenna interface on the user controller with the antenna terminal of the product with a wire;

(2）Power supply terminal: the interface used to supply power to this product, the power supply voltage range: DC/AC12~220V;

(3)Work-Mode Jumper terminal: used for the selection of always-on mode (ON) or flashing mode(OFF),change the position of the jumper cap as needed;

Operating Instructions:

1、Make sure the power supply is disconnected, and connect the product to the DC/AC12~220V power supply or the flashing light interface on the user controller;

2、Turn on the power, and the user can use the product normally.

Notices and Statements：

1、When installing this product, be sure to disconnect the power supply and install it. When installing the wiring, make sure that the terminal screws are tightened;

2、This product can work with DC power supply or AC power supply. When using high-voltage AC Power supply, make sure that the wiring is reliable and not loose, so as to avoid electric shock accidents (the company is not responsible for any accidents caused).

Above are the details I would like to share of the newly developed flashing light YET6141.After the introduction ,you can see that this new arrival is so popular on the market because it is with LED light、wide voltage range、Novel case design and with the antenna to lengthen the distance of the remote control.

If you are interested in this new design warning flashing light,please feel free to contact us to get more information.Or please do not hesitate to place an order of it,it is with good price.
