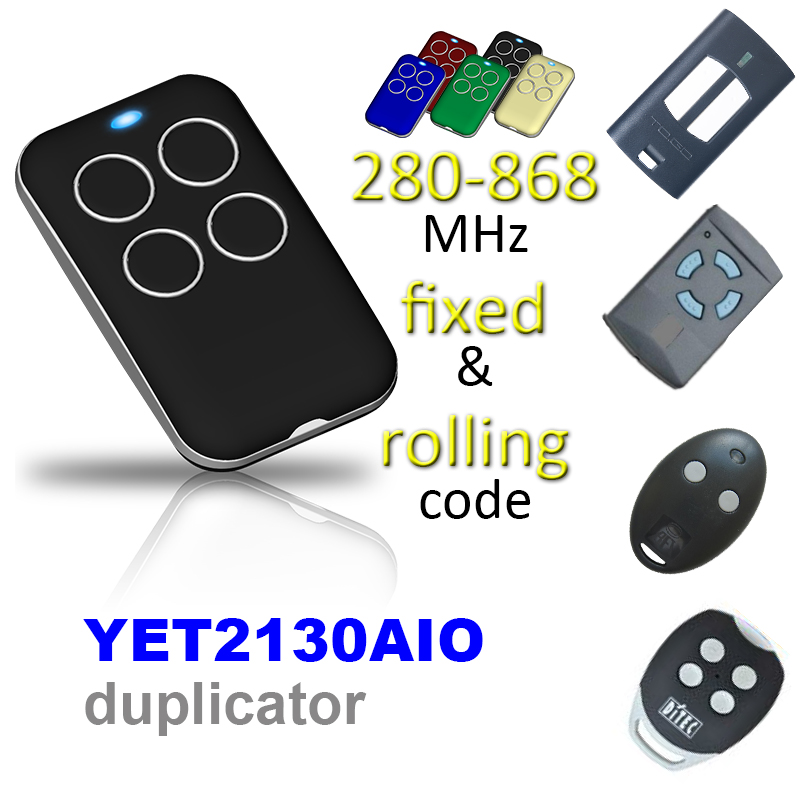

Remote control duplicator YET2130AIO (Multi frequency 300-868mhz for original rolling code)

2023-10-23

About our company:

Yaoertai manufactory, established in 2005, specialized in the field of manufacture about RF remote control, receiver, sensor, module, and other accessories for more than 18 years.

YET factory guarantees you high quality and attractive price, CE & RoHS are approved, confidence in dealing and after-sales service, OEM & ODM is accepted.

Good news about this New Product Promotion price of YET2130AIO:

Sample EXW Price: $4.89/pcs;

100 pcs ≤ If your quantity ＜500 pcs : $4.59/pcs

Sample Delivery Date: 3-5 days.

Here are its Features:

Multi-frequency & auto scan
Easy duplicating
Patent right reserved
Color manual and color box

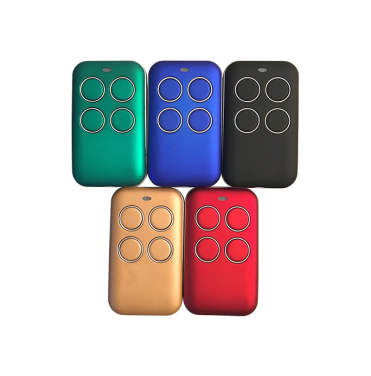

Multi color: blue, black, red, green, gold
Waterproof grade: IP66

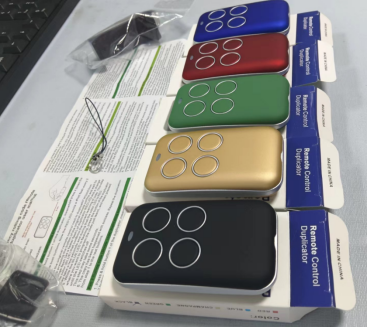

When you place an order, it will come to you like this. Packed in color box, one RF remotes is in one same color box. When you open the color box, you will see the following image: 1 pcs of remotes, and 1 pcs of black lanyard, and a color manual.

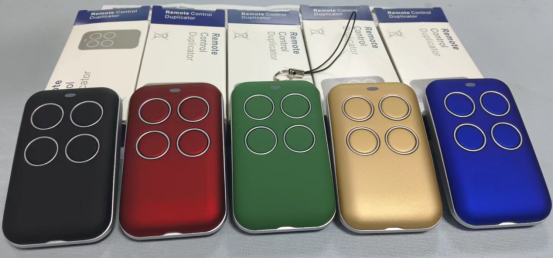

433.92 mhz remote control

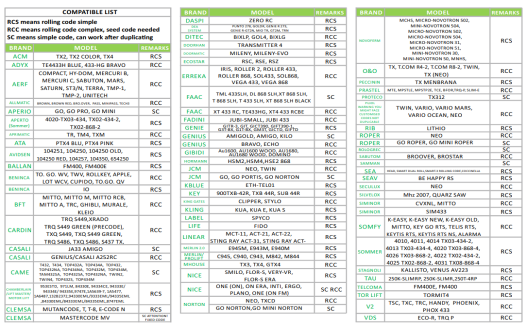

It can copy more than 60 brands remote control.

Here is how to copy rolling code (complex code) during the copying process:

For example:

1. Press & hold button 1 of the duplicator,meanwhile press 4 times the 2 button.

2. Release both buttons. Now the duplicator RED LED will emit a short flash every 2 seconds.

3. Place the original remote control next to duplicator around 5cm.

4. Keep pressing the button to be programmed of the original remote control, till the RED LED will switch on as a fix light; now release the button.

5. The duplicator RED LED will emit a short flash every 2 seconds.

This indicates it is necessary to emit the SEED CODE to realize the copy.

6. To transmit the SEED CODE of the original remote control, please using a pin, press the rear hide button or,according to the new references, press the 1 and 2 buttons until the original remote control LED switches on.

7. Now the duplicator RED LED will change the flash mode (more fast) and color (BLUE), for a reconfirmation of the correct code learning. This step may take some seconds.

8. At this moment, press the duplicator button when you want to store the code and retain pressed until the duplicator BLUE LED switches off. Repeat the duplicationg from Step 1 to the rest buttons.

9. Activate now the RCC procedure to insert the new remote control on the receiver.

NOTE: THE SEED CODE OF THE DUPLICATOR REMOTE CONTROL CAN BE EMITTED AS HERE BELOW:

1. Press the buttons 1 and 2 simultaneously for 8 seconds and release them when the LED start to flash;

2. While the LED is flashing press the button with the seed code needed.

In the manual, it will provide detailed instructions on how to use it. If you don't know how to operate, and use this product. Don’t worry, we can send you a video to show you how to use.

Or we can teach you how to copy online.

We insist on providing you with high-quality after-sales service.

The following image is it’s screenshot of the manual:

long range remote control
