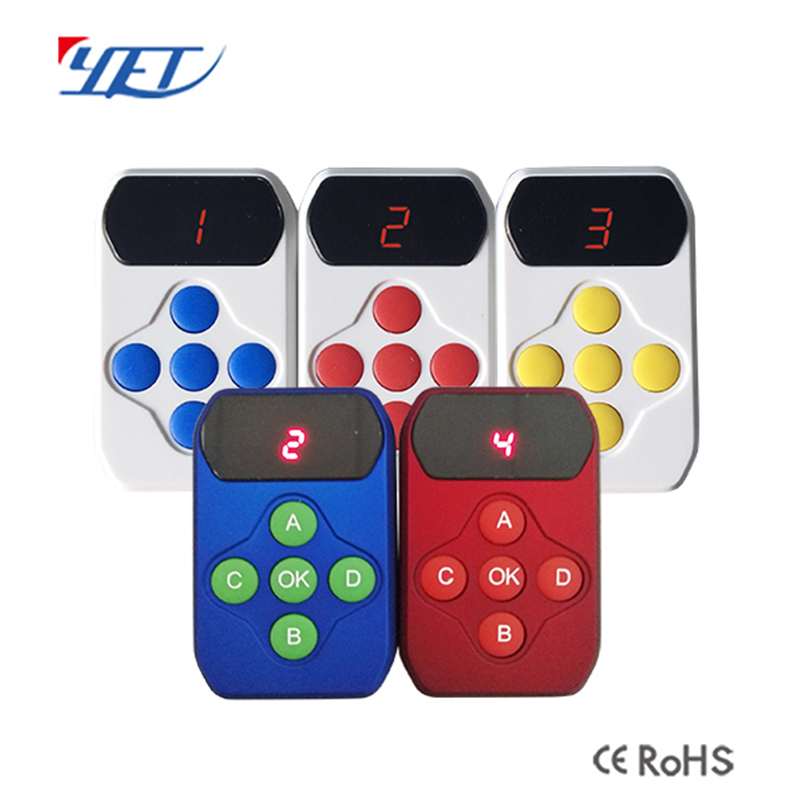

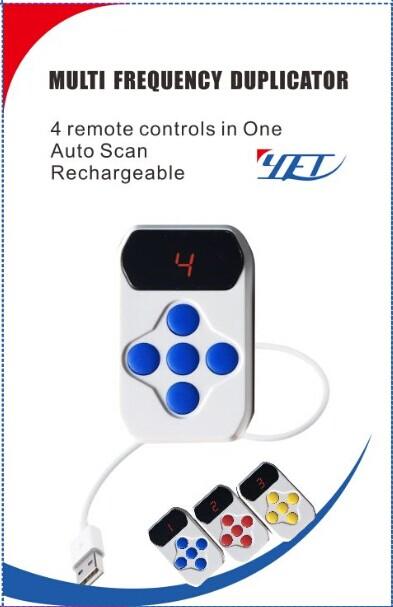

Chargeable Type multi frequency 280 to 868mhz remote control duplicator for fixed code and rolling code
Product Feature Description
- There are four groups (One group can copy four key codes. When copy rolling code,other three keys will automatically generated after the first button copied)
- Automatically recognize frequency (Automatically find your copy of the remote control frequency, as long as within the scope of the copy)
- Can single group clear code (single clear you want to clear a set of code)
- can set the number of groups (if you do not use so many groups, you can hide)
- Can copy some brand rolling code remote control,improved function than to old type duplicator.
Product specification
- Voltage:Lithium battery 3.7V,150mA
- Static current: ≤40uA
- Temperature: -40℃~+80℃
- Transmit Power: ≤10mW

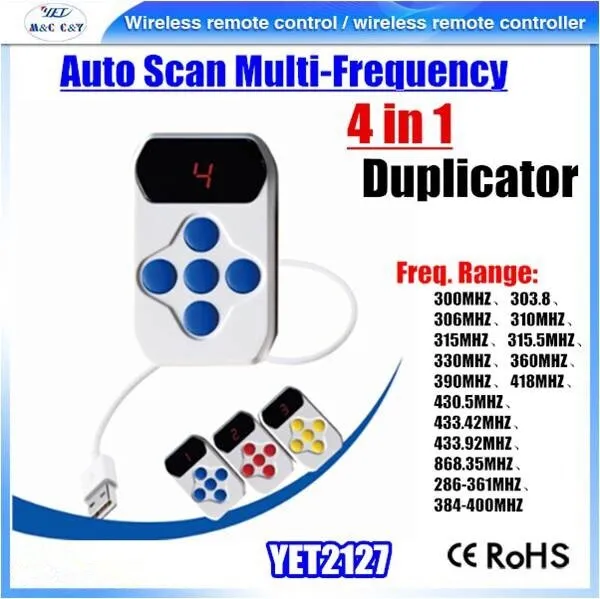

- Copy frequency: 300MHZ、303.8MHZ、306MHZ、310MHZ、315MHZ、
- 315.5MHZ、330MHZ、360MHZ、390MHZ、418MHZ、
- 430.5MHZ、433.42MHZ、433.92MHZ、868.35MHZ、
- 286-361MHZ、384-400MHZ
- Working current: ≤25mA
- Quantity of copies: Can copy 16pcs remote control code
- Size: 60mm*37.5mm*13mm
- If support charge: Support USB DC5V
- Copy type: Rolling code（Limited brand）,
- Fixed code PT2264HS2260SMC5326 M1EM5E,
- Learning code EV1527HS2240PT2240HS527 etc
Compatible rolling code remote control models:
BFT
BENINCA
DOORHAN
SOMMER
V2
FAAC
KEY
GGRA1
GBD
Nice-Smilo
ECA
MotorLine
DEA
PECCinin
Centurion
Elnaz
FADINI
Operating Instruction
Boot-strap and group switching:
Press the confirmation key, and the screen shows the last use of the group number before powered off. There is no standby off screen for 10 seconds. In the boot state, the group 1-4 are cyclic switching by pressing the confirmation key. There are 4 groups in total.
Learning function:
In the start-up state, press and hold the button that needs to be learned, and the screen shows the current group plus "."When the key enters the learning state, the original remote control should long press the button that needs to be learned. If the copy is successful, the screen flashes 2 times and returns to the current group sequence number and the copy is successful.
Device group number reservation operation
This product can store up to 4 groups at most. If the actual use does not require so much, the feature can select number of groups to be retained. In the start-up state, long press the confirmation key for 10 seconds.
Screen display "U.", do not lose the confirmation key at the same time press (downlink), release the confirmation key and the downlink key, enter the number selection. At this point the screen displays 4, press (downlink),the group 4-1 is cyclic switching.
The numbers are flickering at this time. Select the number of groups that need to beretained, and press the confirmation key to save and exit.
Clear code and return code
Clear code:
In power-on state, press “up key” and “down key” at same time, the screen will flashes 3 times. Then press
one of key 3 times to see screen flashing continuously, current group’s information is been clearing.
Return code:
In power-on state, press “left key” and “right key” at same time, screen flashing continuously, current group’s
information is be restore.
