4-Channel Universal Compatible High-Capacity Receiver YET404PC-V4.0

2025-01-06

universal receiver

4-Channel Universal Compatible High-Capacity Receiver YET404PC-V4.0

433mhz receiver

Hello everyone, Have a good day, this is YET company which is located in Shenzhen. Manufactured RF remote control, receiver, sensor, and other accessories for more than 20 years.

I'm writing to share the hot selling YET404PC-V4.0 4-Channel Universal Compatible High-Capacity Receiver for you.

Product Features :

1.Type: YET404PC-V4.0

2.Frequency: 315MHz, 433MHz (optional)

3.Input Voltage： DC12V-30V

4.Dimensions: 62×43.5×30mm

5.Static current: ≤12mA

6.Receiver capacity:500

7.Distance:80-100m

8.Operating temperature: -40℃-+80℃

Switch Receiver

garage door receiver

Operation Method and Function Mode

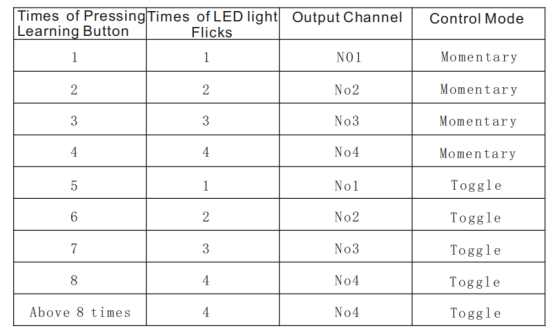

Operating Learning button on Receiver can help users enter into different learning mode and realize different function mode. Relevant operation methods and functions are shown as the following table.

door receiver

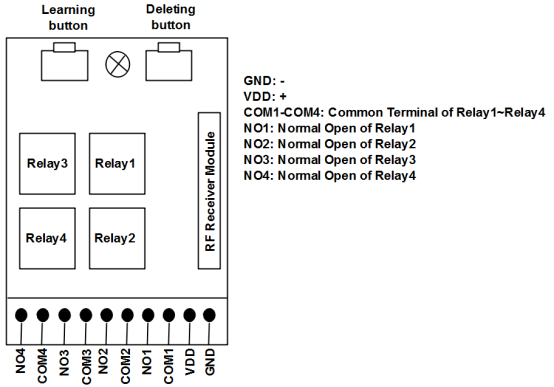

Wiring Diagram:

remote receiver

wireless receiver

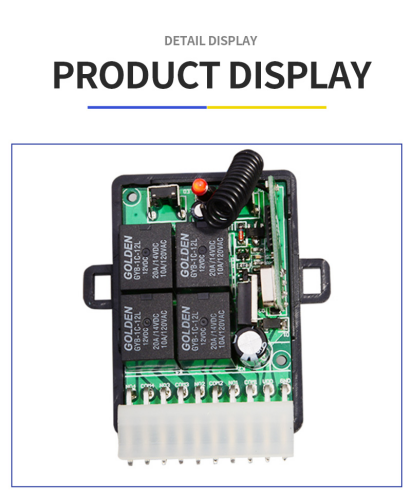

Pictures:

433mhz receiver

Remote Manufacturer

remote control manufacturers

Do you want to place an order for the item?In the meanwhile,you are the most welcome to test sample! Please ask me for details！

Looking forward to receiving your more thoughts.

Thanks with best regards.
