YET848PC-WiFi AC220V 433mhz Universal Multi Frequency Tubular Garage Door Motor Controller for Leaves Shutter
- Place of Origin:Guangdong, China
- Brand Name:YET
- Model Number:YET848PC-WIFI Tubular Garage Door Motor Controller
- Product name:Wifi Rolling door tubular motor controller board
- Material:ABS
- Usage:Smart curtain controller
- Working volt:AC 220V
- Functions:Close,open and stop,wifi functions
- Standard accessories:Track 3 meter and remote control

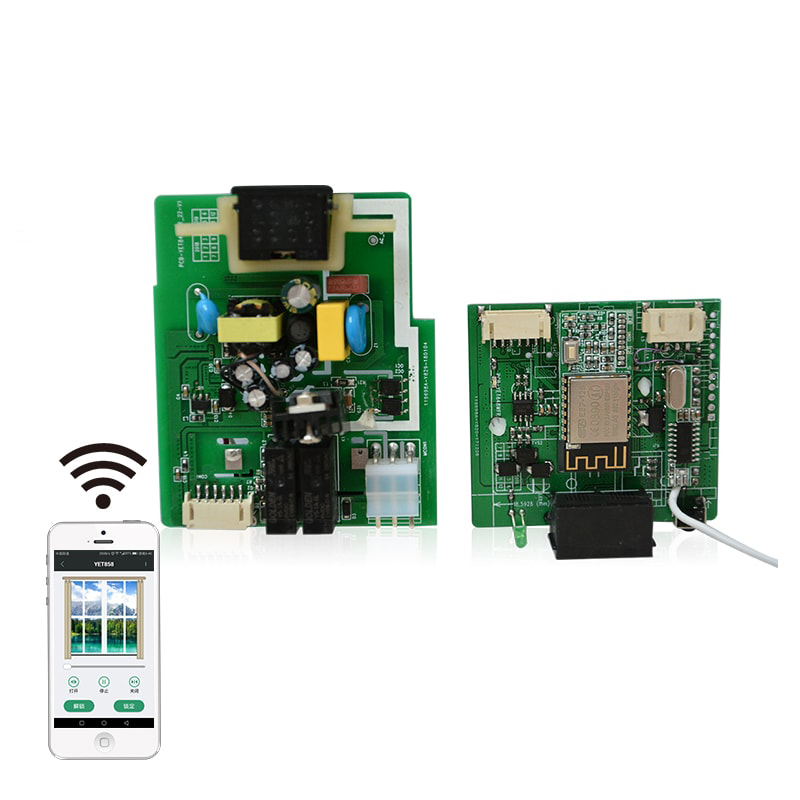

YET848PC-WiFi(Smart Curtain Tubular Garage Door Motor Controller) is a Multi-Control intelligent controller based on Wi-Fi technology and RF 433M. It can control the opening, stopping, and closing of curtains through remote wireless remote control. At the same time, you can control the opening, stopping, and closing of the curtains through the wire-controlled touch switch or the RS485 bus. The product has automatic trip memory function, manual push and pull start function, arbitrary trip setting and intermediate stop function; This product is mainly used in home, hotel or business applications.
Technology parameter:
| Input Voltage | AC100V-AC240V | ||||
| Motor working voltage | AC220V | ||||
| Wireless Standard | IEEE802.11b/g/n | ||||
| Frequency of operation | 2.4G ~2.5G(2400M ~2483.5M)Hz/433.92MHZ | ||||
| Encryption Type | WEP/TKIP/AES | ||||
| Security mechanisms | WPA/WPA2 | ||||
| Receipt sensitivity | 802.11 b: -91 dbm (11 Mbps) 802.11 g: -75 dbm (54 Mbps) 802.11 n: -72 dbm (MCS7) | ||||
| Static current | <0.02A | ||||
| Working current | Imax =300Ma (@220VAC) | ||||
| Motor parameters | Power | Torque | Run Speed | Rated speed | Working time |
| 65W | 1.8N.m | 0.2m/S | 120Rpm | 4Min | |
| Work environment | Temperature: -40 °C ~ +80 °C Humidity: 20 % ~ 93 % | ||||
| Storage environment | Temperature: -20 °C ~ +70 °C Humidity: 20 % ~ 93 % | ||||
| Remote control can be Added | 80(maximum number) | ||||

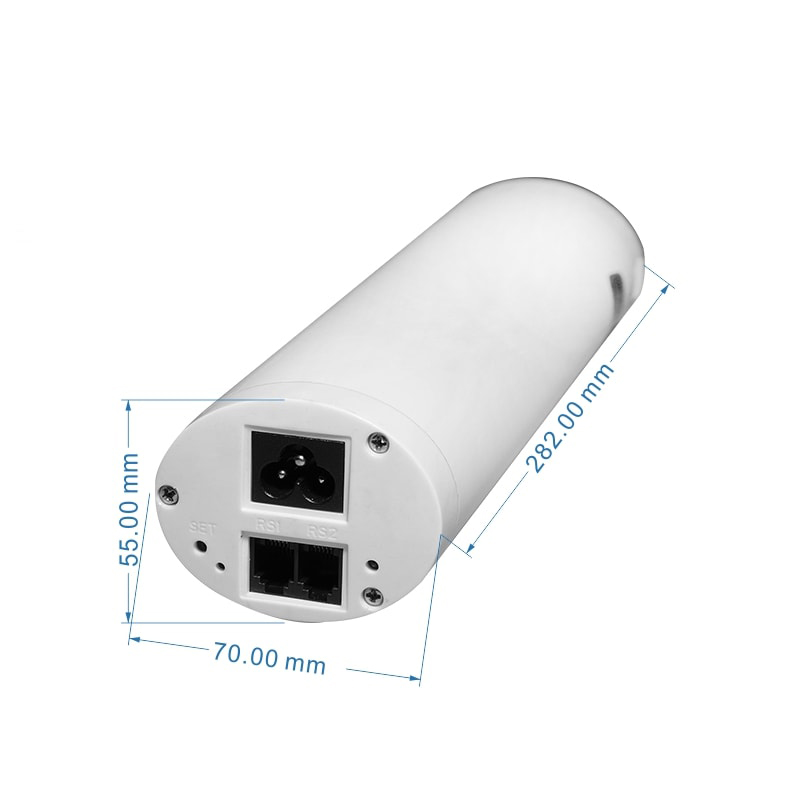

| Size | 282*70*55mm | ||||
Our Service
1. Your inquiry related to our products or prices will be replied in 12 hours;
2. Well-trained and experienced staffs to answer all your inquires in fluent English;
3. OEM&ODM,any your customized products we can help you to design and put into production;
4. Protection of your sales area, ideas of design and all your private information;
5. Deliver by air mail or ship for your orders.
For Order
1. Accept OEM/ODM;
2. Print logo on the case and package;
3. Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.
4. Minimum Order:100 pcs(accept trial order);
5. Delivery Details:within two weeks.
YET848PC-WiFi AC220V 433mhz Universal Multi Frequency Tubular Garage Door Motor Controller for Leaves Shutter
Company Profile
Packaging & Shipping
Exhibition
FAQ
Q1.Could I order one piece for sample to test the quality?
Yes, sample is available.
Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
