YET480-2 433MHZ Universal 2CH RF Receiver AC/DC 9-24V Small Size Open Code Garage Remote Control Transmitter Switch

YET480-2
Quantity
Contact Now


YET480-2 433MHZ Universal 2CH RF Receiver AC/DC 9-24V Small Size Open Code Garage Remote Control Transmitter Switch
433MHZ Universal 2CH RF Receiver
433MHZ Universal 2CH RF Receiver
YET480-2 433MHZ Universal 2CH RF Receiver AC/DC 9-24V Small Size Open Code Garage Remote Control Transmitter Switch
433MHZ Universal 2CH RF Receiver
433MHZ Universal 2CH RF Receiver
YET480-2 433MHZ Universal 2CH RF Receiver AC/DC 9-24V Small Size Open Code Garage Remote Control Transmitter Switch
433MHZ Universal 2CH RF Receiver
433MHZ Universal 2CH RF Receiver

Main Technical Specifications

Operating Voltage

AC/DC 9-24V

Operating Temperature

-20℃ - +80℃

Receiver Sensitivity

≥-105dBm

Operating Frequency

433mhz

Contact Current

≤5A

Remote Control Capacity

1000 buttons

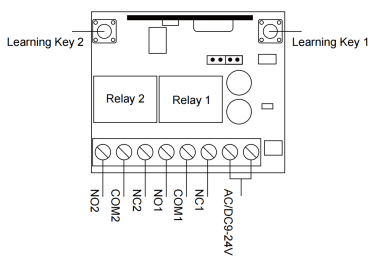

Wiring Diagram

433MHZ Universal 2CH RF Receiver


Output method selection

Momentary--No jumper caps inserted

433MHZ Universal 2CH RF Receiver

Delay 3 seconds--jumper inserted on 3-4

433MHZ Universal 2CH RF Receiver

Latched (self-locking)--jumper inserted on 1-2

433MHZ Universal 2CH RF Receiver

Interlocked--jumper inserted on 1-2 and 3-4

433MHZ Universal 2CH RF Receiver



Our Service

1. Your inquiry related to our products or prices will be replied in 12 hours;
2. Well-trained and experienced staffs to answer all your inquires in fluent English;
3. OEM&ODM,any your customized products we can help you to design and put into production;
4. Protection of your sales area, ideas of design and all your private information;
5. Deliver by air mail or ship for your orders.

For Order

1. Accept OEM/ODM;

2. Print logo on the case and package;

3. Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.

4. Minimum Order:100 pcs(accept trial order);

5. Delivery Details:within two weeks.

Company Profile

433MHZ Universal 2CH RF Receiver Factory

Packaging & Shipping

433MHZ Universal 2CH RF Receiver Company

Exhibition

433MHZ Universal 2CH RF Receiver Manufacturer Exhibition

FAQ

Q1.Could I order one piece for sample to test the quality?
Yes, sample is available.

Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.

Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.

Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.

Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
