Wireless multi channel 433.92mhz long distance remote control
- Brand Name:YET
- Model Number:YET2169 long distance remote control
- Color:White
- Place of Origin:Guang Dong,China
- Material:ABS
- Code:Learning code long distance remote control

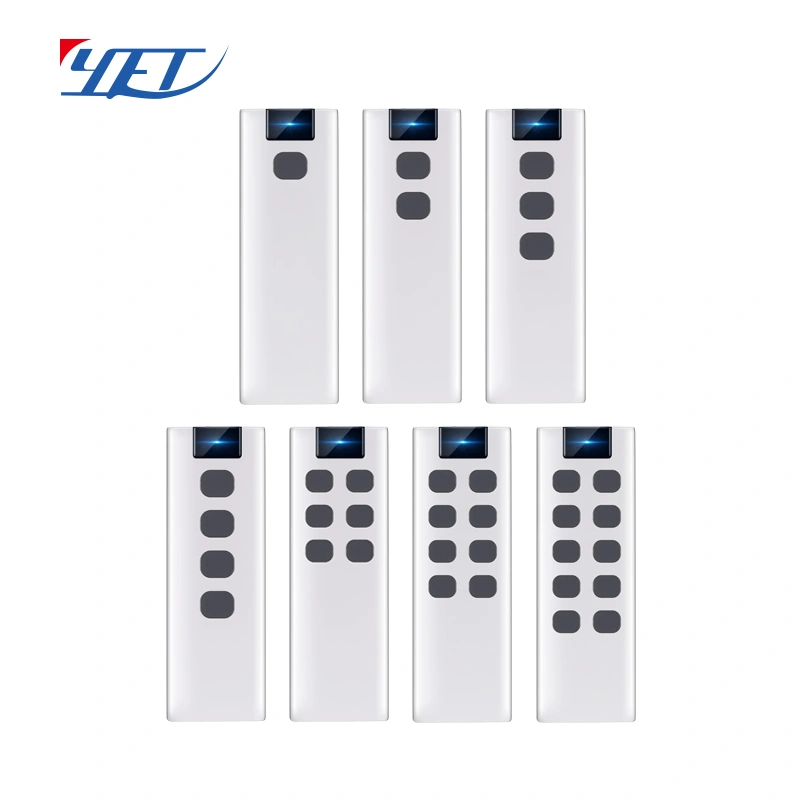

- Button:1/2/3/4/6/8/10 Buttons
- Function:Automatic, RF long distance remote control

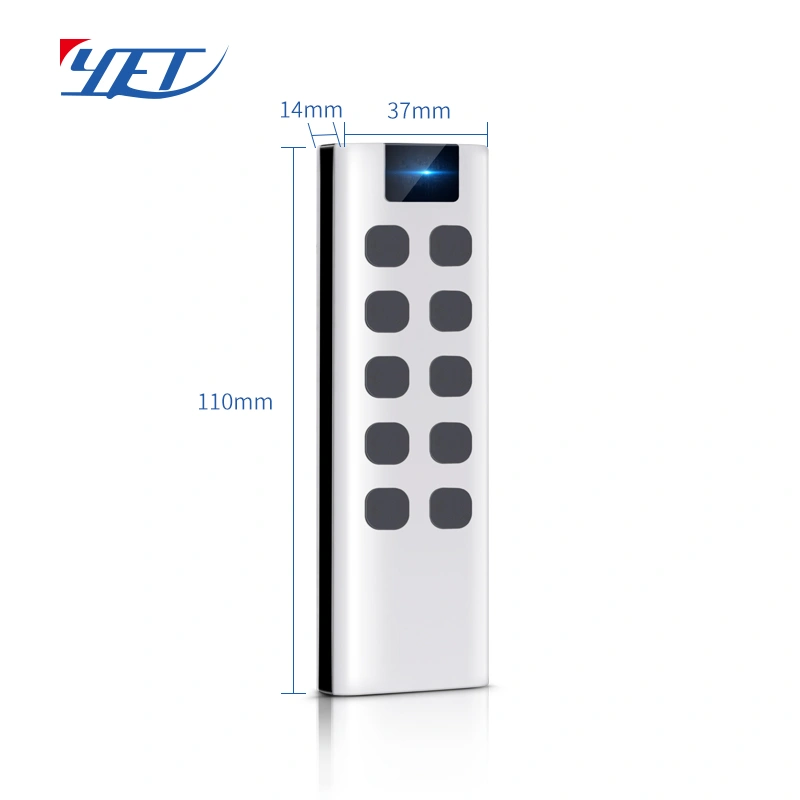

- Dimension:37*14*110mm
- Voltage:12v/23A
- Frequency:433MHZ and others
- use:Home application, garage door, gate door and more
- operating current:within 12mA
- distance:>100m
- Chip:learning code 1527
- Certification:ce
Smart home 433.92mhz decode HS1527 chip range long distance remote control YET2169
Characteristics: |
1. Various cases and design for your choice |
2. Accept OEM and ODM |
3. Plastic and ABS materials |
4. High stability: adopting imported SMT component SAW and super high frequency audion(6.5G) |
Main TechData |
1.Operating voltage: 12V |
2.Operating Current:<=12mA |
3.Operation frequency:433MHZ and others |
4.Transmit Power>=10mW |
5.Transmission speed:50-60KHz |
6.Frequency windage: ±0.2MHz |
7.Transmission distance:100-200m (open space) |
8.Oscillation resistance: Per customer's request |
9.Button: 1/2/3/4/6/8/10 |
10.Color: White |
11.Chip and operating mode: |
learning code HS1527 long distance remote control |

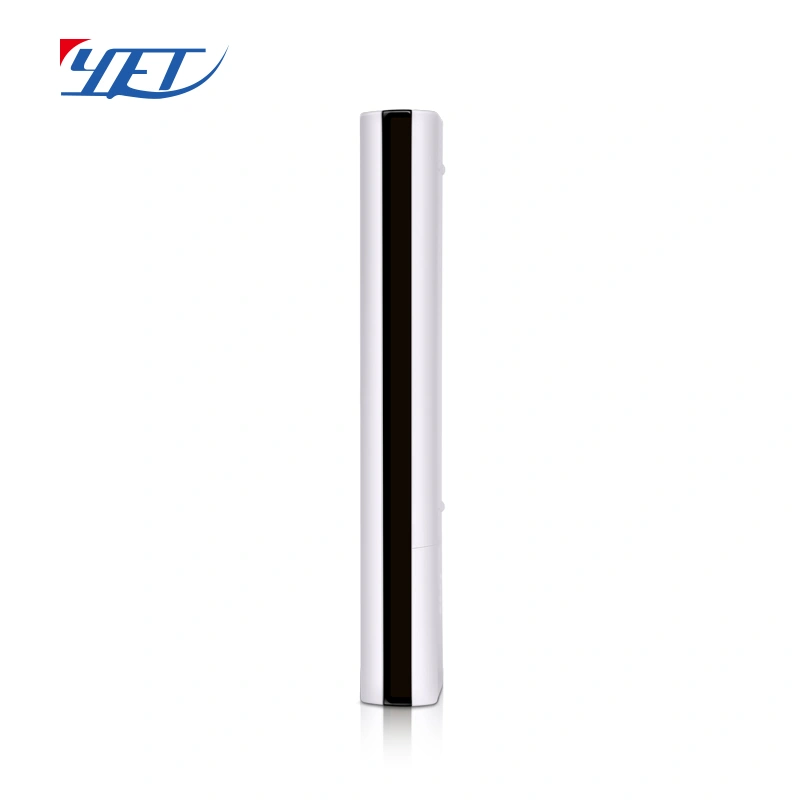

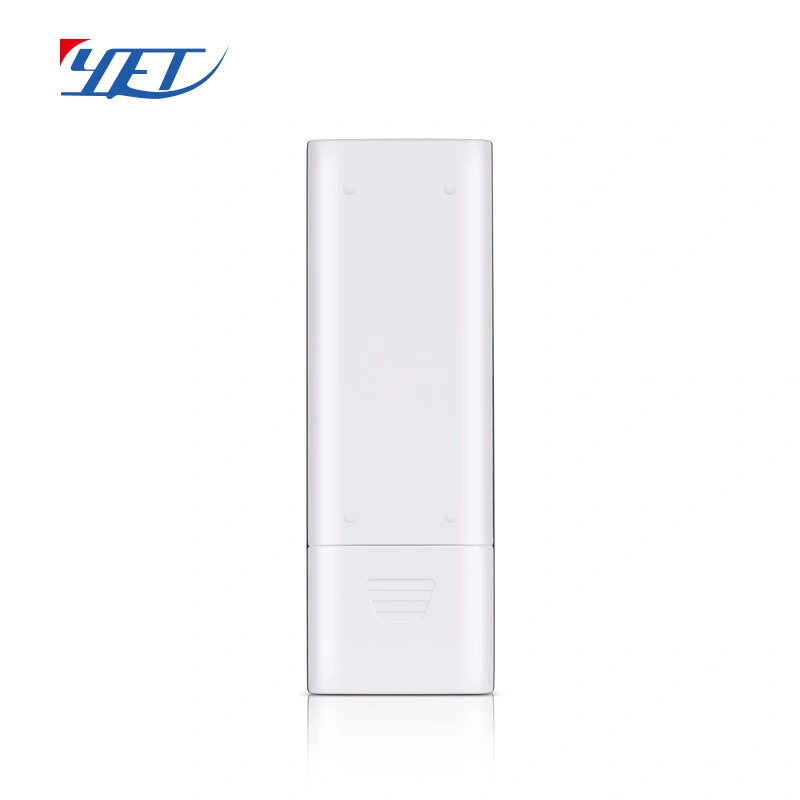

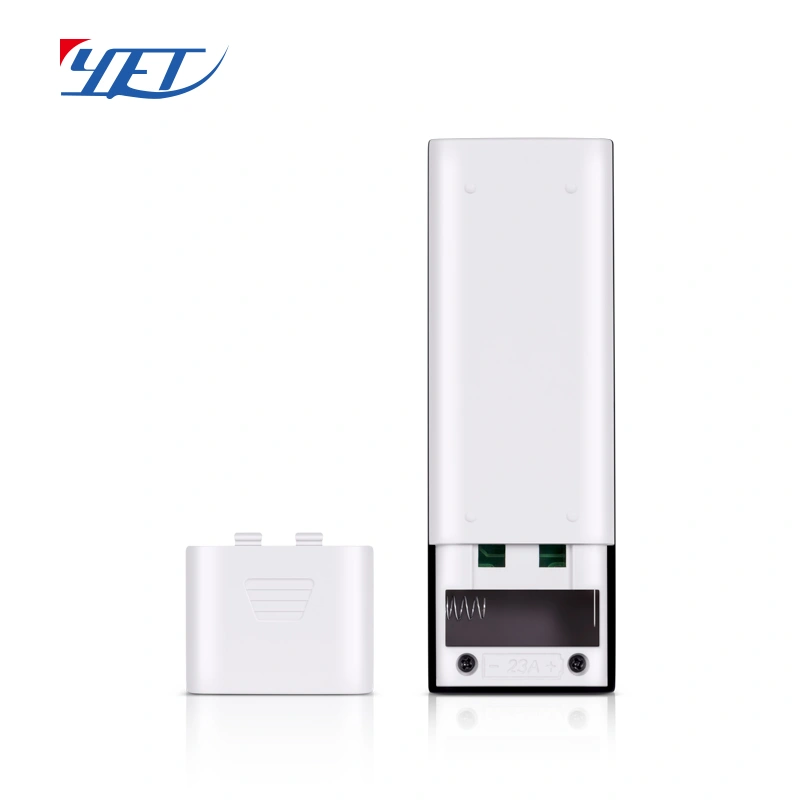

Product pictures:（long distance remote control YET2169）
Wireless multi channel 433.92mhz long distance remote control
Methods of operation
1. Clear out code:
Press A and B at the same time, two seconds later, LED flashes three times, followed by a continuous fast blinking. Indicates that the remote control code stored was deleted.
2. Duplicating (learning)
Right Hands press original remote control A, and left hand press remote control duplicator A', 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A’,B-B’) three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. That's mean successfully copied.
3. Recovery code
Press A and C at same time , 3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.
The other way, you can delete all and relearn them again
Package and Delivery
Package details:
Standard and strong carton.
100/150pcs / Carton.
Delivery way:
We are ship goods by DHL, Fedex, UPS, TNT at usual. If you prefer others shipment way, we also can ship them to you as your requirement.
Delivery time:
Sample:3-5 working days.
Bulk order: 7-12 working days.
Payment way:
We accept Paypal, TT, Western union, Bank transfer etc.
Established in 2005, Shenzhen Yaoertai Technology Development Co., Ltd is a high-techcompany specialized in researching, producing, selling and offering service of security products.With 13 years experience in wireless remote control system of automatic door, window and smart home control system, YET aim to be the first brand in this field.
YET's products including wireless transmitter and receiver system, wireless motor controlling system, wireless smarthome control system, wirelesssmart home alarm system.
YET’s excellent R &D team brings the advanced and mature design project. All the raw materials from the world famous brands, the professional imported production equipment ensure the fast production and stable quality. We also strictly execute the ISO9001 quality management system in our daily management. We also accept OEM and ODM to meet all customer’s demand.
FAQ
How could I choice a right remote control?
You can take a picture of your remote control’s PCB board to us. We will analyze it for you.
Do you have receiver can match my remote control?
Yes, of course. We have 1/ 2/ 3/ 4/ 6/ 8/ 12 channels with 12/ 24/ 220V receiver. You can choice your need model.
Can you write clients programs on the PCB of the remote control?
We support OEM & ODM. We have professional engineers; they will do their best to help you in PCB design or program.
What is the MOQ of your remote control?
The MOQ is 100pcs after you have tested the sample.
Can you do the custom-made shell of remote control?
Of course. We can make custom-made shell, but the MOQ is 2000pcs.
What is the latest remote control of your company?
China manufacturer rf waterproof remote control YET2132.
What should we do before your remote control work with our receiver?
You should press the learning button of your receiver and press the button of our remote control together.
