Single Inductive Loop Detector Automatic Gate Car Parking Access Control System AC100-240V Vehicle Boom Barrier

YET-DG001

Quantity

Contact Now

Single Inductive Loop Detector Automatic Gate Car Parking Access Control System AC100-240V Vehicle Boom Barrier

Technical Data

Vehicle Loop Detector	YET-DG001
Channel	1-CH
Power Supply	AC 100-240V (+/-10%)
Output Relays	3 A@250VAC
Signal holding time	Unlimited
Output mode	presence output
Reaction time	100ms

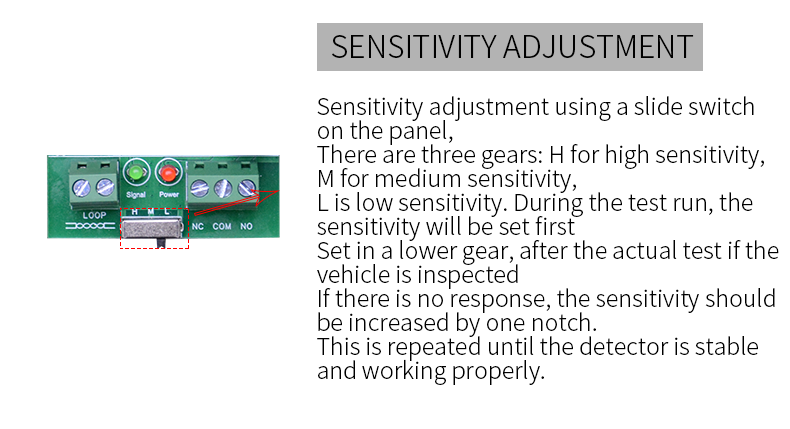

Sensitivity	3 levels
Net Weight	89.2G

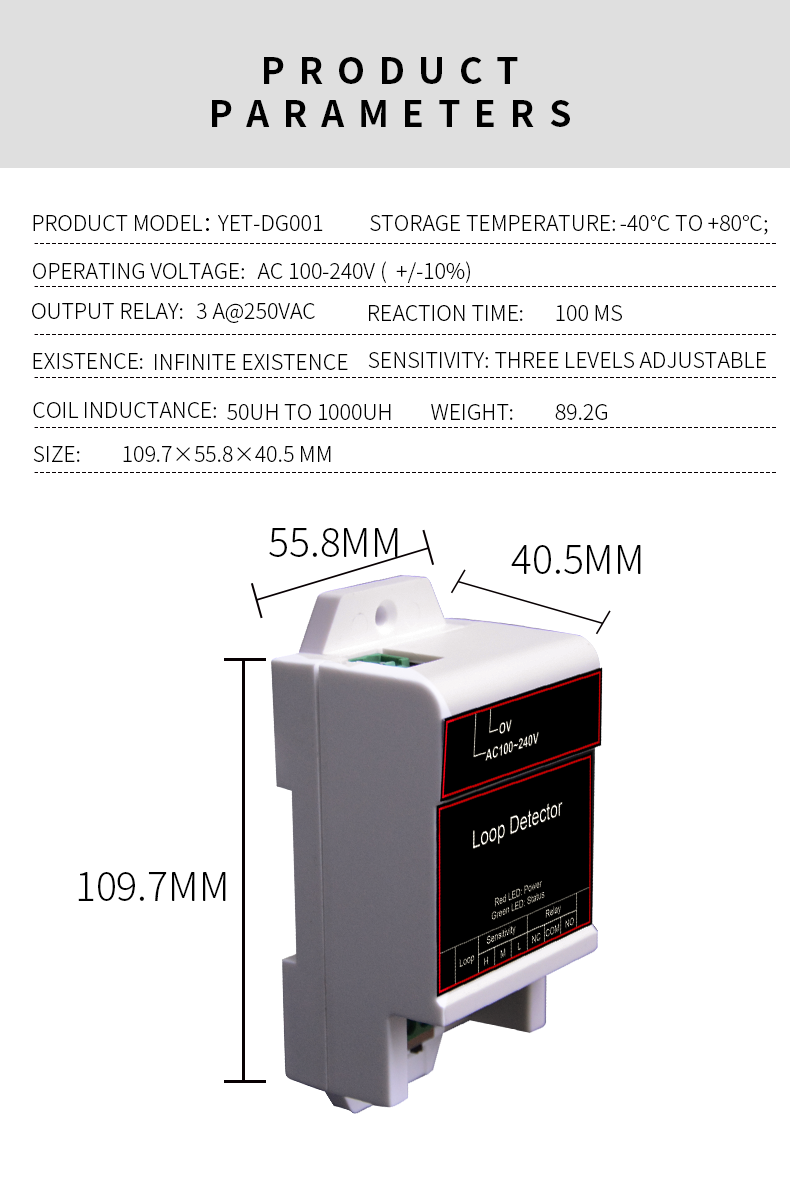

Size	109.7×55.8×40.5mm (L×W×H)
Loop Inductance	50μH~1000μH (Suggest 100μH~300μH)
Loop Cable Specification	≤20 meters, twisted at least 20 times per meter

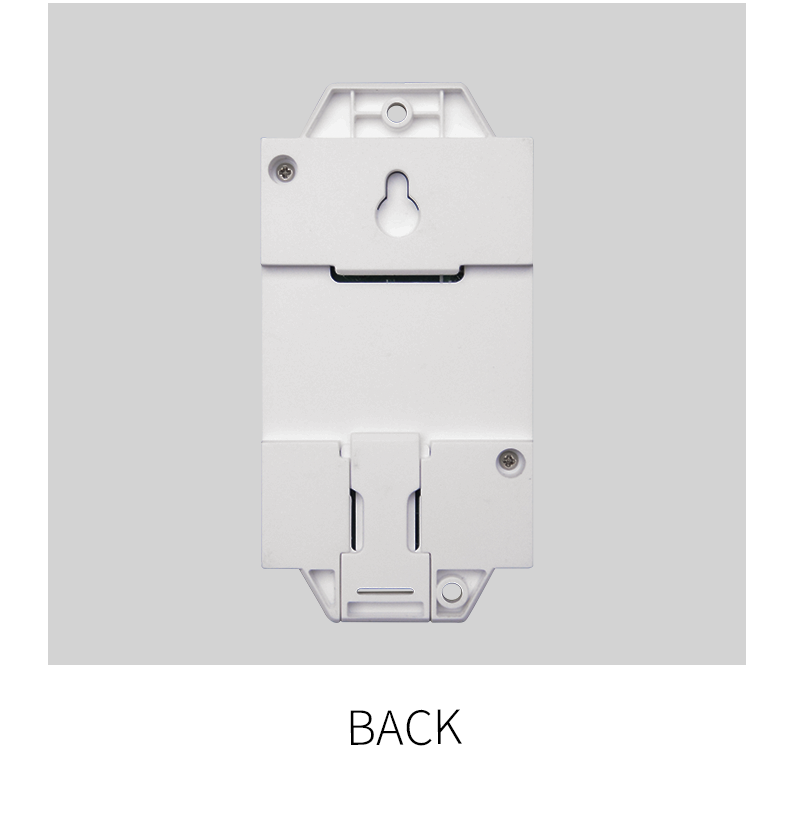

Installation method	guide rail installation or screw fixing
Signal Hold Time	10 Minutes
Operating temperature	-25℃-+65℃
Storage temperature	-40℃-+80℃

Specification

Single Inductive Loop Detector Automatic Gate Car Parking Access Control System AC100-240V Vehicle Boom Barrier

Output Mode

The output mode of the relay is the presence output, that is, when the vehicle enters the coil, it will be switched on until the vehicle leaves the coil; the relay will be disconnected.

Our Service

1. Your inquiry related to our products or prices will be replied in 12 hours;
2. Well-trained and experienced staffs to answer all your inquires in fluent English;
3. OEM&ODM,any your customized products we can help you to design and put into production;
4. Protection of your sales area, ideas of design and all your private information;
5. Deliver by air mail or ship for your orders.

Car Parking Access Control System 220V Induction Vehicle Loop Detector Boom Barrier Drop Arm Barrier

For Order

1. Accept OEM/ODM;

2. Print logo on the case and package;

3. Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.

4. Minimum Order:100 pcs(accept trial order);

5. Delivery Details:within two weeks.

Single Inductive Loop Detector Automatic Gate Car Parking Access Control System AC100-240V Vehicle Boom Barrier

Company Profile

Packaging & Shipping

Exhibition

FAQ

Q1.Could I order one piece for sample to test the quality?
Yes, sample is available.

Q2.Do you accept OEM order?
Yes. We customized a lot of items for our clients.

Q3.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.

Q4. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.

Q5.Do your products carry warranty?
Yes,12 months or more and permanent service.
