$1.00 - $3.00 / piece
- Brand Name:YET wireless rf remote control 315
- Model Number:YET 2132 wireless rf remote control 315
- Color:White, Gray, customized
- Place of Origin:Guangdong, China
- Material:ABS, Metal
- Code:Rolling Code, Fixed Code, Learning Code, Copy Code Optional
- Button:4 Buttons rf remote controller 433mhz
- Function:Automatic, RF transmitter remote control switches
- Frequency:433 / 315 / 868 / 330 garage door opener
- Launch distance:50-100meters rolling code wireless transmitter
- waterproof IP:55
- Working voltage:DC 12V
- Transmission speed:50-60KHz
- Frequency windage:±0.2MHz
- functions:wireless rf remote control 315
- Certificate:CE FCC ROHS
- working chip:fixed learning copy rolling code wireless transmitter
- channel:4 channel garage door opener
- Certification:ce

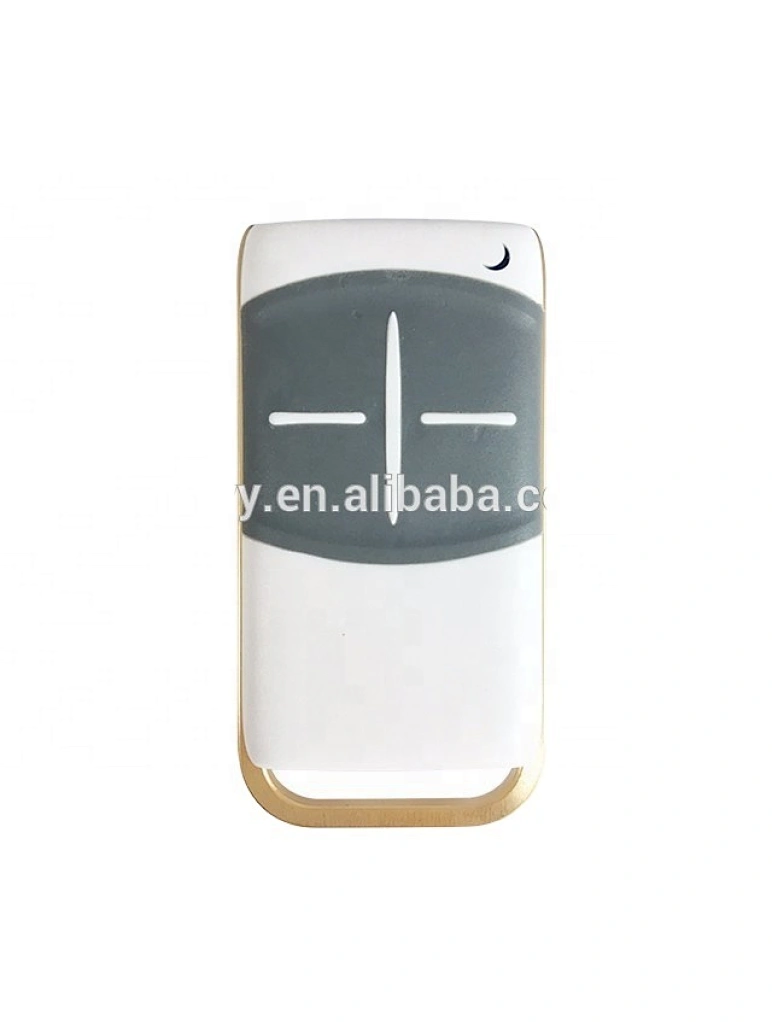

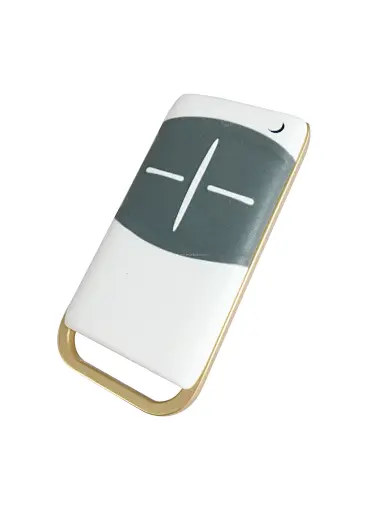

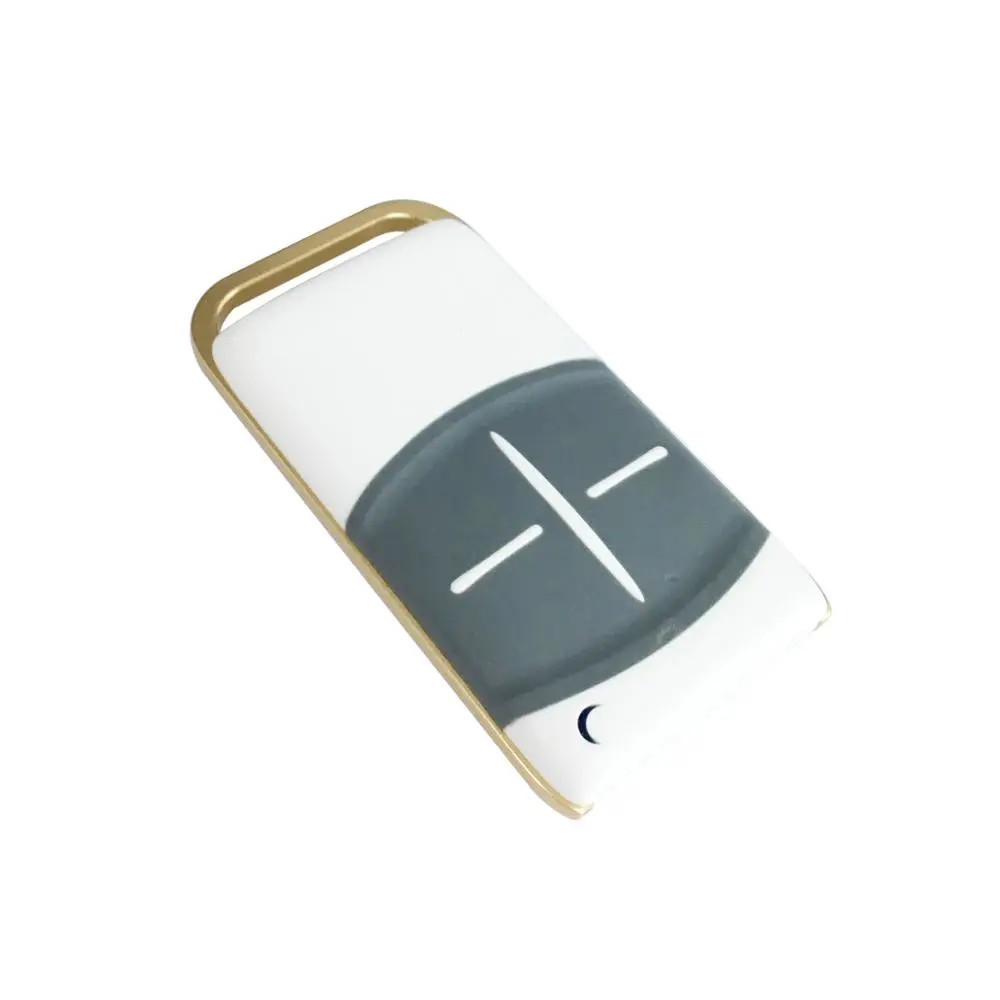

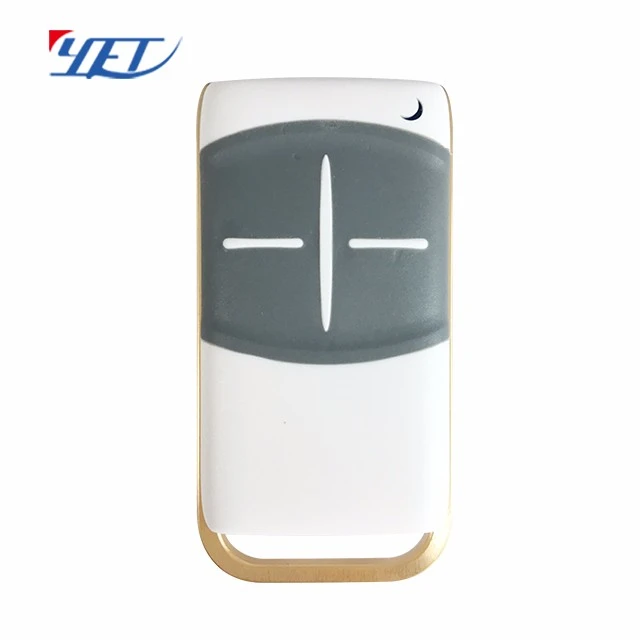

waterproof remote control switches high security rolling code wireless transmitter garage door opener YET 2132
1.Use range
the 4-Channel wireless rf remote control 315 duplicator used for cars, garage doors , gates doors, alarm systems etc. fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this 4-channel garage door opener with code learning functions and you'll always have a back up.
Duplicate Your Existing Remote Controllers:
- Vehicle central locking systems
- Garage doors
- Electronic gates
- Electrical appliances
- Car sunroofs
- Heating systems
| Buttons | 4 |
| Operating voltage | DC12V |
| Operating current | 10MA |
| Operating frequency | 315Mhz, 433Mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz |
| Ambient temperature | -10 °C ---- +70 °C |
| Use | Cars, garage doors , gates doors, alarm systems etc. |
| encoding type | fixed code, learning code, rolling code |
| Copy type | Fixed code and Learning code |
3.key features
- Prevents loss and replaces your old remote controls
- Self learning remote control
- Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more
- Copies most radio frequency fixed code remote controls
- Learning face to face in secon
4. compatible encoder IC list
- PT2240 / PT2242
- 2260 / 2262 / 2264
- EV1527 / FP527
- HT12D / HT12E
- HT600 / HT640 / HT680
- HT6010 / HT6012 / HT6013 / HT6014 / HT6207
- AX5026-1 / AX5026-2 / AX5026-3 / AX5026-4
- AX5326-3 / AX5326-4
- SMC918 / MC145026
1. Press button A and B at the same time until LED flash.
2. Release button B and keep pressing button A, then press button B 3 times,
LED flash fast indicate succeed to clean code (can release button A now)
Step 2: Copy code from original transmitter
1.Put duplicator aside of original transmitter, as close as possible.
2.Press and hold button A of original transmitter and button A of duplicator at the same time, until duplicator’s LED flash and keep lighting.
3.Release both buttons, finish code copy, and copy other button in same way.
Return Function:
Press and hold button C and D for 3 seconds, the LED flash, ok all buttons return back to the latest copy codes.
6. Other new wireless remote control duplicator list
waterproof remote control duplicator of our factory
universal wireless remote control duplicator package
Neutra white box for each
100 pcs in medium box
500 ppcs in master carton
Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote control, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services.
CE, ROHS Certificates
1. what's your minimum order? can i buy samples for testing?
the Minimum order quantity is 100 pcs in our factory. samples are ok.
2. what time can you deliver my order?
samples in 3 days, bulk order 7 days, above 1000pcs in 15 days after payment.
3. do you have gurantee for my order?
battery gurantee for 6 months, remote control and receiver gurantee for 1 year ( except man-made sabotage)
4. what's your best price?
we make different models and different chip, please advise detailed parameters for goods that you need.
