2-channel Universal ON/OFF Switch receiver controller DC12V/24V remote rf receiver kit for roller shutters rf switch
price
$8.65 - $9.02 / piece
YET 402PC-V2.0
1 piece
Quantity
- Warranty:1 Year
- After-sale Service:Free spare parts, Return and Replacement
- Project Solution Capability:total solution for projects, R&D service
- Application:garage doors
- Design Style:Modern
- Place of Origin:Guangdong, China
- Brand Name:YET
- Model Number:YET 402PC-V2.0 gate controller
- Type:RF
- Use:universal
- Voltage:12v/24v
- Frequency:315MHz(optional between 260 and 440MHz)
- Quiescent Current:12mA
- Sensitivity:-105dB
- Weight:60g/per
- Operating Temp:40C~+60c
- Modulation Mod:ASK
- Transfer:Wireless rf
- Product type:DC12V/24V 2-channel universal receiver remote controller
Product Description
Product Name | Super Universal 2 channel 433mhz Wireless Receiver RF controller |
Material | ABS |
Function | outputs two channels ON&OFF wireless RF signals |
Package | poly bag or gift box |
Electronic Parameter:
input voltage | AC.DC12-24V |
Channel | two channels |
Memory | 400 codes |
work with | all fixed code and some rolling code |
output mode | Momentary,latching |
Product performance description
The product is a general smart receiver universal controller and it can be matched with the majority of the
wireless receiver in the market, including fixed code (2262, 2260, 2264, 5326, M1E,
M5E etc.), learning code(1527, 2240, 6P20B, 6P20D etc.), rolling code(HCS301,
HCS300,HCS200,HCS201,HSC100,HCS101 etc.) and a part of customized remote
controller.
wireless receiver in the market, including fixed code (2262, 2260, 2264, 5326, M1E,
M5E etc.), learning code(1527, 2240, 6P20B, 6P20D etc.), rolling code(HCS301,
HCS300,HCS200,HCS201,HSC100,HCS101 etc.) and a part of customized remote
controller.
Details Images

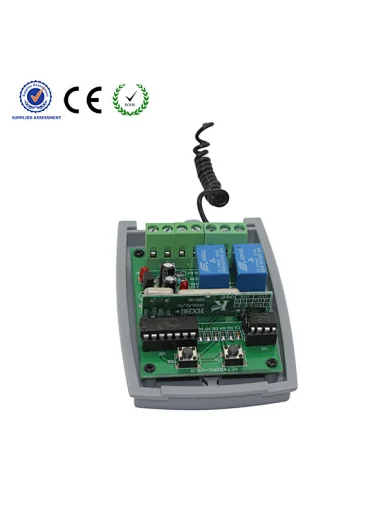

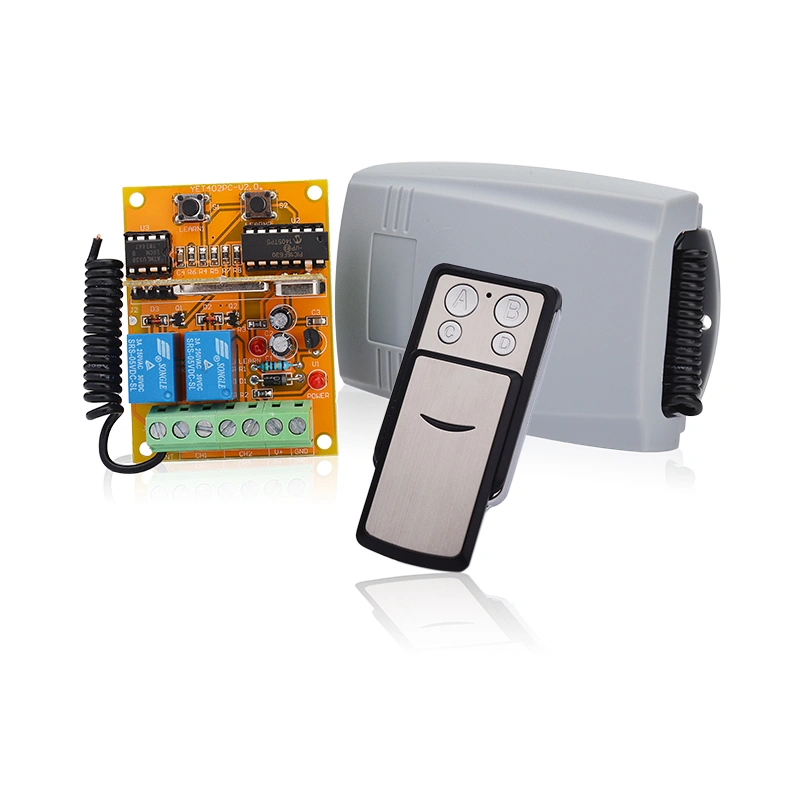

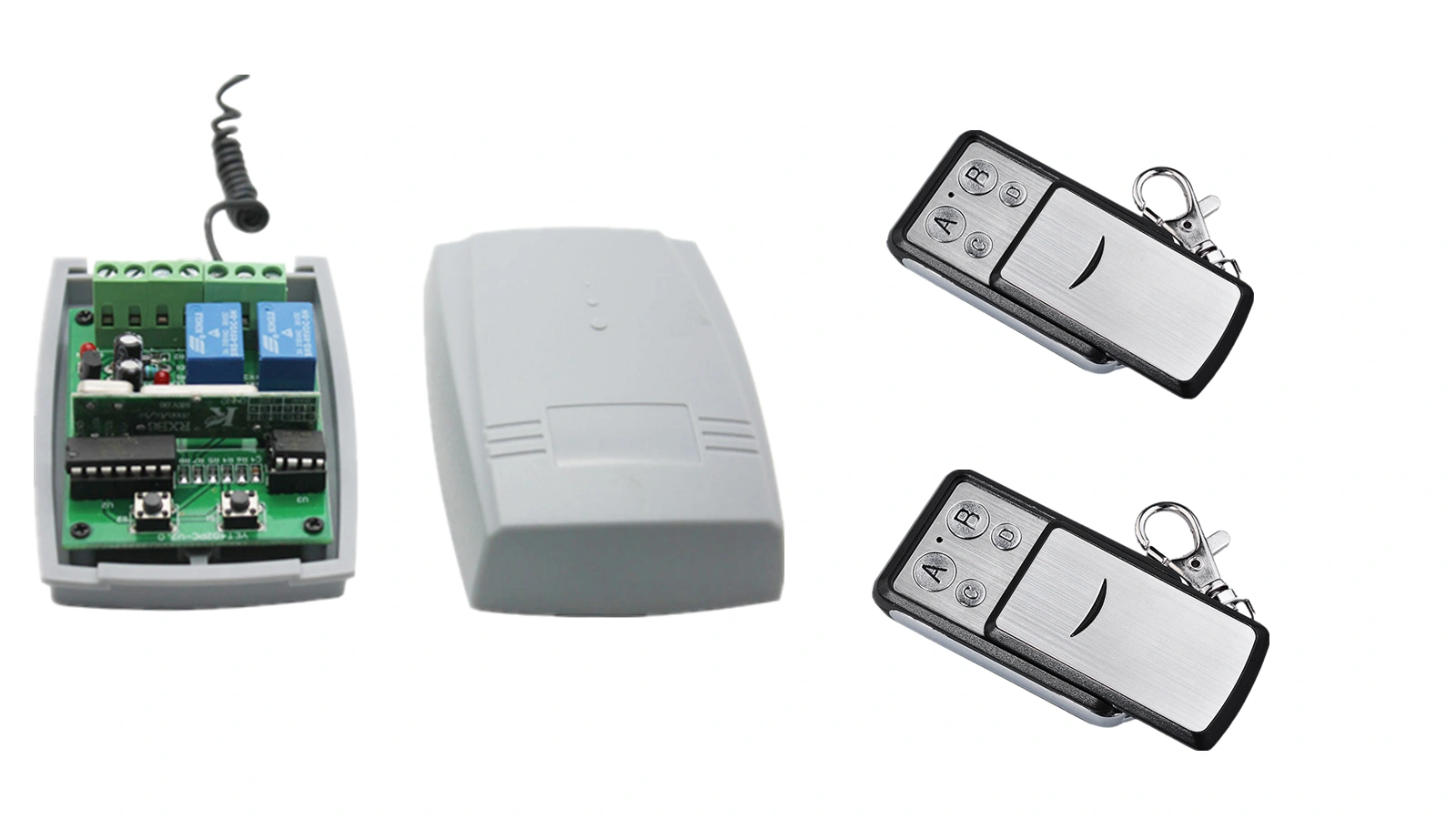

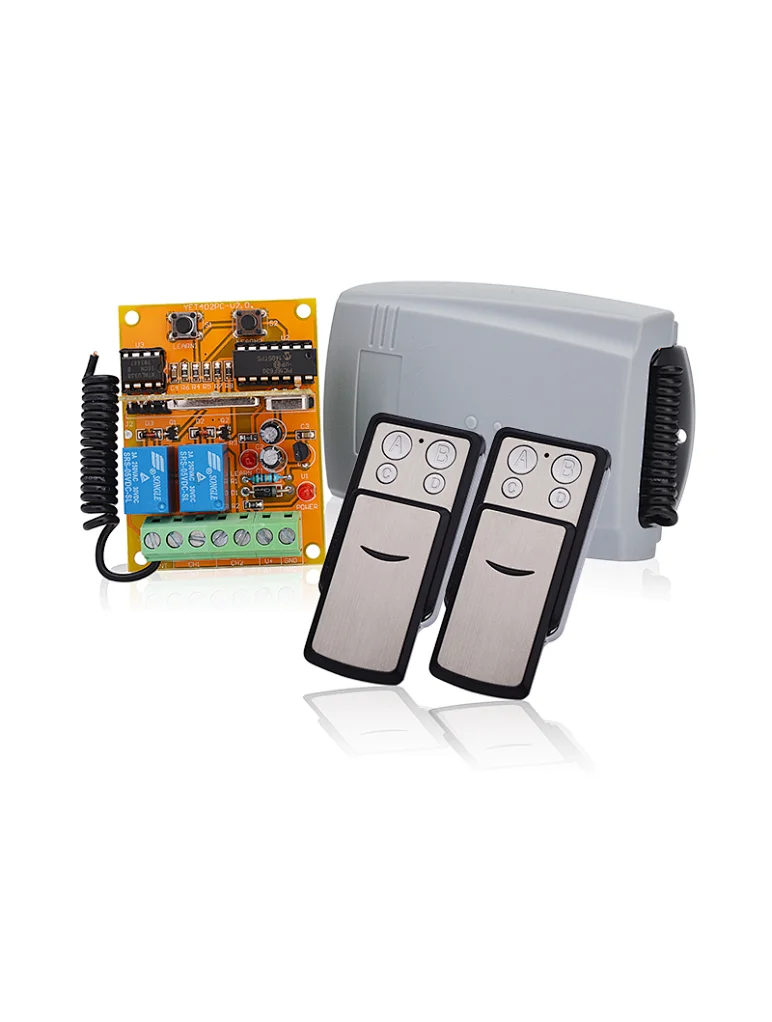

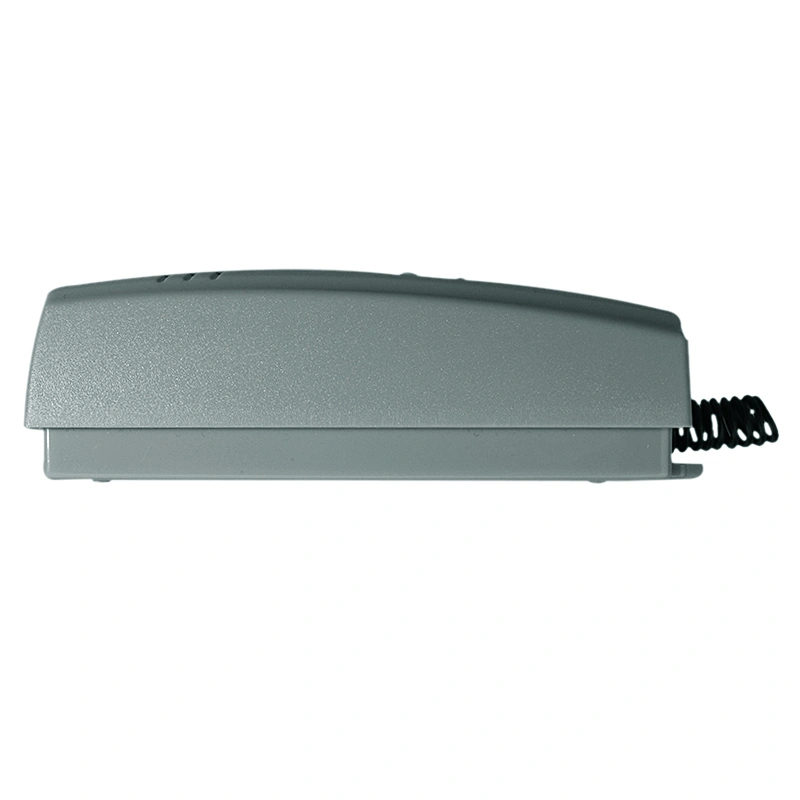

2 channels wireless receiver controller 12V 24V remote controller switch
super compatibility: work for all fixed code and most of rolling code remote controls

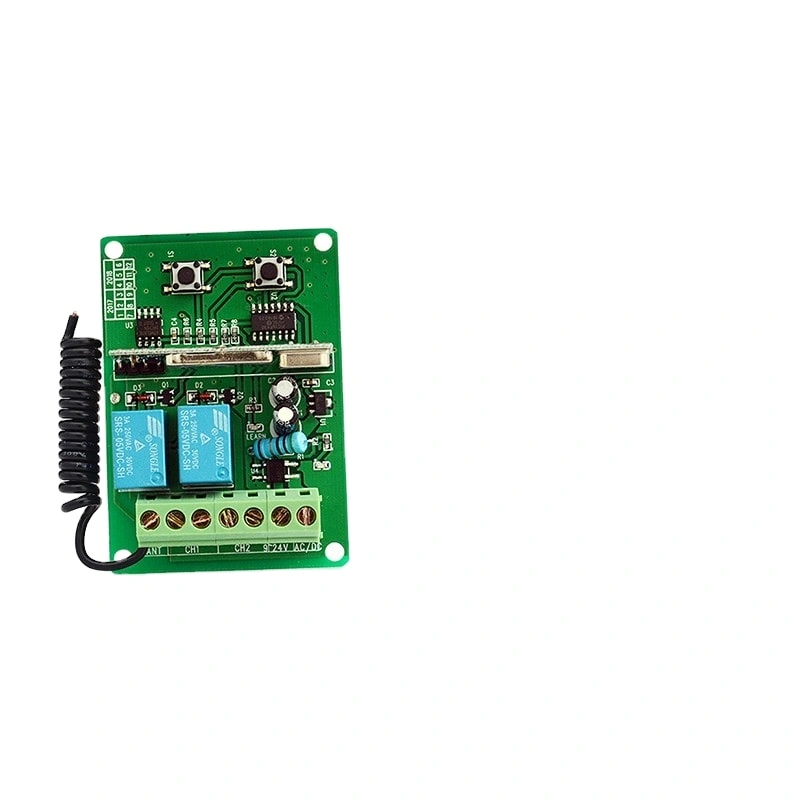

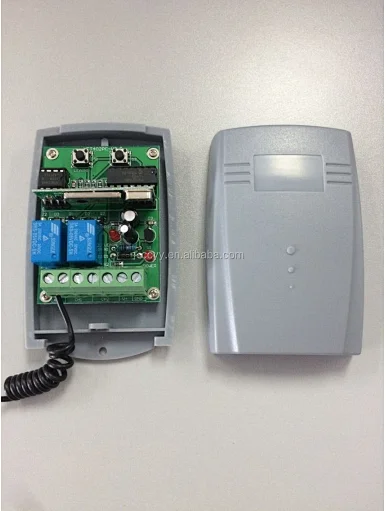

high quality grade electronic circuit board

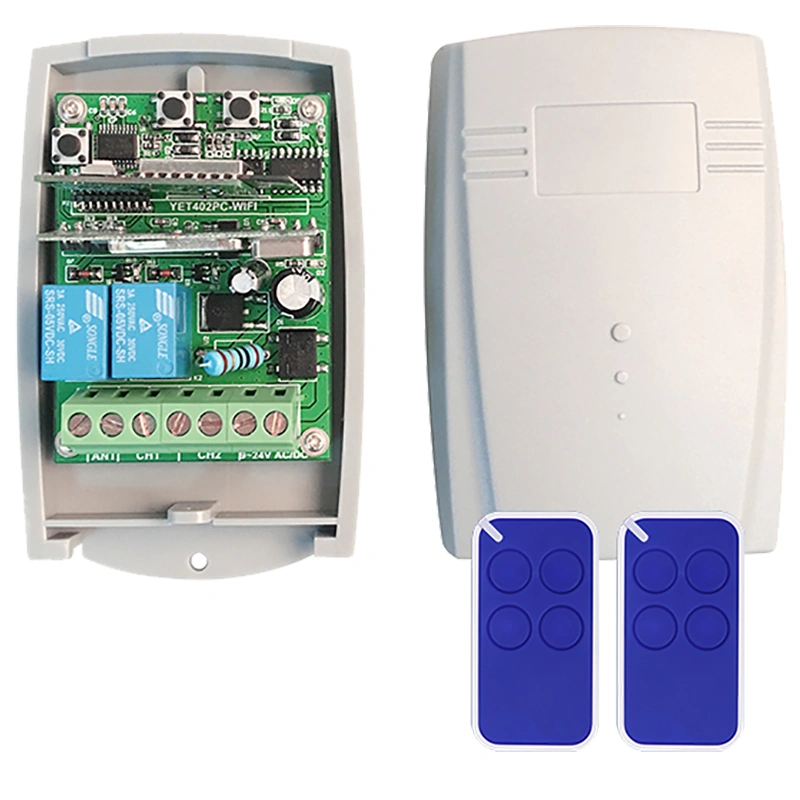

400 codes large memory,multi style remote controls to pair
Product Usage

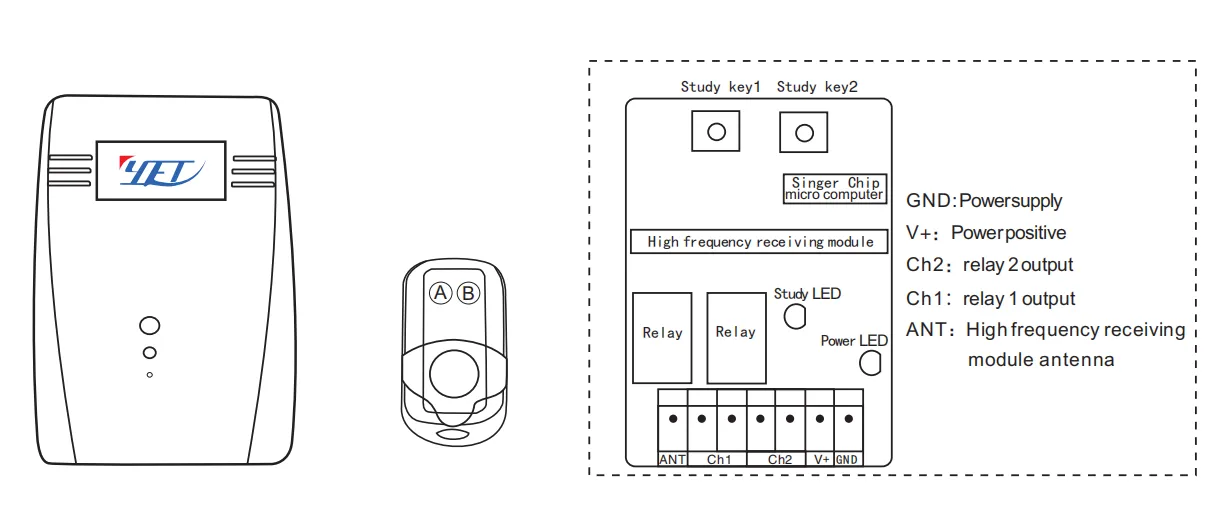

Methods and steps for learning and clearing code
Press the learning button on the receiver and then release it after LED lamp is lit and
the receiver enters into the learning state (At this moment, L E D lamp is off). After that,
press the remote control button that is required to control the controller. If LED lamp
on the receiver flashes for 5 times and then is off, it indicates that the learning is
success. The remote controller, studied by the learning button 1 on the controller,
corresponds to the relay 1; likewise , the learning button 2 corresponds to the relay 2.
Once the learning starts, only inching is available.
If the remote control is lost and it intends to fail the entire remote controller, long press
the learning button 1 or the learning button 2 (more than 5S) until LED lamp is off and
then the receiver will automatically clear the memory contents. If it is to be reused,
just study it once again.
the receiver enters into the learning state (At this moment, L E D lamp is off). After that,
press the remote control button that is required to control the controller. If LED lamp
on the receiver flashes for 5 times and then is off, it indicates that the learning is
success. The remote controller, studied by the learning button 1 on the controller,
corresponds to the relay 1; likewise , the learning button 2 corresponds to the relay 2.
Once the learning starts, only inching is available.
If the remote control is lost and it intends to fail the entire remote controller, long press
the learning button 1 or the learning button 2 (more than 5S) until LED lamp is off and
then the receiver will automatically clear the memory contents. If it is to be reused,
just study it once again.
Description of product use effect
highly used for external switch of electrical gates,doors,as well as wireless switch for lighting control system,alarm control system etc.
Related Products
Packing&Shipping
each item packed in poly bag or gift box
Company Introduction

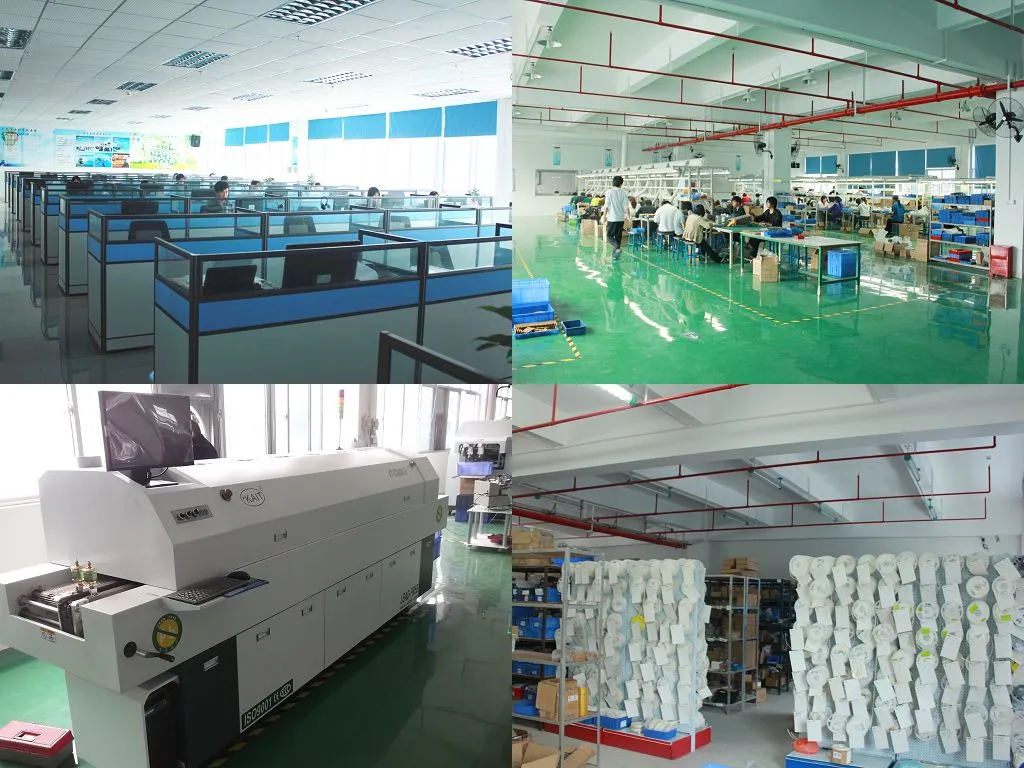

Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the
