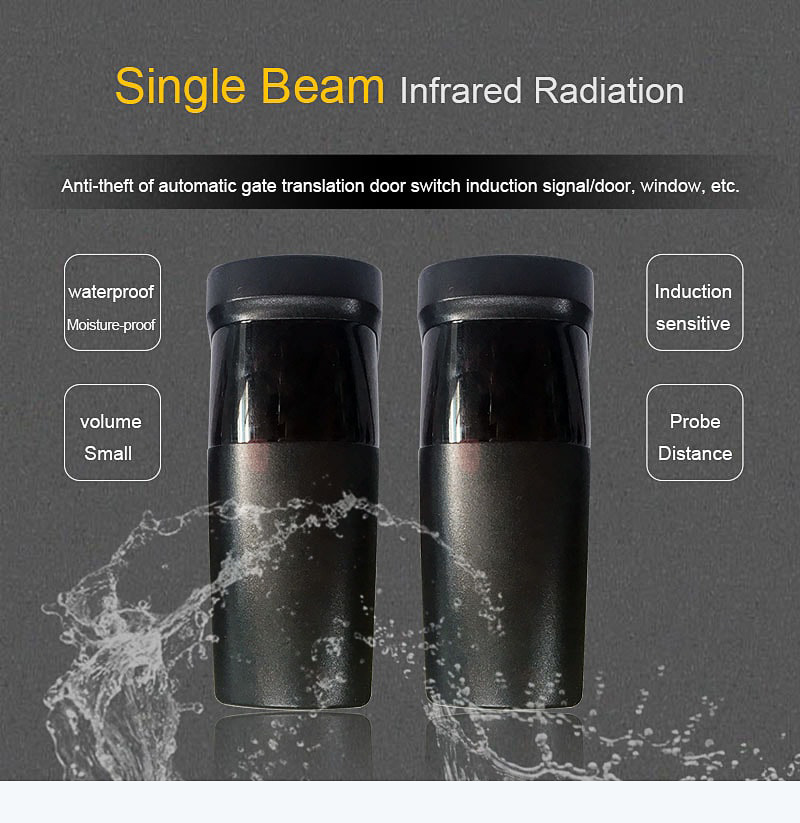

Automatic Door Infrared Sensor YET610 Active Infrared Radiation Universal Receiver 433mhz
YET610
minimum order
1 piece
Country of Origin
Shenzhen
Quantity
- Brand Name:YET, YET
- Model Number:YET610
- Color:Black
- Private Mold:Yes
- Place of Origin:Guangdong, China
- Material:ABS
- Function:Waterproof, Automatic, Universal infrared sensor
- Model:YET610
- Input power:DC/AC 12-24V
- Input Current:RX 15mA-TX 30mA
- Receiver distance:10-15m
- Infrared emission frequency:1.92Khz
- Use environment:-20℃~70℃
- Wavelength:940nm
- Packing:Standard Packing
Product Description
Features
1. Infrared emission frequency: 1.92Khz
2. Input power: DC/AC 12-24V
3. Input current: RX 15mA-TX 30mA
4. Wavelength: 940nm
5. Use environment: -20℃~70℃
3. Input current: RX 15mA-TX 30mA
4. Wavelength: 940nm
5. Use environment: -20℃~70℃

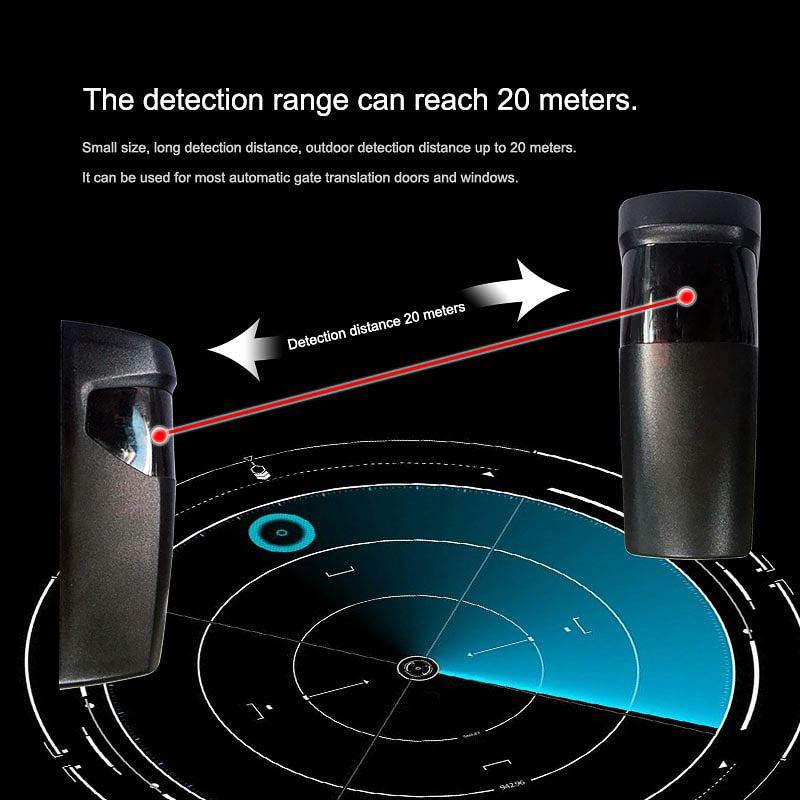

6.Transmitting range: 10-15m
7.Note: in case of heavy rain, fog and other bad weather conditions, the distance will be reduced by 30%.
Product introduction

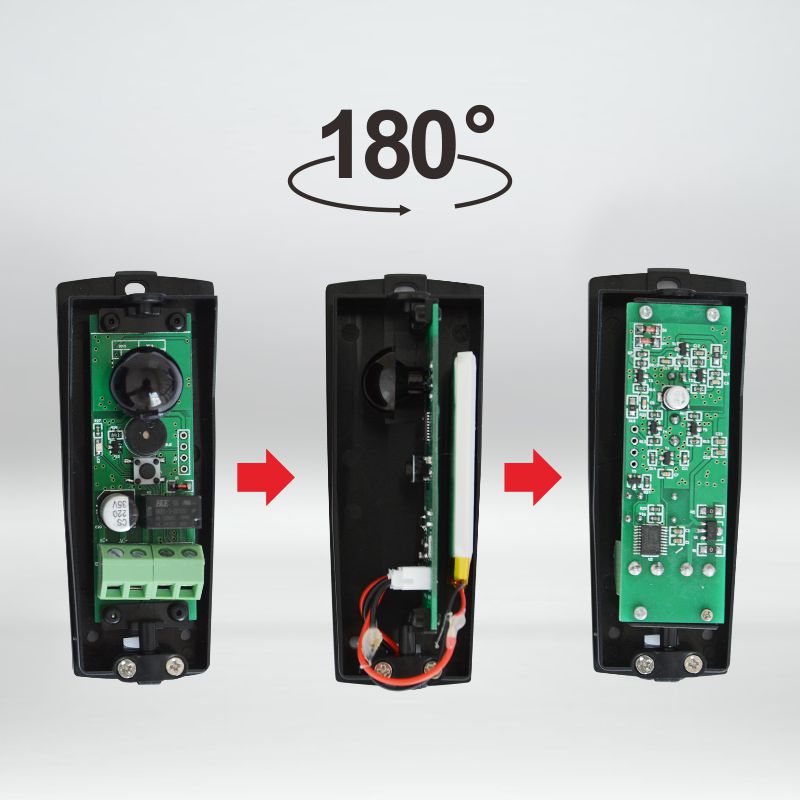

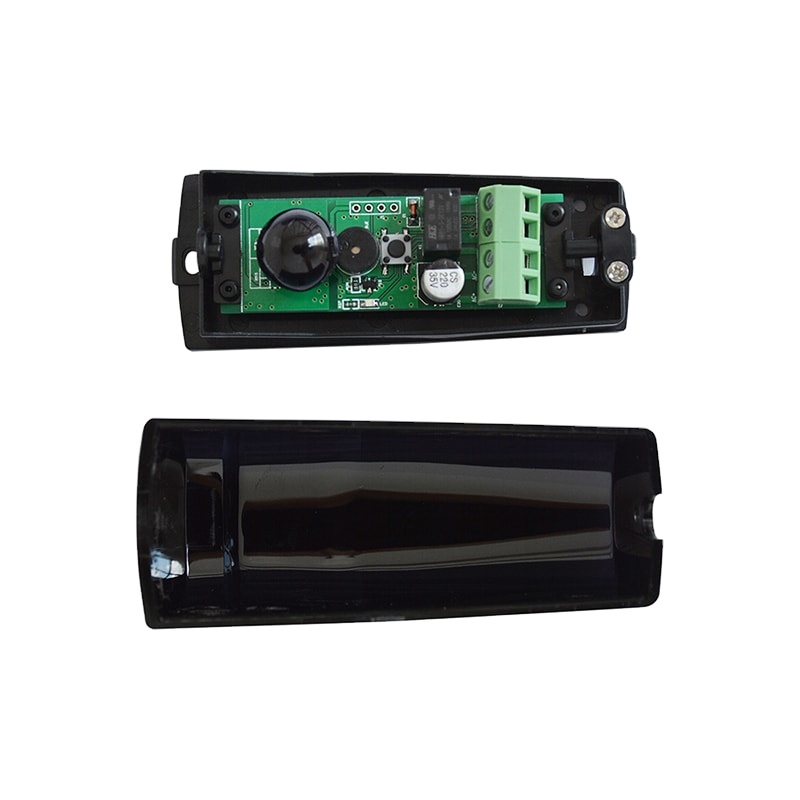

Installation Notes:The best installation height should be greater than 20cm, and the installation distance should not be less than 2 meters. When installing, the infrared protection device should be placed vertically and on the same horizontal line.LED1 and LED4 are power indicator lights, LED2 is an alarm indicator light, and LED3 is a signal strength indicator light (LED3 is normally on when debugging is completed).Note: Due to the high transmit power of this product, when the transmitter and receiver are too close, there will be no response. At this time, pull them apart for at least 1 meter and try again. When the installation distance is very close, the insensitivity phenomenon is found, and the condenser lens in the transmitting and receiving can be removed to improve the sensitivity.
Specification
item | value |
Brand Name | YET |
Model Number | YET610 |
Private Mold | Yes |
Place of Origin | China |
Province | Guangdong |
Material | ABS |
Performance | Waterproof, Automatic |
Infrared emission frequency | 1.92Khz |
Input current | RX 15mA-TX 30mA |
Input power | DC/AC 12-24V |
Packing | Standard Packing |
Use environment | -20℃～70℃ |
Wavelength | 940nm |
Function | Active infrared radiation for automatic door |
Angle of incidence | ＜±10º |
Maximum load | 1A max 30V |
Transmitting range | 10-15m |
Dimension | 108*35*30 mm |
Packing & Delivery
Packing:Inner packing: plastic bag, white box, color box, blister packing optional.Outer packing: 100pcs remotes packed in white middle box, then put in carton.
Delivery: Shipped by Sea, Train,Truck, Air, Express optional.

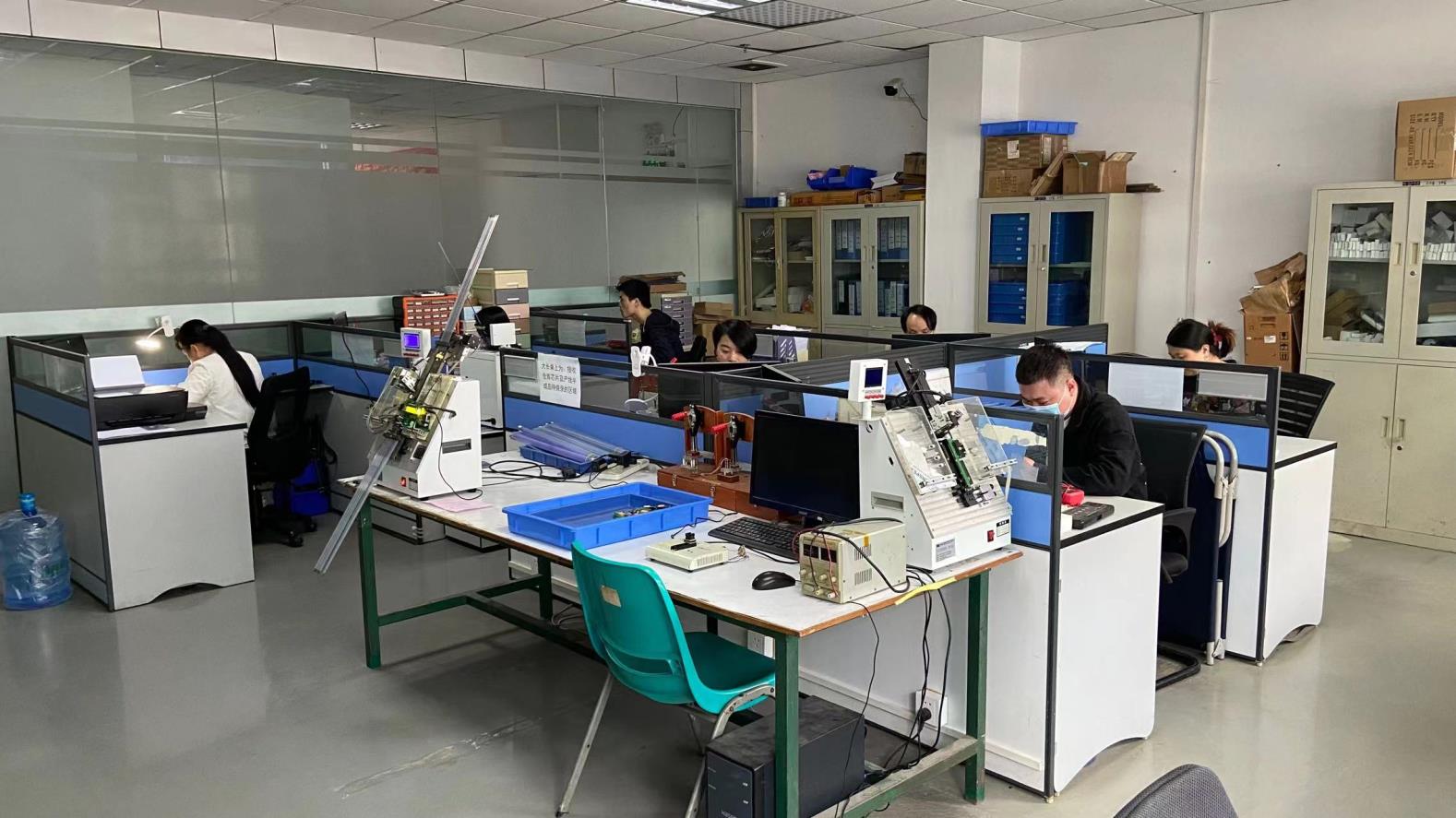

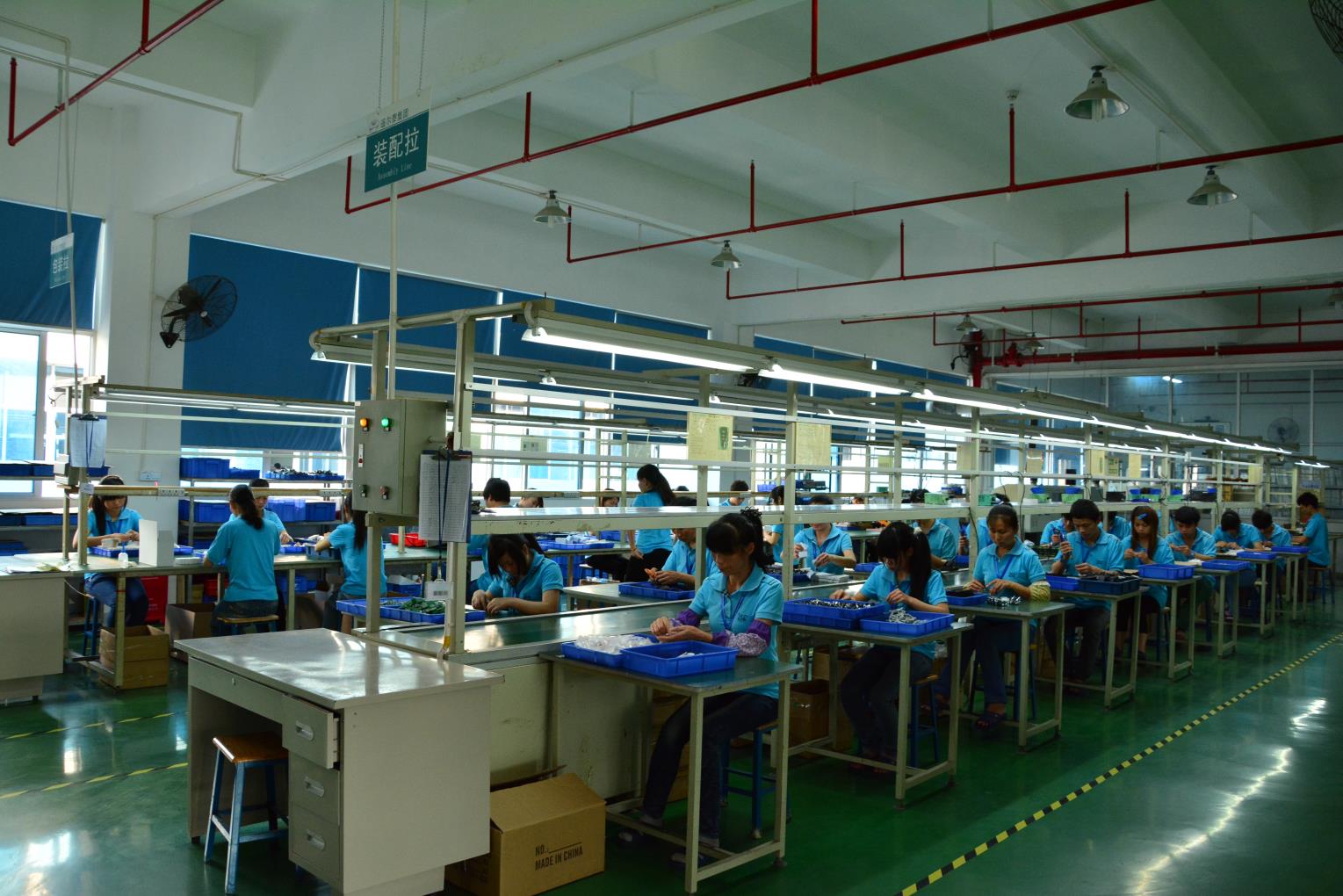

Company Profile
Our company

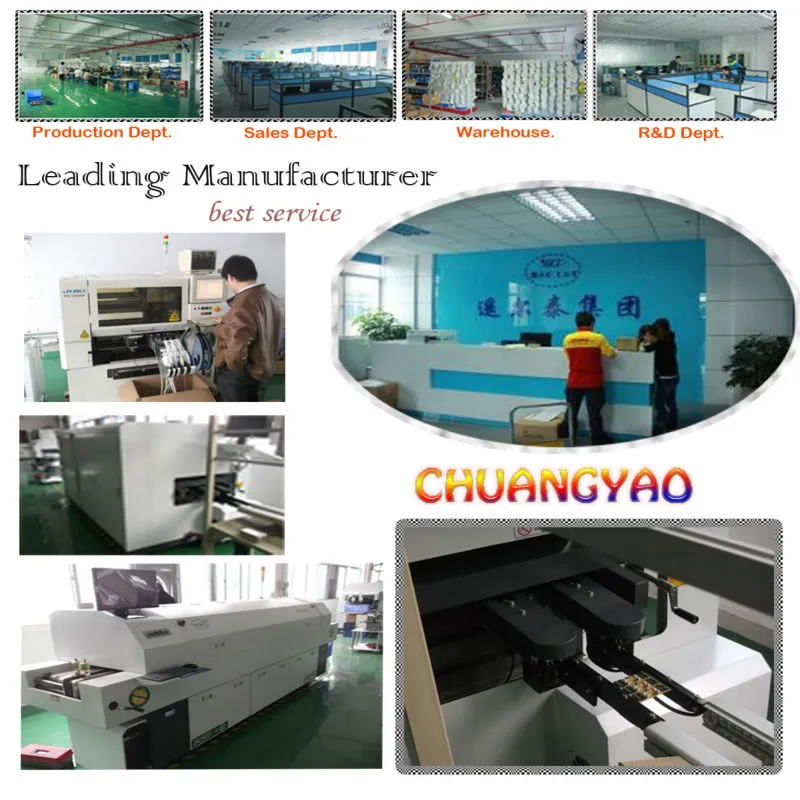

Established in 2005, Shenzhen Yaoertai Technological Development Co.,Ltd is professional and experienced manufacturer and exporter of remote control, controller, photocell and WiFi smart home systems. YET is commit ted to becoming the top brand in this field.Experienced and excellent R&D team can offer the advanced and mature design projects. OEM and ODM are available to meet all customers’ demand.YET is located on Shenzhen, with convenient transportation. All of YET products comply with international quality standard and are well received in international market. Our products are all certificated with CE, RoHS, ISO9001. YET’s monthly production capacity is over 400,000pcs.
