Nice Price Loop Detector Vehicle Traffic Counter Sensor Wireless Sensor for Access Control with High Quality
- Multi-Voltage Vehicle Loop Detector makes it simple to manage your stock.
- Eco-friendly with the low current draw (Low power consumption)
- 3 sensitivity settings allow for fine adjustment levels (easy to set)
- Strong anti-jamming ability and stability
ILD110 Single Loop Detector Function&feature
Vehicle Loop Detector is a ring for a single induction coil buried digital intelligent metal detector is mainly used to detect
- Two-way output relays
- Multi-voltage (12VDC to 220VAC) Vehicle Loop Detector
- 3 grande to adjust the sensitivity (low, medium, high )
- For counting vehicles
- Safe-guarding accessways
- For controlling door
- Gate drive mechanisms,

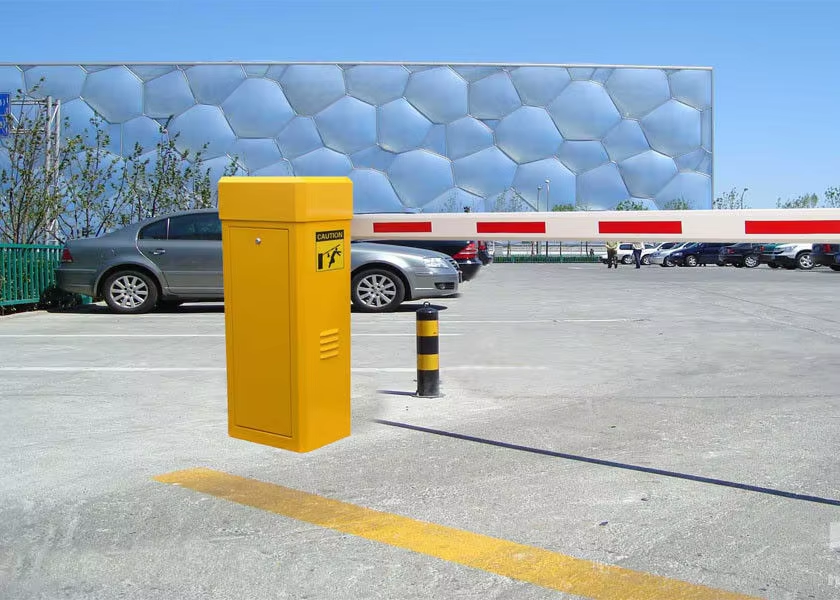

- Operating barriers
- Activating card dispensers in parking lots.

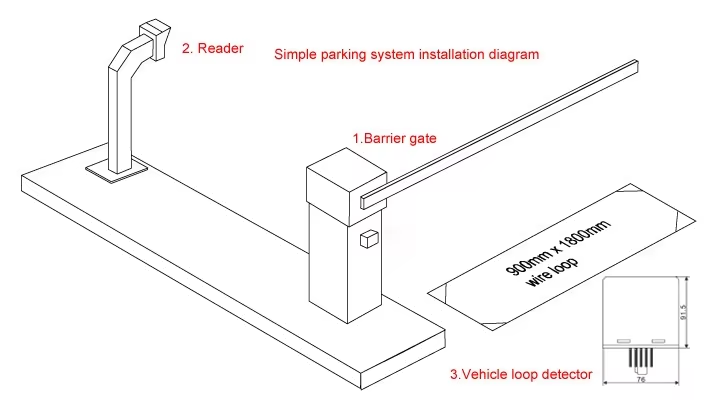

- Parking system
Product Name | IVD110 Single Loop Detector |
Dimension | 113*74*37mm (L*W*H) |
Supply voltage | 12V AC/DC ±5% 24V AC/DC ±5% |
Frequency range | 20 kHz to 170 kHz |

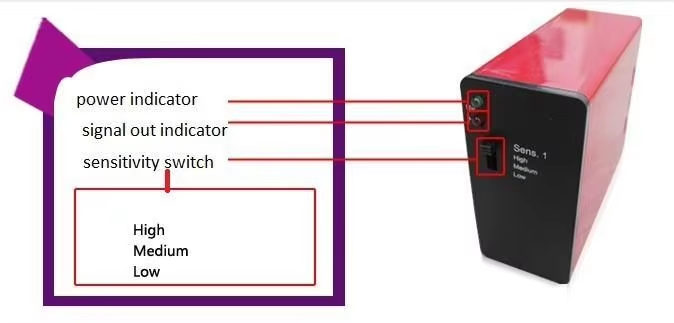

Sensitivity range | 3 grades adjustable (high, medium, low) |
Reaction time | 100ms |
Output | Two-way output relays |
Operating temp | -30℃ to +70℃ |
Storage temp | -40℃ to +85℃ |
Loop inductance | Ideal 100μH to 300μH (include connecting wiring) Max 50μH—1000μH (include connecting wiring) |
Loop connection wiring | < 100 meters,twisted at least 20 times per meter |
Net Weight | 269g |
