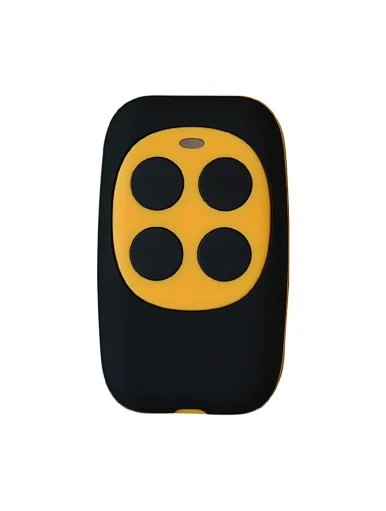

433.92MHZ fixed /learning/rolling code open code barrier door gate garage door remote control duplicator D4

YET2144-D4

minimum order

1 piece

Quantity

Contact Now

Brand Name:YET
Model Number:YET2144-D4 remote control duplicator
Color:Black, Green, Yellow, Red, Blue
Place of Origin:Guangdong, China
Material:ABS
Code:Copy Code Optional
Button:4 Buttons gate remote control
Function:Automatic, garage door remote control
working frequency:433mhz/315mhz optional
Dimension:65.5x38.5x14mm
Voltage:DC6V
model number:YET2144-D4
Working current:<=12mA
Transmission distance:50-100m
Chip Code:remote control duplicator, copy by face to face
key words:433 gate remote control
Materail:ABS
Certification:CE,ROHS, ce

Product

433.92MHZ fixed code learning code rolling code open code barrier door gate garage door remote control duplicator D4

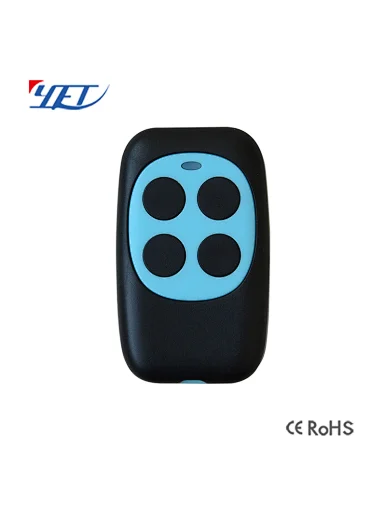

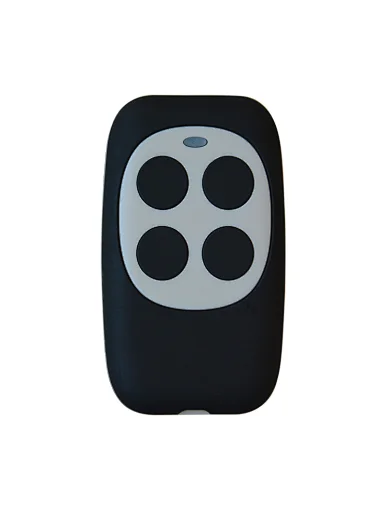

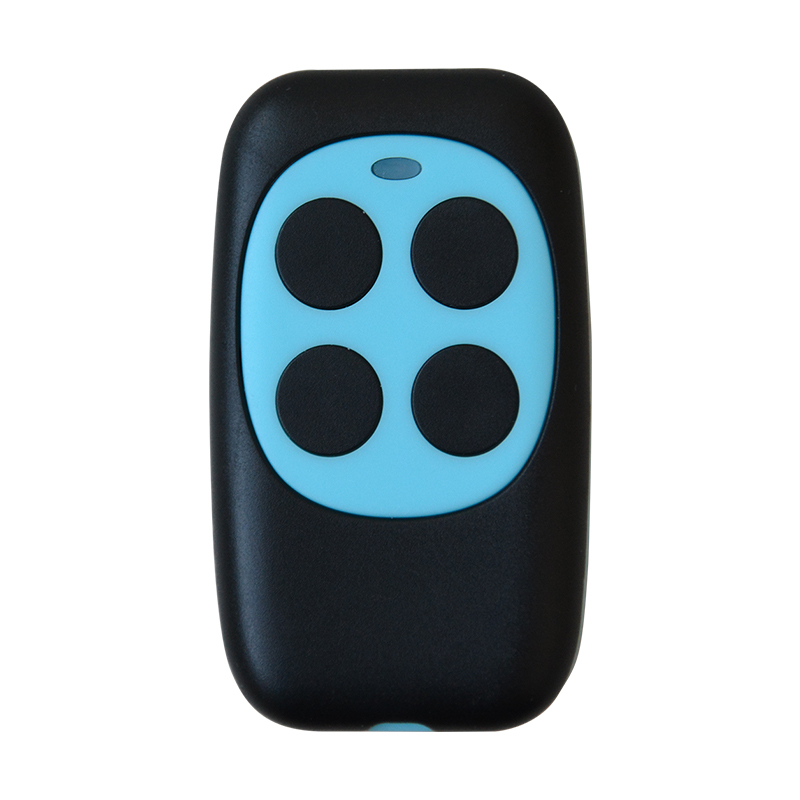

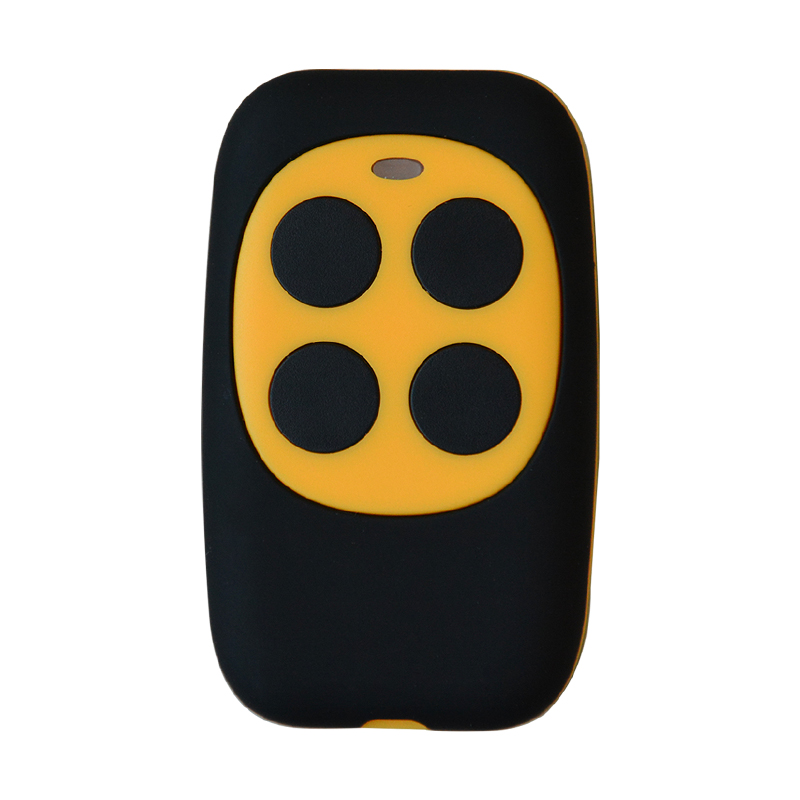

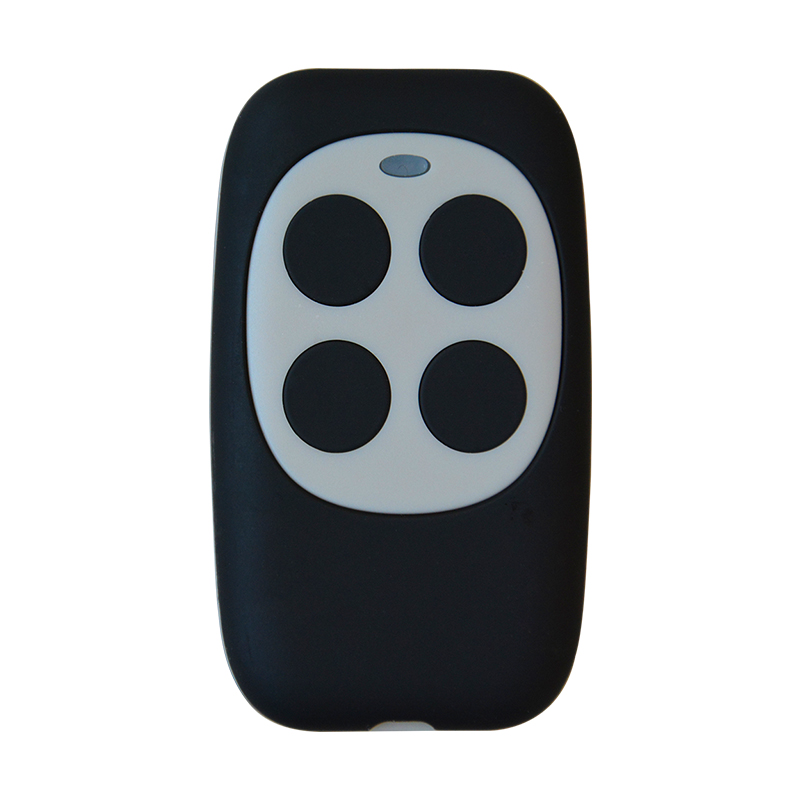

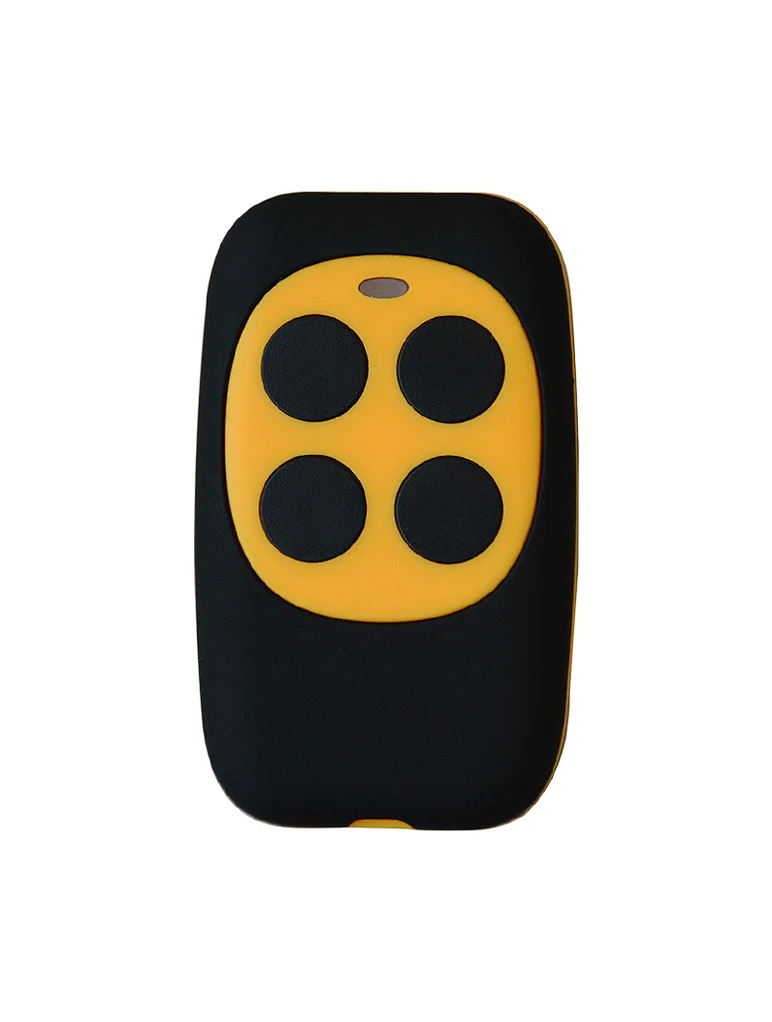

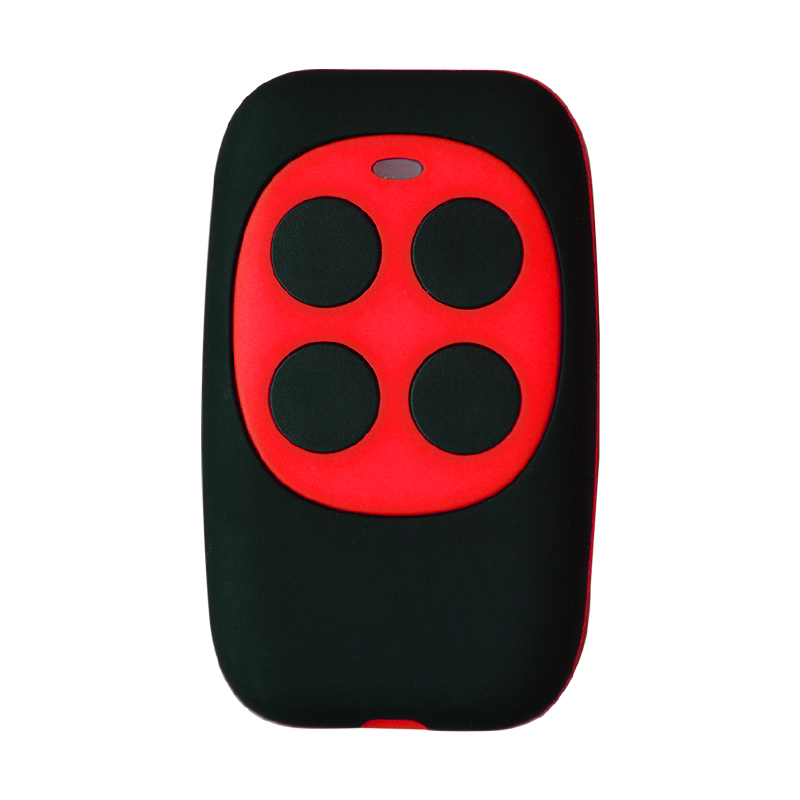

Product picture

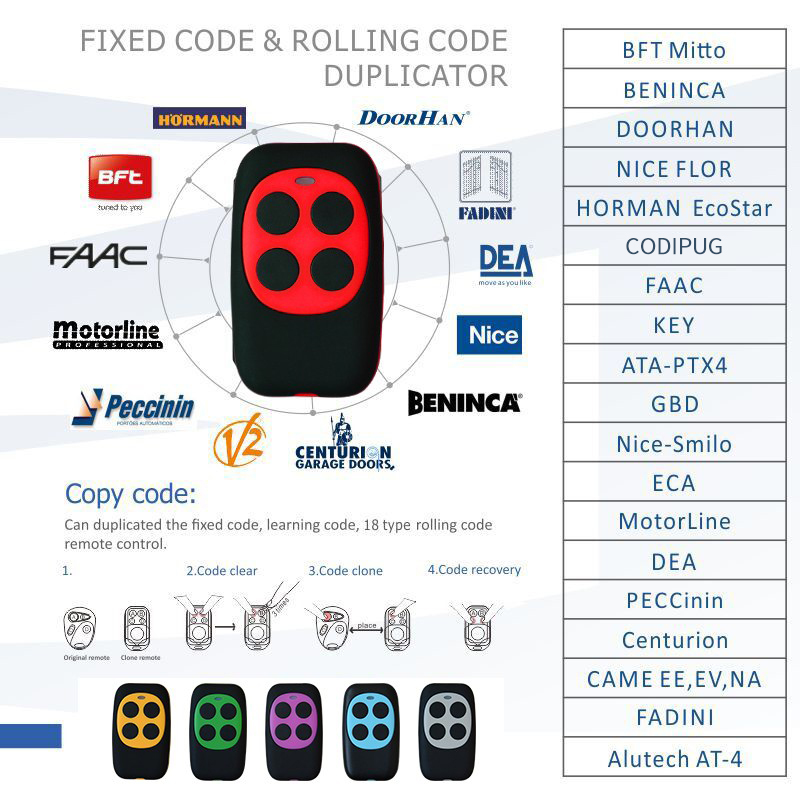

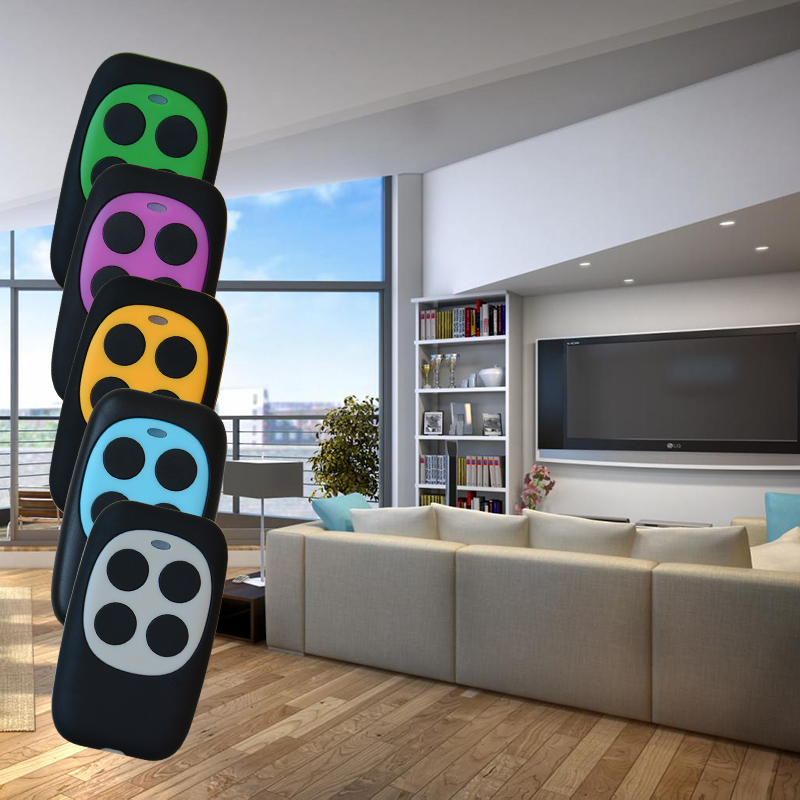

remote control duplicator

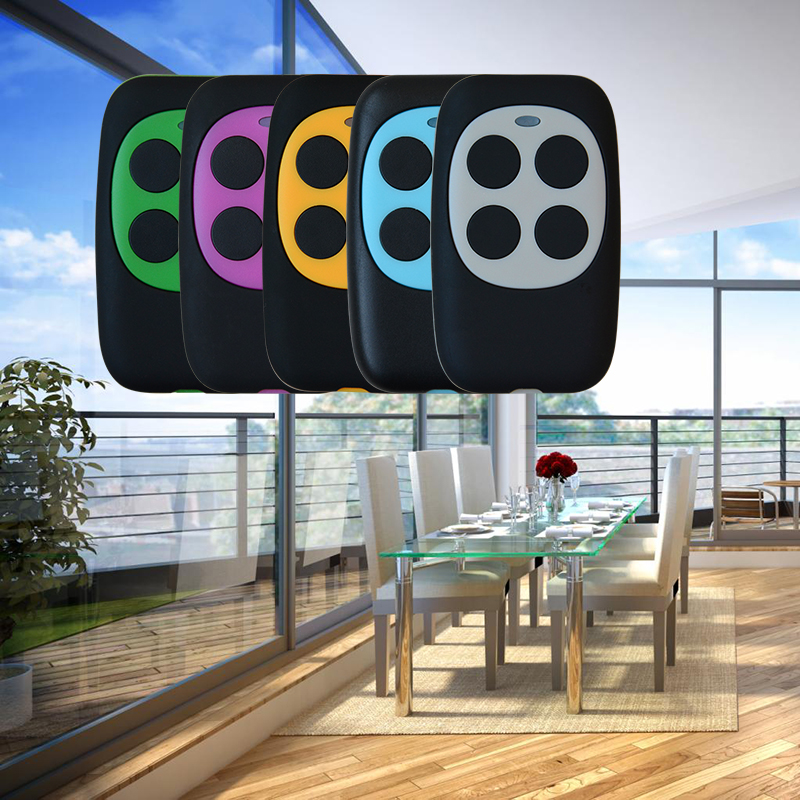

wireless remote control switch 433mhz remote control duplicate remote control

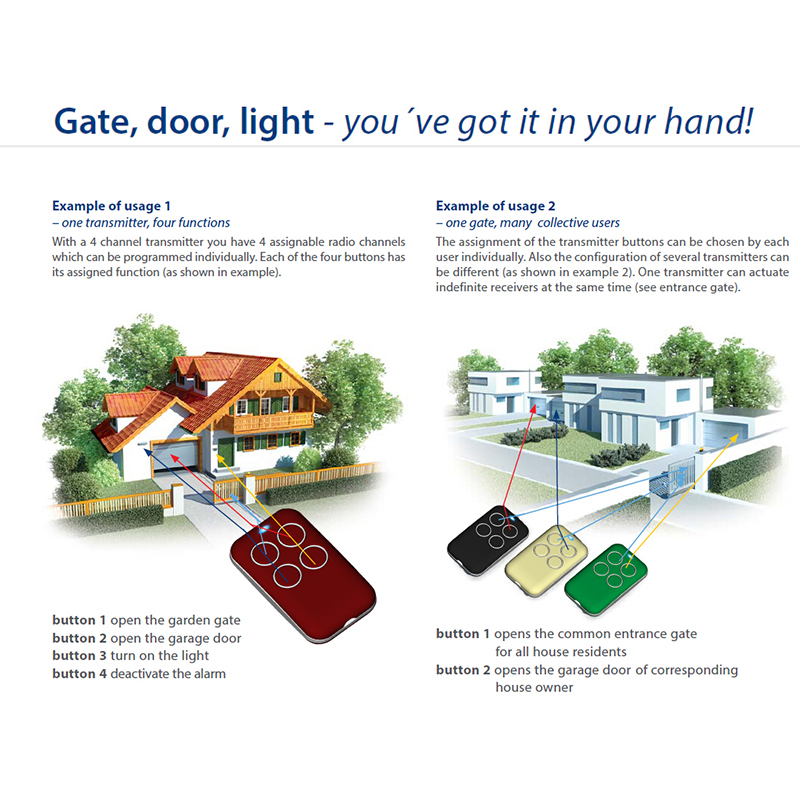

auto gate remote control

How to operate ? please kindly check following

1. While pressing the button 1 of the remote control duplicator? at the same time press 4 times the 2 button.

2. Release both buttons. Now the duplicator RED LED emits a short flash every 2 seconds.

3. Place the original gate remote control to be programmed in front of the duplicator? at about 5 cm of distance (as shown in the picture).

4. Press and retain pressed the button of the original gate remote control and wait for a change flash (as a faster flash) of duplicator RED LED and a change of its color (BLUE) that confirms the correct learning of code. This step may take a few seconds and during that the color LED is RED.

5. While the BLUE LED is flashing, press the button of the duplicator?where you want to program the code just learnt, and retain pressed until the LED switches off and an extended sound"BEEP"for a reconfirmation of the correct code learning. This step may take some seconds.

6. The copy has been happened with success. Now check on the automation the correct

functioning of the new duplicator remote control.

Notes:

If the RED LED flashes only 3 times (of RED color) and switches off, the code has not learnt correctly. Please repeat the operation from the step 1.

The duplicator memory is completely re-writable.

To duplicate further buttons of duplicator, please repeat the operation from the step 1.

Use range

smart home sysytem

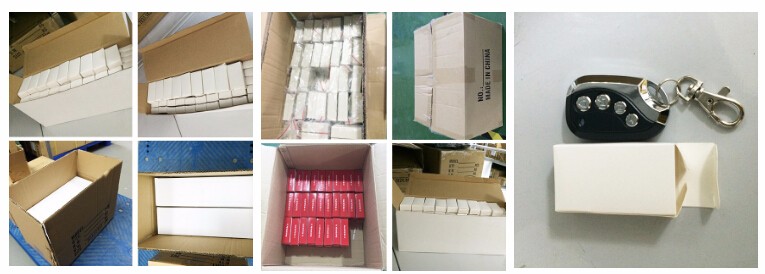

Packaging

For order

1.Accept OEM.

2.Print logo on the case and package

3.Payment Details :30%deposit,70%balance before shipment.Payment accept T/T and western union optional.

4.Minimum Order:100 pcs(accept trial order)

5.Delivery Details:within two weeks.
