• Brand Name:YET
• Model Number:YET402PC-V2.0 wireless transmitter and receiver
• Color:Gray
• Place of Origin:Guangdong, China
• Material:ABS
• Code:Rolling Code, Fixed Code, learning code remote control switch
• Function:external receiver for door/gate/barrier
• name:On off wireless controller,2ch receiver High power LED Light control
• Operating voltage:9V-25V
• Static operating current:≤6mA
• Receive sensitivity:≥-105dBm
• transmitting frequency:315/433.92/others
• Working temperature:-40°C- +80°C
• Output current:≤10A
• Size:74.5*4.5*7mm
• Output Voltage:AC and DC optional
• Certification:ce

On off wireless controller,2ch wireless transmitter and receiver high power LED Light control CY402PC

It's learning type and can store 400 PCS of differents remote control switch.Its input voltage adopts 9V-25VDC (can be choose on the board). It can match with our 1/2/3 buttons of gate remote control as a complete subassembly to implement the motor F/R (forward or reverse) rotation or switch on/off shift of equipment controlled.

It is widely used in industrial control, garage door, dumpcart, lift, light control etc.

Can identifyHS1527,PT2262,HCS301,HS2240,etc

1.Application

1)garage door

2)automatic door&windows

3)led &light

4)car alarm

5)home alarm

6)roller shutter&curtain

7)parking gate&auto gate

8)industrial control

2. Main techData:

I.Overview

YET402PC-V2.0, the two-way wireless transmitter and receiver controller is designed and manufactured by our company, which output Switching Quantity Signal for 2 relay and control the equipment to realize turn, turn over or switch on/off/change or kinds of special control program requirements. It's mainly used in electric doors, windows, lifting equipment, gateways, lifting devices, industrial control and security industry and other fields.

The wireless receiving garage door controller, with high security, storage capacity, stable performance, low power consumption, easy to use, do without using the traditional jumper or DIP switch code, simply receive and store wireless signal launched by remote control switch to achieve matching. If you lose the learned remote control switch, simply clear/delete the deposited receiver control information so that the lost gate remote control is prohibited to control the receiver controller. It can be used only on the condition that the owner re-learning the controller.

II.Output

A. signal inter-locking ----connect CN2 and disconnect CN3

B. signal non-locking---- disconnect CN2 and connect CN3

C. signal self-locking---- disconnect CN2 and CN3

III.Learning method and steps

1. pressing the learn key on receiver board - lights that enter the learning state,

2. at the same time, press any key on gate remote control-lights flash to off that have success in learning .

IV.PROGRAMMING:

V.Technical indicators

1. Operating voltage: 9V-25V

2. Static operating current: ≤6mA

3. Working temperature:-40°C- +80°

4. Receive sensitivity: ≥-105dBm

5. The working frequency: 315MHz, 433MHz

6. Output Voltage: AC and DC optional

7.Keelog rolling code

8.Maximum storage: 400 codes

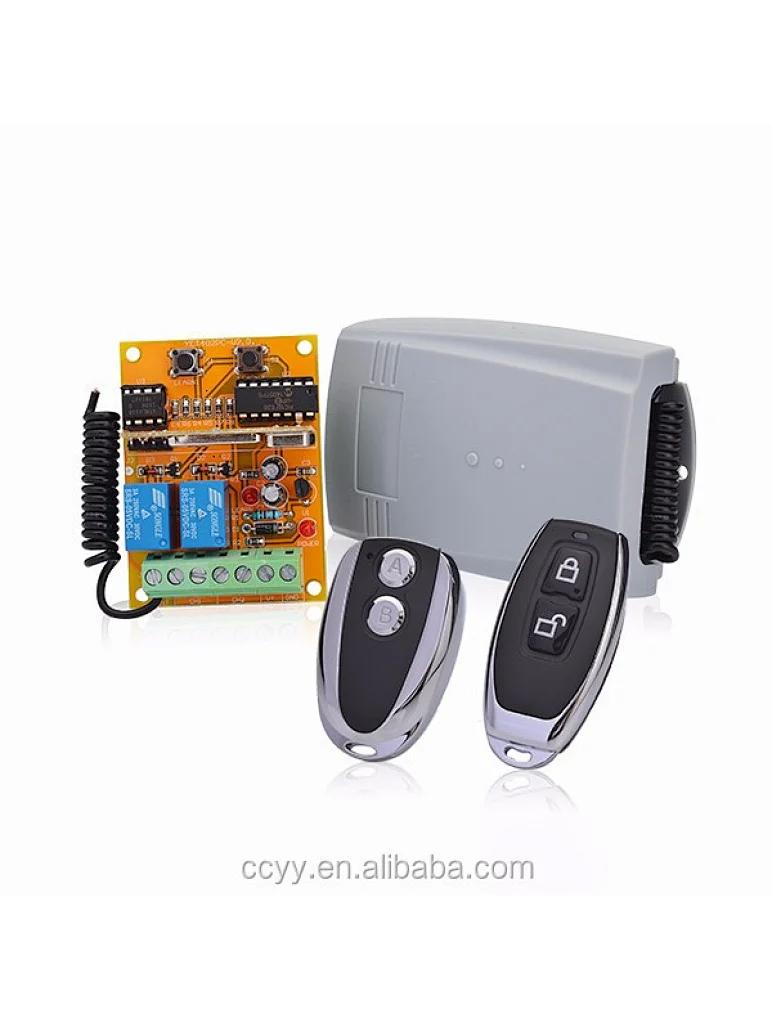

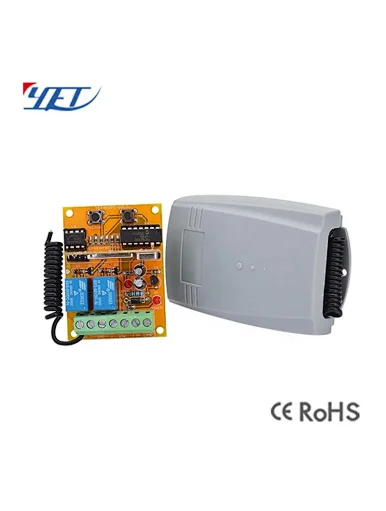

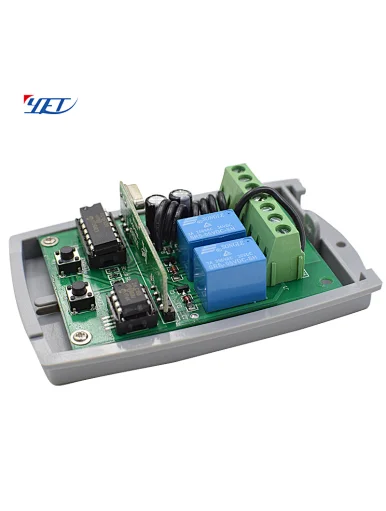

3.Picture
